TRANSMISSION/CHANGE DRUM
F3 BUSHWACKER 1970 AR USA

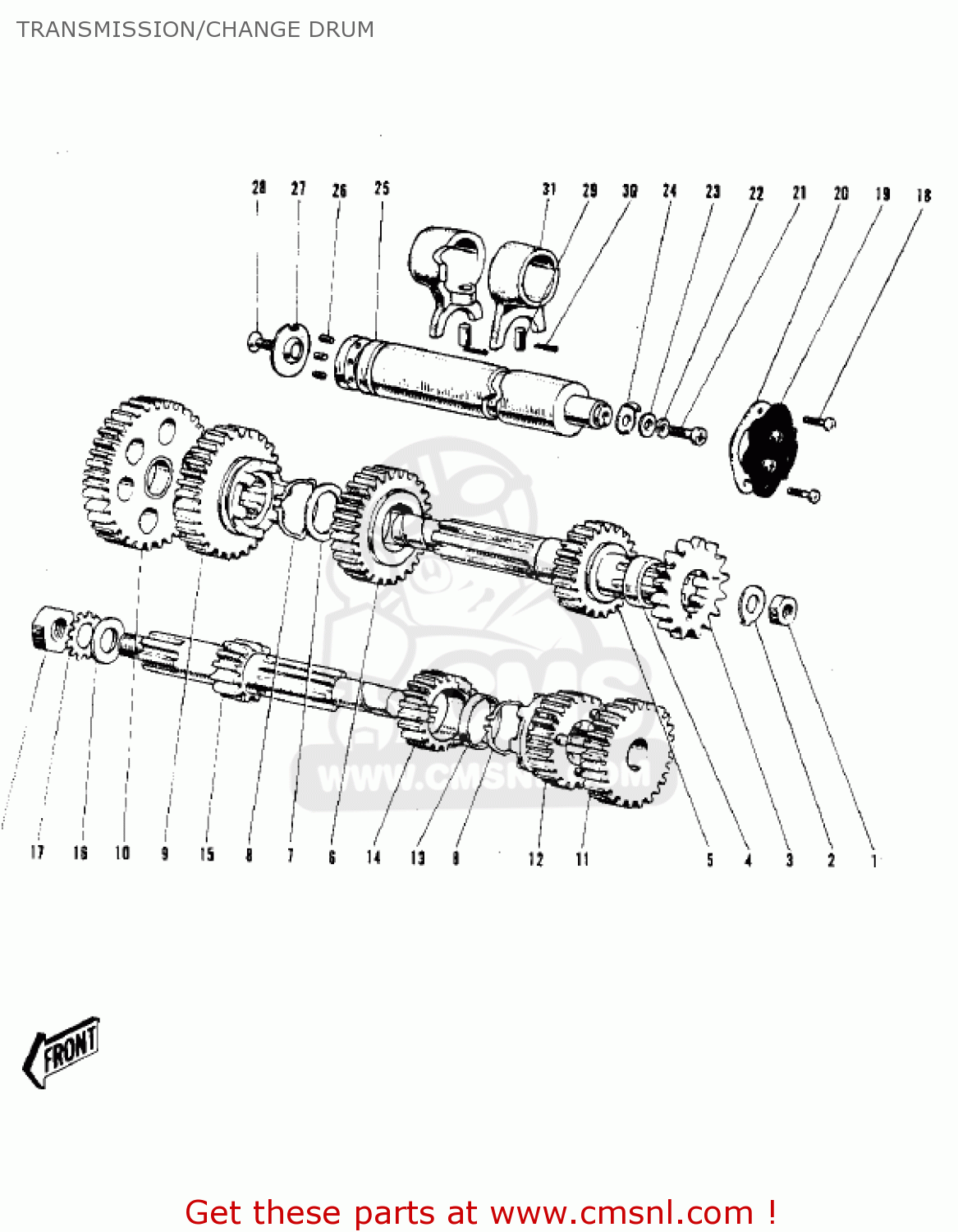

Transmission/change drum diagram F3 BUSHWACKER 1970 AR USA
TRANSMISSION/CHANGE DRUM F3 BUSHWACKER 1970 AR USA
×
prices are in EUR
ref
part #
description
quantity
1
92016024
ref: 1
NUT,12MM
€ 3.50
1
92016024
ref: 1
NUT,12MM
€ 3.50
2
92024002
ref: 2
WASHER,CLAW,12.5X30X0
€ 3.50
3
13144016
ref: 3
STD
ENGINE SPROCKET,16T
€ 32.50
3
13144004
ref: 3
OPTION
ENGINE SPROCKET,14T
€ 64.00
4
92027009
ref: 4
SPACER-ENG SPROCKET
€ 12.50
4
920271595
ref: 4
COLLAR,ENGINE SPROCKE
€ 12.50
5
13128014
ref: 5
27T
OUTPUT SHAFT
€ 151.50
6
13133002
ref: 6
30T
GEAR,OUTPUT 3RD,30T
€ 79.00
7
92022106
ref: 7
WASHER,22.5X30X1
€ 2.50
8
92033025
ref: 8
CIRCLIP,25MM
€ 3.00
8
92033025
ref: 8
CIRCLIP,25MM
€ 3.00
9
132601076
ref: 9
34T
GEAR,OUTPUT SHAFT,2ND
€ 81.00
10
13129008
ref: 10
40T
GEAR,OUTPUT LOW,40T
€ 123.50
11
13136015
ref: 11
27T
TOP GEAR DRIVESHAFT
€ 58.00
12
132601199
ref: 12
25T
TRANSMISSION SPUR GEAR
€ 81.50
13
92027083
ref: 13
DRIVESHAFT SPACER,2ND GEAR
€ 8.00
14
13130004
ref: 14
21T
GEAR,INPUT 2ND,21T
€ 79.00
15
13127006
ref: 15
15T
SHAFT-DRIVE
€ 87.00
16
92022105
ref: 16
WASHER,12.5X30X0.8
€ 3.00
17
464H1200
ref: 17
WASHER-TOOTHED,12MM
€ 2.00
18
220B0516
ref: 18
SCREW-PAN-CROS
€ 2.50
18
220B0516A
ref: 18
I.S.O. THREAD
SCREW-PAN HEAD,5X16
€ 2.50
19
131511003
ref: 19
SWITCH, NEUTRAL
€ 16.50
19
131511003
ref: 19
SWITCH, NEUTRAL
€ 16.50
20
13146002
ref: 20
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
20
13146002
ref: 20
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
21
92011003
ref: 21
SCREW PAN HEAD 6X16
€ 2.50
21
220B0616
ref: 21
SCREW-PAN HEAD,6X16
€ 2.50
22
461F0600
ref: 22
WASHER-SPRING,6MM
€ 0.50
23
410B0600
ref: 23
WASHER-PLAIN-SMALL,6M
€ 0.50
24
210071003
ref: 24
ROTOR,TOP & NEUTRAL
€ 4.50
24
210071003
ref: 24
ROTOR,TOP & NEUTRAL
€ 4.50
25
13141014
ref: 25
GEAR CHANGE DRUM
€ 103.00
26
92043011
ref: 26
GEAR CHANGE DRUM PIN
€ 7.50
27
13142002
ref: 27
HOLDER,CHANGE DRUM PI
€ 4.00
28
212B0616
ref: 28
SCREW-CNTSNK HD,6X16
€ 2.00
29
92043005
ref: 29
PIN,DOWEL,8X15
€ 4.50
30
550D3020
ref: 30
PIN-COTTER,3.0X20
€ 2.00
31
13140015
ref: 31
FORK SELECTOR
€ 0.00
31
13140020
ref: 31
SELECTOR FORK
€ 107.00
