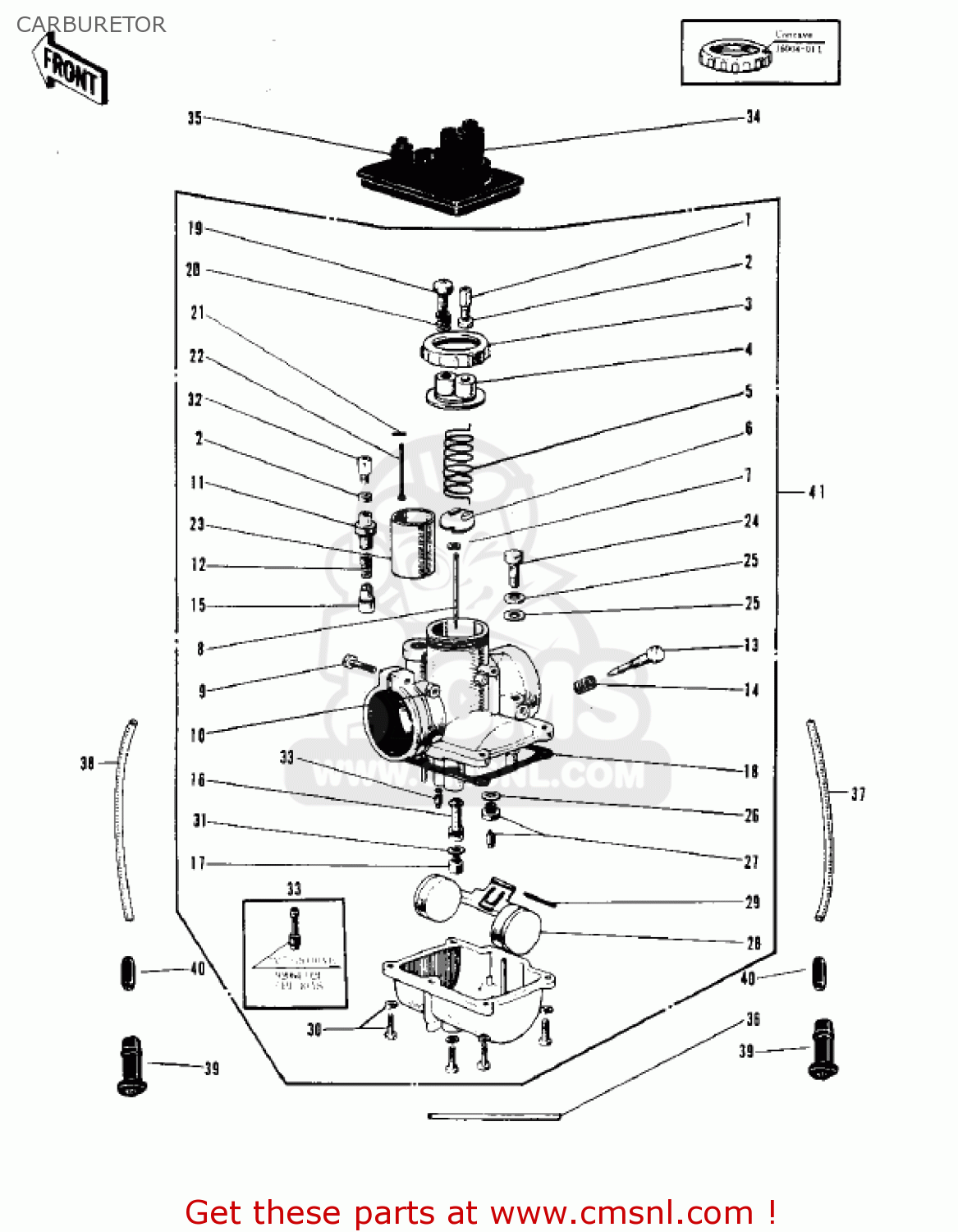

CARBURETOR

ref

part #

description

quantity

1

16002002
ref: 1

ADJUSTER-CABLE,STARTE

€ 8.00

2

16003004
ref: 2

NUT-CABLE ADJUST LOCK

€ 4.50

3

16004008
ref: 3
WHITWORTH THREAD

CAP-MIXING CHAMBER

€ 3.00

3

16004011
ref: 3
METRIC THREAD

CAP-MIXING CHAMBER

€ 6.00

4

16005013
ref: 4

TOP-MIXING CHAMBER

€ 3.00

5

16006010
ref: 5

SPRING-THROTTLE VALVE

€ 4.50

6

16007011
ref: 6

THROTTLE VALVE SPRING SEAT

€ 6.50

7

16008010
ref: 7

CLAMP,E-TYPE

€ 5.00

8

16009012
ref: 8

JET NEEDLE 4J13

€ 5.50

9

16010004
ref: 9

SCREW-CLAMP

€ 3.50

10

311B0600
ref: 10

NUT,6MM

€ 0.50

11

16012006
ref: 11

CAP-STARTER PLUNGER

€ 3.50

12

16013005
ref: 12

SPRING-STARTER PLUNG

€ 3.00

13

16014003
ref: 13

SCREW-PILOT AIR

€ 17.00

14

16022010
ref: 14

SPRING,THROTTLE ADJST

€ 4.50

15

16016002
ref: 15

PLUNGER,STARTER

€ 20.00

16

16017019
ref: 16

JET,NEEDLE,#N-6

€ 33.50

17

92063021
ref: 17
STD

JET-MAIN,#190

€ 9.50

17

92063019
ref: 17

JET-MAIN,#170

€ 9.50

17

92063020
ref: 17

JET-MAIN,#180

€ 9.50

17

92063022
ref: 17

JET-MAIN,#200

€ 9.50

17

92063023
ref: 17

JET-MAIN,#210

€ 9.50

18

16019010
ref: 18

GASKET-FLOAT CHAMBER (NAS)

€ 4.00

19

16021002
ref: 19

SCREW-THROTTLE STOP

€ 12.00

20

16022005
ref: 20

SPRING-THR STOP SCREW

€ 5.50

21

16023001
ref: 21

COTTER PIN

€ 1.50

22

16024004
ref: 22

ROD-THROTTLE VLV STOP

€ 1.50

23

16025015
ref: 23

THROTTLE VALVE,CA2.0

€ 56.50

24

92001014
ref: 24

BOLT-BANJO

€ 11.50

25

751P0800
ref: 25

GASKET,8MM

€ 1.00

26

16029004
ref: 26

WASHER-FLOAT VLV SEAT

€ 2.50

27

16030005
ref: 27

VALVE-FLOAT,2.5

€ 43.00

28

16031010
ref: 28

FLOAT

€ 16.50

29

16032003
ref: 29

FLOAT PIN

€ 4.00

30

16033008
ref: 30

SCREW-FLOAT CHAMBER

€ 1.00

30

16033009
ref: 30
ISO

SCREW-FLOAT CHAMBER

€ 0.50

31

16034001
ref: 31

WASHER-MAIN JET

€ 2.50

32

16002005
ref: 32

CABLE ADJUSTER

€ 4.00

33

92064005
ref: 33
J.I.S.

JET,PILOT,#40

€ 35.00

33

92064024
ref: 33
I.S.O.

JET-PILOT,#40

€ 14.00

34

14038011
ref: 34

GROMMET-CARBRETOR CAP

€ 2.50

35

14038014
ref: 35

CARBURETOR CAP

€ 8.00

36

92059023
ref: 36
-E/NO. 05037

FUEL OVERFLOW PIPE

€ 1.50

36

92059031
ref: 36
E/NO. 05038-

PIPE-FUEL OVERFLOW

€ 1.50

37

92059038
ref: 37
E/NO. 05038-

AIR VENT PIPE,A

€ 4.50

38

92059038
ref: 38
E/NO. 05038-

AIR VENT PIPE,A

€ 4.50

39

16136002
ref: 39

FUEL OVERFLOW GUIDE

€ 8.00

40

92098001
ref: 40

PIPE

€ 1.50

41

16001054
ref: 41
VM26SC

CARBURETOR ASSY

€ 115.00
