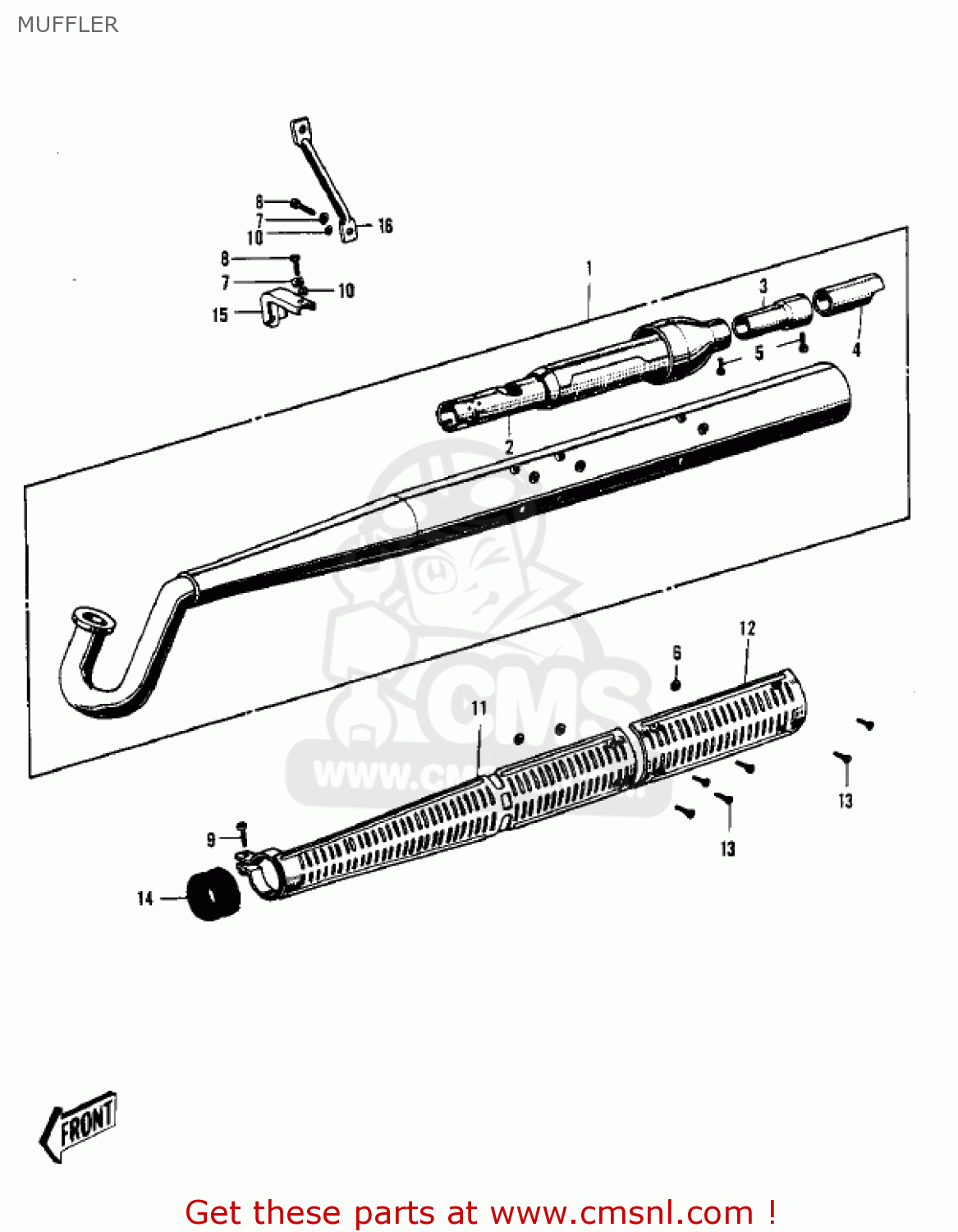

MUFFLER

ref

part #

description

quantity

1

18002027
ref: 1

MUFFLER ASSEMBLY

€ 358.00

2

18033018
ref: 2

SPARK ARRESTOR COMP

€ 15.00

3

18033039
ref: 3

BAFFLE TUBE

€ 147.00

4

18048006
ref: 4

TAIL PIECE

€ 10.00

5

112G0610
ref: 5

BOLT,6X10

€ 0.50

6

18065001
ref: 6

INSULATOR

€ 1.50

7

461F0800
ref: 7

WASHER-SPRING,8MM

€ 0.50

7

461F0800
ref: 7

WASHER-SPRING,8MM

€ 0.50

8

115G0816
ref: 8

BOLT-HEX,HEAD 8X16

€ 0.50

9

220B0620
ref: 9

SCREW-PAN HEAD,6X20

€ 2.50

10

410B0800
ref: 10

WASHER-PLAIN-SMALL,8M

€ 0.50

11

18057011
ref: 11

MUFFLER COVER,FRONT

€ 43.50

12

18057019
ref: 12

MUFFLER COVER,REAR

€ 22.00

13

221E0610
ref: 13

SCREW-CNTSNK HD,6X10

€ 2.50

14

18061014
ref: 14

MUFFLER COVER SPACER

€ 6.50

15

18061015
ref: 15

MUFFLER BRACKET,FRONT

€ 9.50

16

18061016
ref: 16

MUFFLER BRACKET,REAR

€ 17.00
