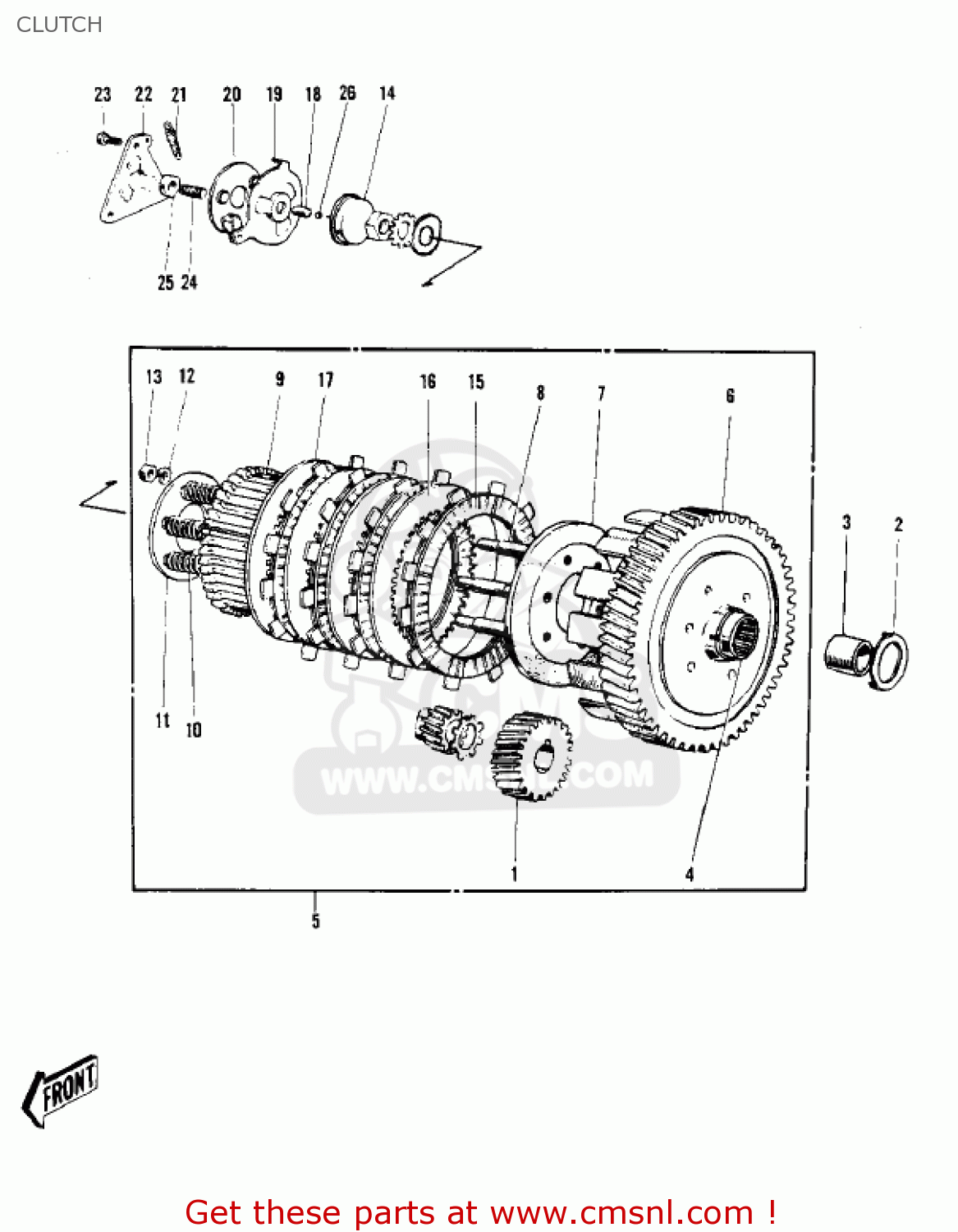

CLUTCH

ref

part #

description

quantity

1

13121005
ref: 1

PRIMARY PINION

€ 83.50

2

92026004
ref: 2

THRUST WASHER 5MM

€ 10.50

3

13125002
ref: 3

CLUTCH BUSHING

€ 23.50

4

92046012
ref: 4

CLUTCH NEEDLE BEARING

€ 16.50

5

13081017
ref: 5

CLUTCH ASSY

€ 102.50

6

13096003
ref: 6

CLUTCH HOUSING

€ 194.00

7

13086002
ref: 7

CLUTCH BASE

€ 31.50

8

92006001
ref: 8

CLUTCH BASE STUD

€ 3.00

9

13087003
ref: 9

HUB-CLUTCH

€ 105.50

9

13087037
ref: 9

HUB-CLUTCH

€ 105.50

10

92081019
ref: 10

CLUTCH SPRING

€ 11.50

11

13091001
ref: 11

CLUTCH SPRING,PLATE

€ 12.00

12

461F0800
ref: 12

WASHER-SPRING,8MM

€ 0.50

12

461F0800
ref: 12

WASHER-SPRING,8MM

€ 0.50

13

312B0800
ref: 13

NUT,8MM

€ 0.50

14

13113002
ref: 14

PUSHER-COMP-CLUTCH

€ 10.50

15

130881104
ref: 15

PLATE-FRICTION (NAS)

€ 12.50

16

13089003
ref: 16

PLATE-CLUTCH,STEEL (NAS)

€ 7.50

17

13090002
ref: 17

PLATE-CLUTCH OUTER (NAS)

€ 4.50

18

610A0710
ref: 18

ROLLER,7X10

€ 4.50

19

13102003
ref: 19

CLUTCH RELEASE PLATE ASSEMBLY

€ 17.50

20

13110003
ref: 20

THRUST BALL ASSY,CLUT

€ 7.50

21

92083011
ref: 21

SPRING-GEAR CHNG LEV

€ 3.50

22

13119003
ref: 22

CAM-RELEASE,CLUTCH

€ 8.00

23

220B0612
ref: 23

SCREW-PAN HEAD,6X12

€ 1.00

24

291Z0622
ref: 24

SCREW-SLOTTED,6X22

€ 5.50

25

312B0600
ref: 25

NUT,6MM

€ 0.50

26

600A1000
ref: 26

BALL-STEEL,5/16

€ 0.50

all assemblies
