FRONT FORK ('70)
F3 BUSHWACKER 1970 AR USA

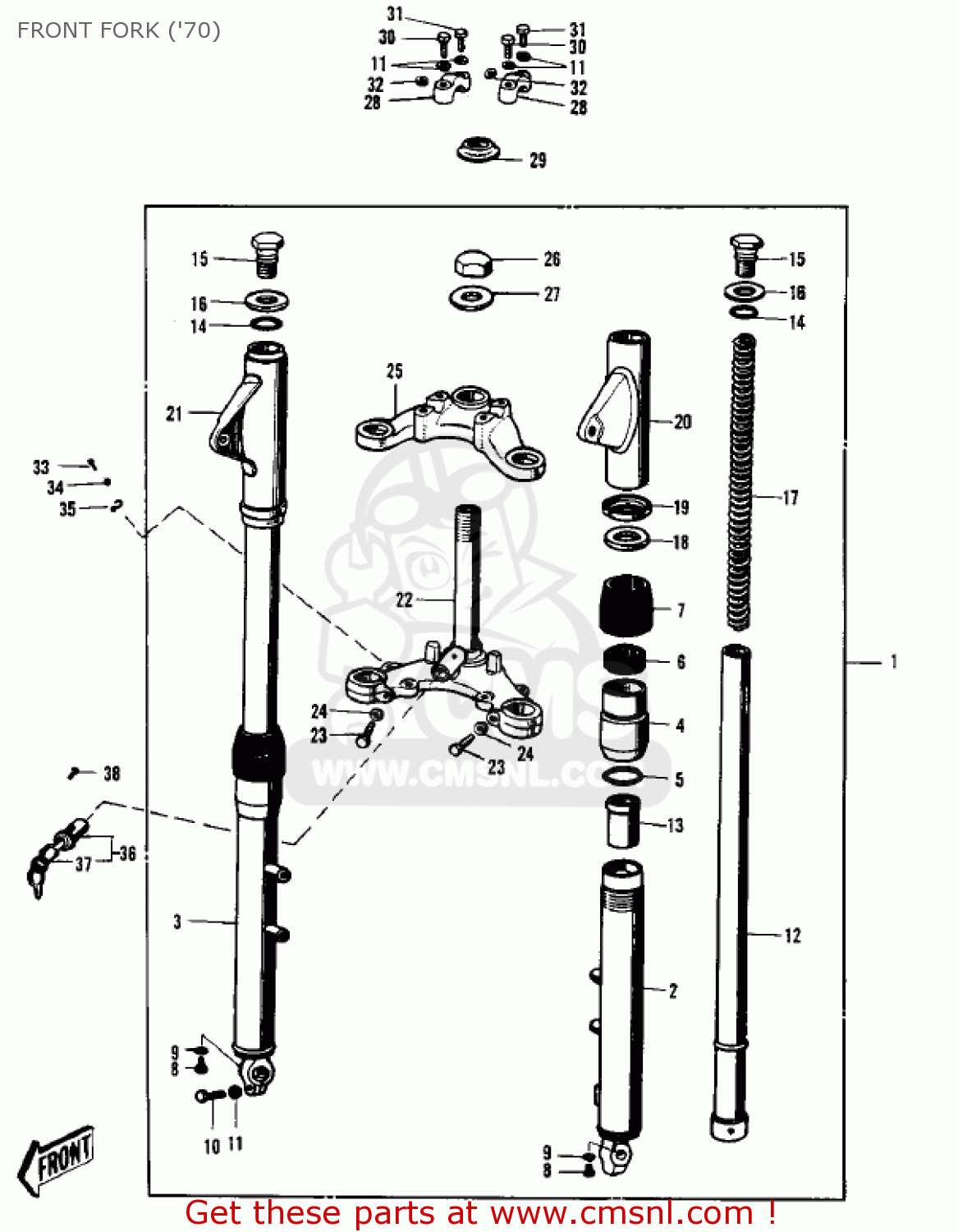

Front fork ('70) diagram F3 BUSHWACKER 1970 AR USA
FRONT FORK ('70) F3 BUSHWACKER 1970 AR USA
×
prices are in EUR
ref
part #
description
quantity
1
4400105315
ref: 1
FRONT FORK ASSEMBLY,SILVER
€ 1,183.00
2
44005028
ref: 2
FORK OUTER TUBE,LH
€ 233.50
3
44006027
ref: 3
FORK OUTER TUBE,RH
€ 259.00
4
44007007
ref: 4
NUT-FORK OUTER TUBE
€ 41.50
5
44046012
ref: 5
RING-O,OUTER PIPE
€ 4.00
6
920491049
ref: 6
SEAL-OIL
€ 14.50
7
44010006
ref: 7
SEAL,FORK
€ 24.00
8
220B0408
ref: 8
SCREW-PAN-CROS
€ 0.50
9
44045002
ref: 9
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
10
115G0825
ref: 10
BOLT-HEX,HEAD,8X25
€ 3.00
11
461F0800
ref: 11
WASHER-SPRING,8MM
€ 0.50
12
44013021
ref: 12
FORK INNER TUBE
€ 243.50
13
44015012
ref: 13
FORK INNER TUBE GUIDE
€ 22.00
14
44046014
ref: 14
'O' RING-INNER TUBE
€ 4.00
15
44041022
ref: 15
BOLT,FORK TOP
€ 50.00
16
44043040
ref: 16
FORK TOP WASHER
€ 4.50
17
44026027
ref: 17
FORK SPRING
€ 52.50
18
44045012
ref: 18
GASKET,FORK COVER (NAS)
€ 3.00
19
44043035
ref: 19
FORK COVER WASHER
€ 17.00
20
4403302915
ref: 20
FORK COVER,LH,SILVER
€ 62.50
21
4403402815
ref: 21
FORK COVER,RH,SILVER
€ 62.50
22
44037021
ref: 22
STEERING STEM
€ 243.00
23
113B1032
ref: 23
BOLT-HEX HEAD,10X32
€ 3.50
24
461F1000
ref: 24
WASHER-SPRING,10MM
€ 0.50
25
44039031
ref: 25
STEERING STEM HEAD
€ 197.00
26
44042005
ref: 26
STEERING STEM HEAD NUT
€ 17.50
27
44043013
ref: 27
STEERING STEM WASHER
€ 7.50
28
46012004
ref: 28
HOLDER-UPPER HANDLBAR
€ 14.00
29
92047010
ref: 29
LOWER
CONE-STERNG BERG LOW
€ 10.00
30
110N0845
ref: 30
BOLT-HEX HEAD,8X45
€ 1.50
31
116B0836
ref: 31
UNAVAILABLE IN PRICE BOOK
€ 0.00
32
410D0800
ref: 32
WASHER-PLAIN,8MM
€ 2.00
33
220B0612
ref: 33
SCREW-PAN HEAD,6X12
€ 1.00
34
461F0600
ref: 34
WASHER-SPRING,6MM
€ 0.50
35
92037026
ref: 35
CLAMP-CABLE
€ 0.50
36
27017012
ref: 36
LOCK ASSY STEERING
€ 43.50
37
2700802234
ref: 37
KEY SET,#134
€ 17.00
37
2700802235
ref: 37
KEY SET,#135
€ 18.50
37
2700802236
ref: 37
KEY SET,#136
€ 17.00
38
92099001
ref: 38
SCREW RIVET
€ 2.50
