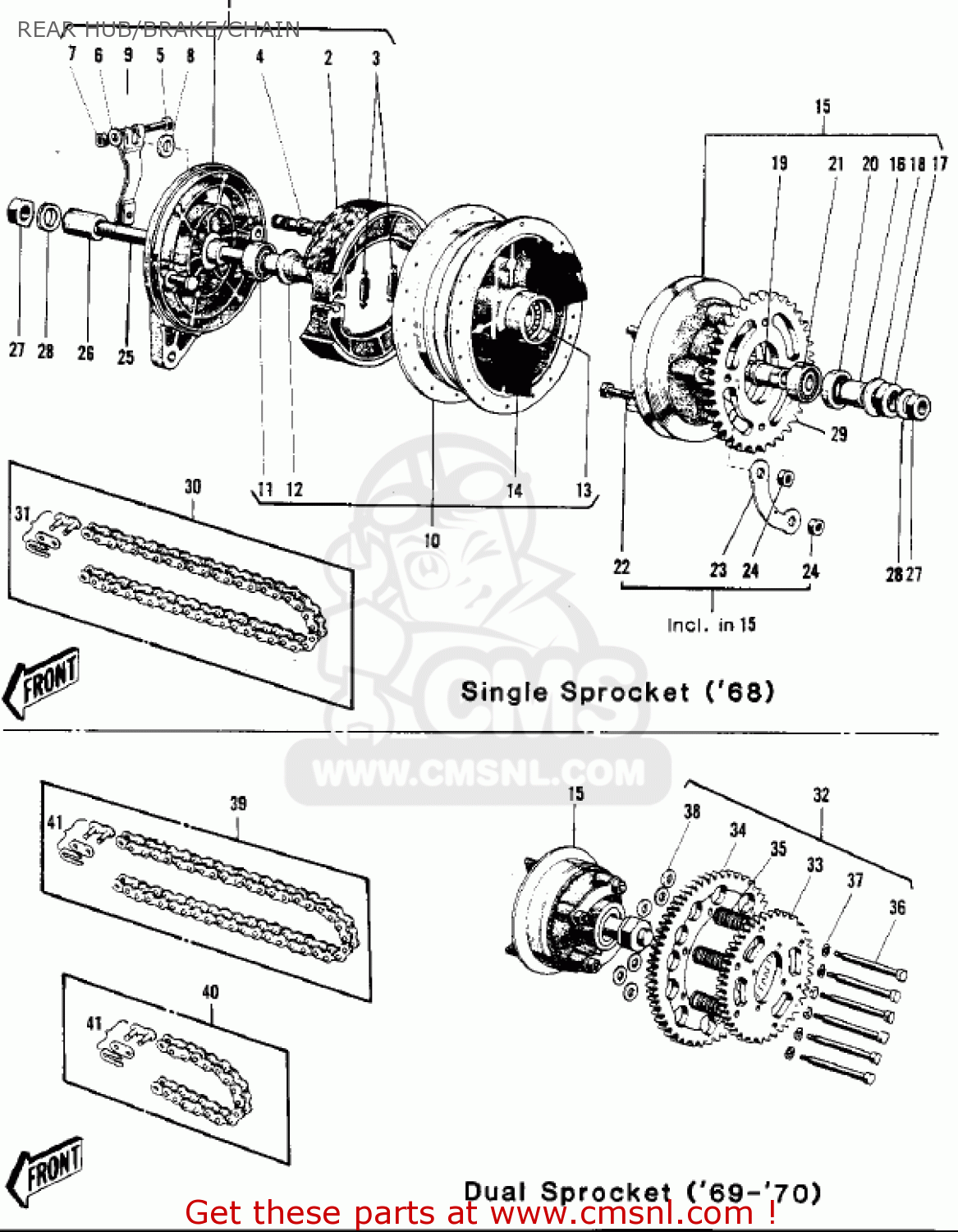

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

4200608080
ref: 1

REAR BRAKE PANEL ASSEMBLY,BUFF

€ 307.00

2

42019011
ref: 2

SHOE,BRAKE (MCA)

€ 18.50

2

42019011
ref: 2

SHOE,BRAKE (MCA)

€ 18.50

3

42020004
ref: 3

SPRING-BRAKE SHOE

€ 5.50

4

42026021
ref: 4

CAM-BRAKE

€ 19.00

4

42026021
ref: 4

CAM-BRAKE

€ 19.00

5

110R0635
ref: 5

BOLT 6X35

€ 3.50

6

410B0600
ref: 6

WASHER-PLAIN-SMALL,6M

€ 0.50

7

311B0600
ref: 7

NUT,6MM

€ 0.50

8

41051001
ref: 8

DUST SHIELD-BRAKE CAM

€ 2.50

9

42029003
ref: 9

LEVER-REAR BRAKE CAM

€ 13.50

10

42005018
ref: 10

DRUM ASSY-REAR BRAKE

€ 214.50

11

601B6202Z
ref: 11

BEARING-BALL,#6202ZC3

€ 13.00

12

42010004
ref: 12

REAR HUB BEARING SPACER

€ 9.50

13

601B6202
ref: 13

BEARING-BALL,#6202C3

€ 14.50

14

42014004
ref: 14

DAMPER-REAR HUB SHOCK

€ 14.50

15

42008009
ref: 15

REAR HUB COUPLING ASSEMBLY

€ 243.00

16

42037002
ref: 16
O.D. = 30 MM

BUSH,RR DRUM OIL SEL

€ 3.00

17

42045015
ref: 17

NUT,20MM

€ 4.50

18

42046003
ref: 18

WASHER,21X33X2.6

€ 2.50

19

42036001
ref: 19

SLEEVE,RR HUB COUPLNG

€ 11.50

20

92050009
ref: 20
O.D. = 42 MM

OIL SEAL-RR BRK DRUM

€ 12.00

21

601B6004
ref: 21

BEARING-BALL,#6004C3

€ 10.50

22

113B1038
ref: 22

BOLT HEX HEAD 10X38

€ 6.00

23

92088005
ref: 23

WASHER,SPROCKET LOCK

€ 4.00

24

314B1000
ref: 24

NUT,10MM

€ 0.50

25

42031016
ref: 25

AXLE-REAR

€ 10.00

26

42032004
ref: 26
O.D. = 25 MM

REAR HUB COLLAR,RH

€ 9.50

27

314B1400
ref: 27

NUT,14MM

€ 1.00

28

42046006
ref: 28

WASHER PLAIN

€ 2.50

28

411B1400
ref: 28

WASHER-PLAIN,14MM

€ 2.50

29

42041040
ref: 29
'68 MODEL W/SINGLE R

REAR SPROCKET,39T

€ 103.00

29

42041025
ref: 29
'68 MODEL W/SINGLE R

REAR SPROCKET,38T

€ 83.00

29

42041005
ref: 29
'68 MODEL W/SINGLE R

REAR SPROCKET 42T

€ 52.00

30

92057033
ref: 30
'68 MODEL W/SINGLE R

DRIVE CHAIN,428X114H

€ 74.50

31

920581015
ref: 31
'68 MODEL W/SINGLE R

JOINT-CHAIN,EK428SH

€ 3.50

32

42040002
ref: 32
'69-'70 MODEL W/DUAL

DUAL SPROCKET ASSEMBLY

€ 241.00

33

42041014
ref: 33
'69-'70 MODEL W/DUAL

REAR SPROCKET,44T

€ 31.50

34

42041013
ref: 34
'69-'70 MODEL W/DUAL

REA

€ 25.00

35

42042001
ref: 35
'69-'70 MODEL W/DUAL

REAR SPROCKET SPRING

€ 1.50

36

92001083
ref: 36
'69-'70 MODEL W/DUAL

BOLT-SPROCKET

€ 1.50

37

461F0800
ref: 37
'69-'70 MODEL W/DUAL

WASHER-SPRING,8MM

€ 0.50

38

92022040
ref: 38
'69-'70 MODEL W/DUAL

REAR SPROCKET WASHER

€ 1.50

39

92057030
ref: 39
'69-'70 MODEL W/DUAL

CHAIN ASSY,DRIVE,118L

€ 25.50

40

695Z4308
ref: 40
'69-'70 MODEL W/DUAL

DRIVE CHAIN,428X8H

€ 2.50

41

920581015
ref: 41
'69-'70 MODEL W/DUAL

JOINT-CHAIN,EK428SH

€ 3.50
