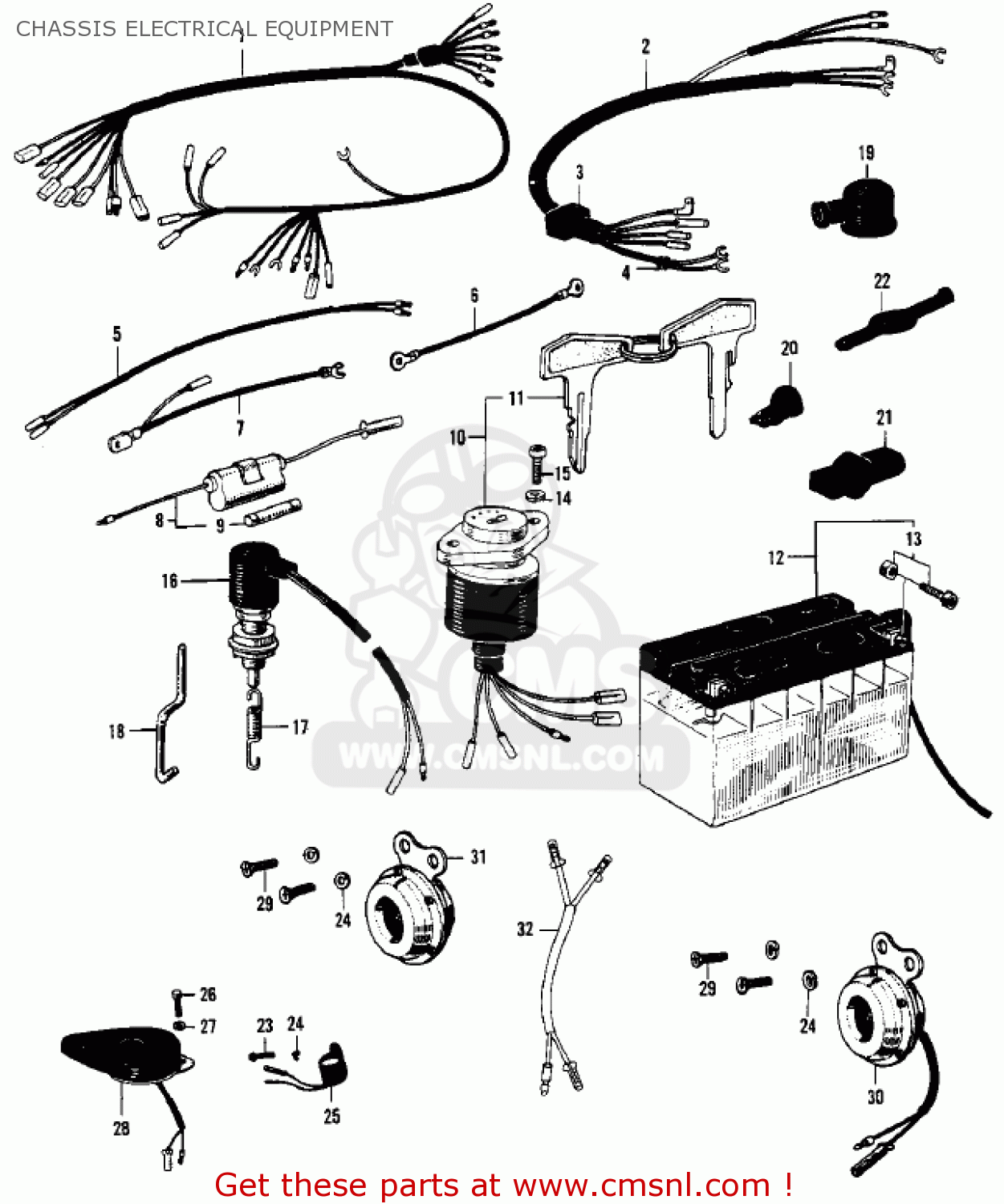

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

1

26001023
ref: 1

WIRING HARNESS,MAIN

€ 153.00

1

26001023
ref: 1

WIRING HARNESS,MAIN

€ 153.00

2

26003007
ref: 2

WIRING HARNESS-ENGINE

€ 17.00

3

92071014
ref: 3

GROMMET-ENG RUBBER A

€ 1.50

4

92071013
ref: 4

ENGINE GROMMET,RUBBER,B

€ 8.00

5

26002007
ref: 5

WIRING HARNESS-REAR

€ 2.50

6

26010006
ref: 6

WIRE BATTERY GROUND

€ 0.00

6

26010022
ref: 6

BATTERY WIRE GROUND

€ 23.50

7

26010004
ref: 7

BATTERY WIRE LEAD

€ 20.00

8

26004026
ref: 8

FUSE-ASSY

€ 13.50

9

26006001
ref: 9

FUSE 10A

€ 2.50

10

27005031
ref: 10

SWITCH ASSY-IGNITION

€ 41.50

11

2700802811
ref: 11

UNAVAILABLE IN PRICE BOOK

€ 0.00

11

2700802812
ref: 11

UNAVAILABLE IN PRICE BOOK

€ 0.00

11

2700802823
ref: 11

UNAVAILABLE IN PRICE BOOK

€ 0.00

11

2700802814
ref: 11

UNAVAILABLE IN PRICE BOOK

€ 0.00

11

2700802234
ref: 11

KEY SET,#134

€ 17.00

11

2700802235
ref: 11

KEY SET,#135

€ 18.50

11

2700802236
ref: 11

KEY SET,#136

€ 17.00

12

26012008
ref: 12

BATTERY 12V 12AH

€ 69.50

13

26013002
ref: 13

SCREW-BATTERY TERMNAL

€ 1.50

14

461F0500
ref: 14

WASHER-SPRING,5MM

€ 0.50

15

220B0508
ref: 15

SCREW-PAN-CROS,5X8

€ 0.50

16

27010018
ref: 16

SWITCH-BRAKE LAMP

€ 23.00

16

27010018
ref: 16

SWITCH-BRAKE LAMP

€ 23.00

17

27011004
ref: 17

SPRING-BRAKE LAMP SW

€ 2.50

18

27012008
ref: 18

BRAKE LAMP SWITCH SPRING,HOOK

€ 4.50

19

92073001
ref: 19

CAP-BAT TERMINAL RUBB

€ 8.50

20

92073003
ref: 20

CAP-IGNITION COIL

€ 2.00

21

92073002
ref: 21

REGULATOR TERMINAL CAP

€ 1.50

22

92072013
ref: 22

BAND-RUBBER

€ 2.00

23

220B0612
ref: 23

SCREW-PAN HEAD,6X12

€ 1.00

24

461F0600
ref: 24
1 FOR '68

WASHER-SPRING,6MM

€ 0.50

25

27002008
ref: 25

RELAY-TURN SIGNAL

€ 17.00

26

115G0816
ref: 26

BOLT-HEX,HEAD 8X16

€ 0.50

27

461F0800
ref: 27
'68

WASHER-SPRING,8MM

€ 0.50

28

27003012
ref: 28

HORN

€ 19.50

29

220B0614
ref: 29
'69-'70

SCREW-PAN HEAD,6X14

€ 2.00

30

27003016
ref: 30
'69

HORN

€ 71.00

31

27003022
ref: 31
'70

HORN

€ 59.50

32

26002022
ref: 32
'70

HORN LEAD WIRE

€ 9.50
