TRANSMISSION
ZX900A6 1989 EUROPE UK FR FG NR SD

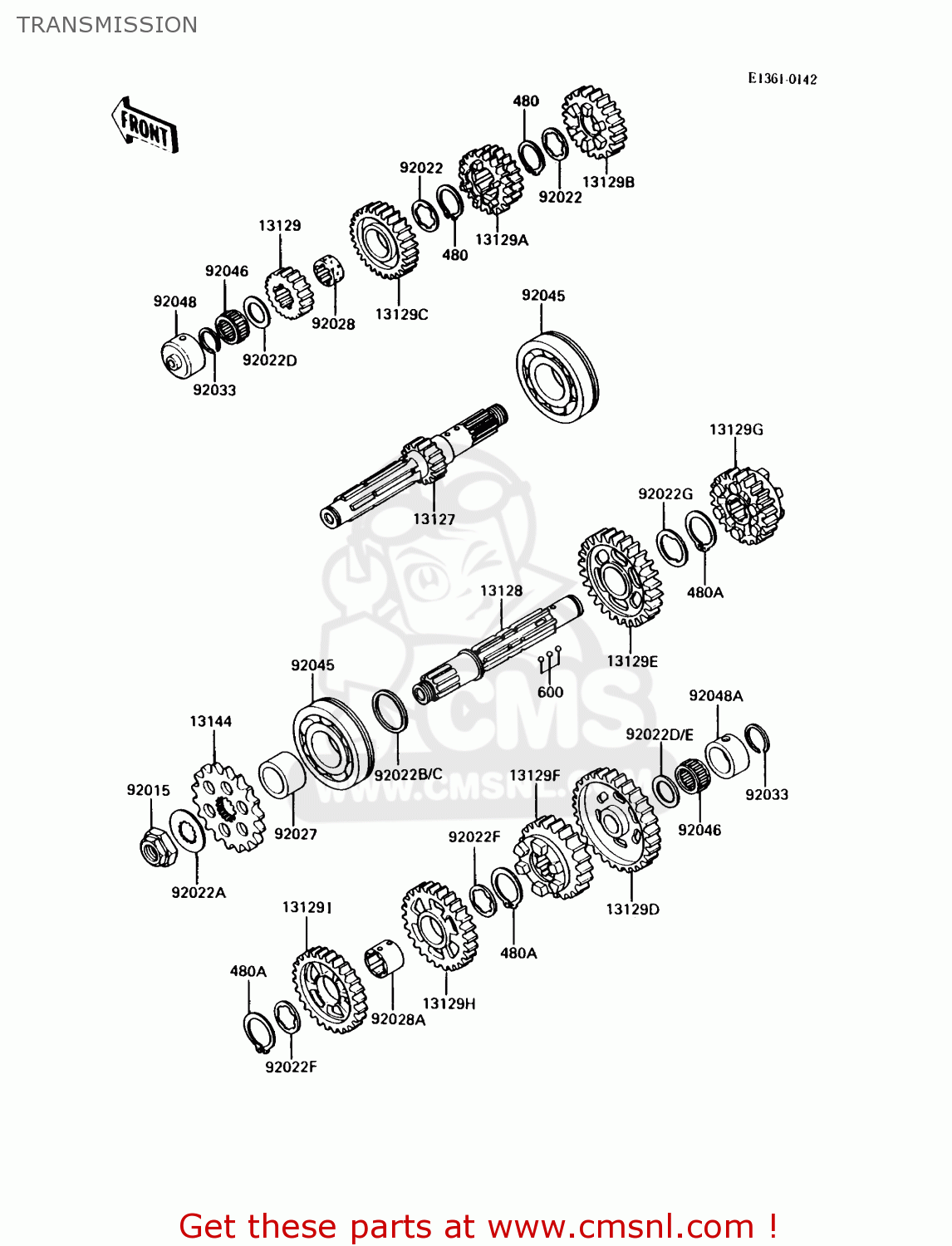

Transmission diagram ZX900A6 1989 EUROPE UK FR FG NR SD
TRANSMISSION ZX900A6 1989 EUROPE UK FR FG NR SD
×
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
€ 3.50
480A
480J2900
ref: 480A
CIRCLIP
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271108
ref: 13127
SHAFT-TRANSMISSION IN
€ 241.00
13128
131281113
ref: 13128
SHAFT-TRANSMISSION
€ 173.00
13129
131291530
ref: 13129
GEAR,INPUT 2ND,19T
€ 116.50
13129A
131291531
ref: 13129A
GEAR,INPUT 3RD&4TH,22
€ 157.50
13129B
131291532
ref: 13129B
GEAR,INPUT 5TH,26T
€ 150.00
13129C
131291533
ref: 13129C
GEAR,INPUT TOP,28T
€ 128.00
13129D
131291534
ref: 13129D
GEAR,OUTPUT LOW,42T
€ 170.00
13129E
131291535
ref: 13129E
GEAR,OUTPUT 2ND,38T
€ 127.50
13129F
131291538
ref: 13129F
GEAR,OUTPUT 5TH,30T
€ 169.50
13129G
131291539
ref: 13129G
GEAR,OUTPUT TOP,29T
€ 148.50
13129H
131291773
ref: 13129H
GEAR,OUTPUT 3RD,35T
€ 77.50
13129I
131291774
ref: 13129I
GEAR,OUTPUT 4TH,32T
€ 79.50
13144
131441106
ref: 13144
SPROCKET-OUTPUT,17T
€ 28.50
92015
920151210
ref: 92015
NUT,20MM
€ 12.00
92022
920221077
ref: 92022
WASHER,LOCK (O.D=35O)
€ 7.50
92022A
920221336
ref: 92022A
WASHER,23.9X45X1.0
€ 4.00
92022B
920221572
ref: 92022B
WASHER,28.3X34X0.5
€ 4.50
92022C
920221626
ref: 92022C
WASHER,28.3X34X0.3
€ 14.00
92022D
92022212
ref: 92022D
WASHER-PLAIN,22MM
€ 6.50
92022E
92022213
ref: 92022E
WASHER,22.3X35X1.2
€ 7.00
92022F
92024043
ref: 92022F
WASHER,TOOTHED,30.3X4
€ 8.00
92022G
92024069
ref: 92022G
WASHER,TOOTHED,30.5X3
€ 3.50
92027
920271711
ref: 92027
COLLAR,28X40X23.5
€ 14.50
92028
920281124
ref: 92028
BUSHING,TOP GEAR
€ 31.00
92028A
920281363
ref: 92028A
BUSHING,OUTPUT 3RD&4T
€ 30.50
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92045
920451186
ref: 92045
BEARING-BALL
€ 73.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
€ 19.50
92048
920481052
ref: 92048
RACE,INPUT SHAFT
€ 59.50
92048A
920481053
ref: 92048A
RACE,30X38X15
€ 27.50
