REAR HUB

ZX900A6 1989 EUROPE UK FR FG NR SD

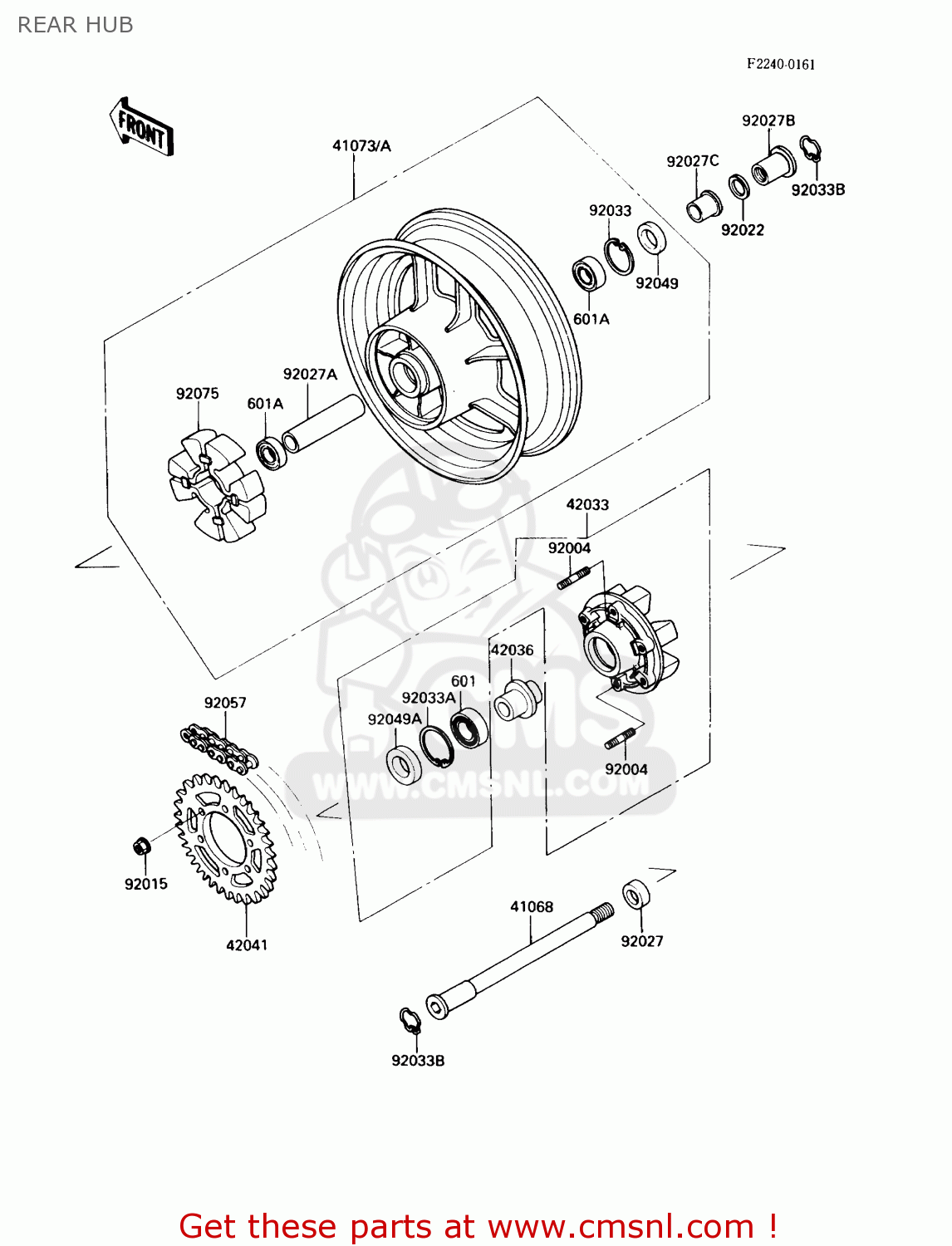

Rear hub diagram ZX900A6 1989 EUROPE UK FR FG NR SD

REAR HUB ZX900A6 1989 EUROPE UK FR FG NR SD
REAR HUB ZX900A6 1989 EUROPE UK FR FG NR SD
REAR HUB ZX900A6 1989 EUROPE UK FR FG NR SD
prices are in EUR
ref
part #
description
quantity
601
601B6206G
ref: 601
BEARING
601B6206G
€ 19.50
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
41068
410681162
ref: 41068
AXLE,RR
410681162
€ 75.00
41073
410731283DC
ref: 41073
EUFG
WHEEL-ASSY,RR,WHITE N
410731283DC
€ 606.00
41073A
410731283EF
ref: 41073A
WHEEL-ASSY,RR,NO.2 GO
€ 636.50
42033
420331110
ref: 42033
COUPLING-ASSY,RR HUB
€ 302.00
42036
420361030
ref: 42036
SLEEVE,RR HUB COUPLIN
420361030
€ 19.00
42041
420411184
ref: 42041
SPROCKET-HUB,49T
420411184
€ 55.00
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
920151502
ref: 92015
NUT,FLANGED,10MM
920151502
€ 7.00
92022
920221618
ref: 92022
WASHER,23X32X2.3
920221618
€ 4.00
92027
920271713
ref: 92027
COLLAR,RR HUB COUPLIN
920271713
€ 16.00
92027A
920271714
ref: 92027A
COLLAR,L=104
920271714
€ 14.50
92027B
920271810
ref: 92027B
COLLAR,RR AXLE,L=28
920271810
€ 21.00
92027C
920271811
ref: 92027C
COLLAR,RR AXLE,L=33
920271811
€ 20.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331044
ref: 92033A
CIRCLIP 62 M/M
920331044
€ 7.50
92033B
920331156
ref: 92033B
RING-SNAP,RR AXLE
920331156
€ 3.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92049A
92050027
ref: 92049A
OIL SEAL
92050027
€ 13.50
92057
920571163
ref: 92057
CHAIN,DRIVE,EK50KVD0X
920571163
€ 129.50
92075
920751593
ref: 92075
DAMPER,SHOCK,RR HUB
920751593
€ 59.00
