CARBURETOR PARTS
ZX900A6 1989 EUROPE UK FR FG NR SD

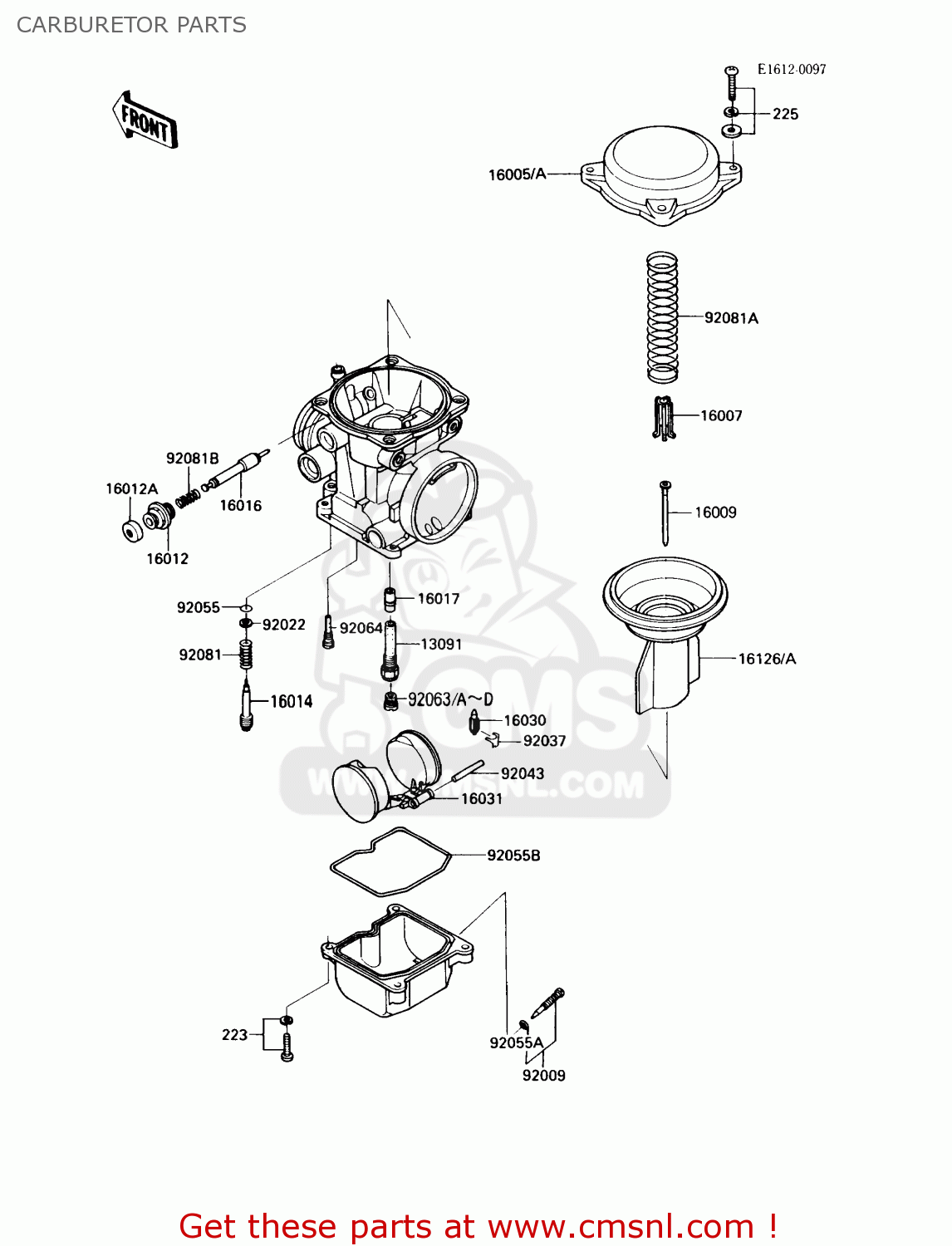

Carburetor parts diagram ZX900A6 1989 EUROPE UK FR FG NR SD
CARBURETOR PARTS ZX900A6 1989 EUROPE UK FR FG NR SD
×
prices are in EUR
ref
part #
description
quantity
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
13091
130911347
ref: 13091
HOLDER,NEEDLE JET
€ 20.00
16005
160051054
ref: 16005
EUNRUK
TOP-CHAMBER,MIXING
€ 30.50
16005A
160051055
ref: 16005A
FGFRSD
TOP-CHAMBER,MIXING
€ 47.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091243
ref: 16009
NEEDLE-JET,N27B
€ 21.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171266
ref: 16017
JET-NEEDLE,#6
€ 39.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16126
161261163
ref: 16126
EUFGNRSDUK
VALVE,VACUUM
€ 157.50
16126A
161261170
ref: 16126A
FR
VALVE,VACUUM
€ 168.00
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631014
ref: 92063
MAIN JET,#135
€ 9.50
92063A
920631015
ref: 92063A
MAIN JET,#138
€ 9.50
92063B
920631074
ref: 92063B
MAIN JET,2ND #128
€ 9.50
92063C
920631075
ref: 92063C
MAIN JET,2ND #130
€ 9.50
92063D
920631076
ref: 92063D
JET-MAIN,#132
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811760
ref: 92081A
SPRING,VACUUM VALVE
€ 15.00
92081B
920811761
ref: 92081B
SPRING,STARTER PLUNGE
€ 6.00
