CARBURETOR
ZX900A6 1989 EUROPE UK FR FG NR SD

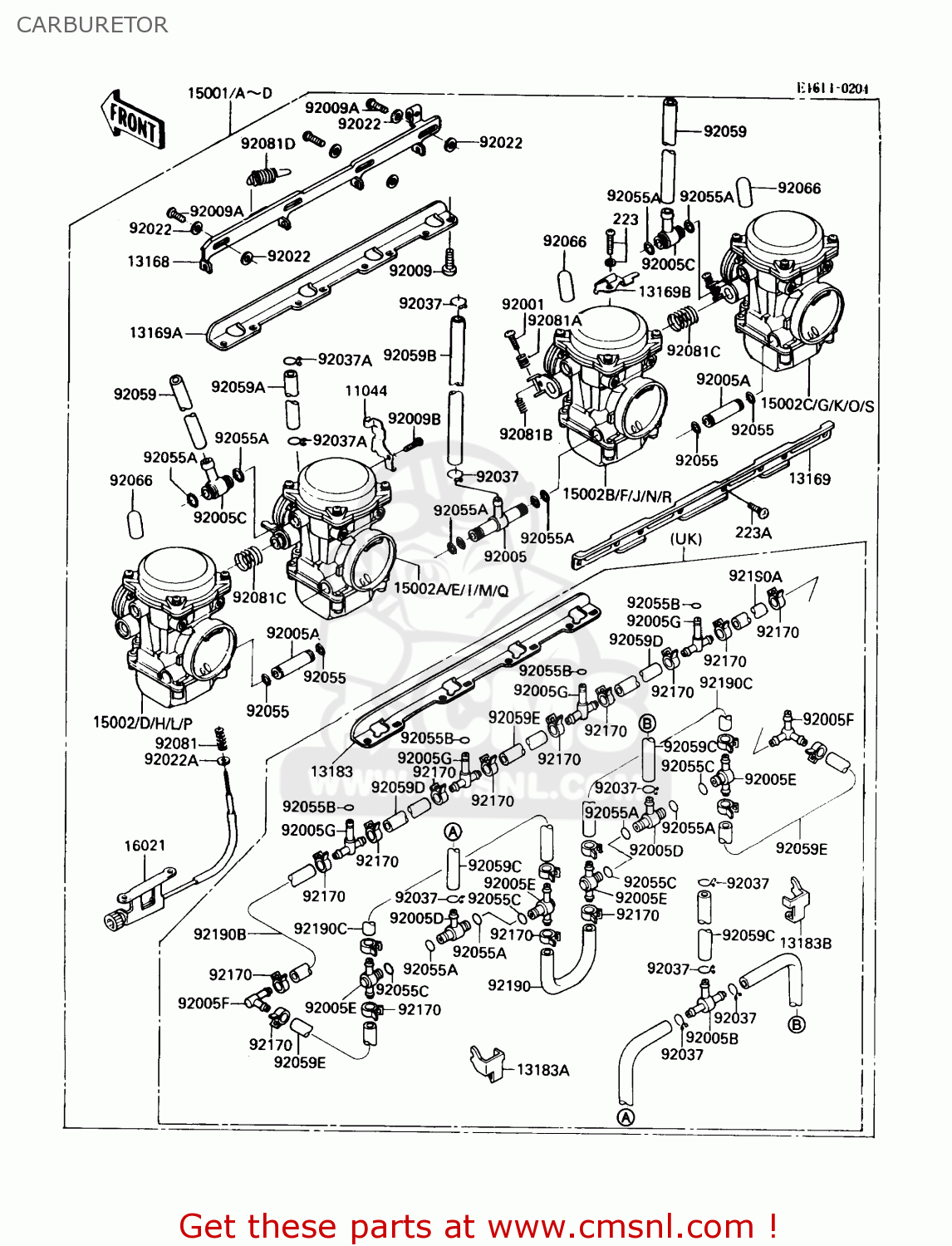

Carburetor diagram ZX900A6 1989 EUROPE UK FR FG NR SD
CARBURETOR ZX900A6 1989 EUROPE UK FR FG NR SD
×
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
€ 41.00
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691869
ref: 13169
PLATE,CARBURETOR STAY
€ 80.50
13169A
131691870
ref: 13169A
EUFGFRNRSD
PLATE,CARBURETOR STAY
€ 72.00
13169B
131691871
ref: 13169B
PLATE,STARTER CABLE
€ 16.00
13183
131831331
ref: 13183
UK
PLATE,CARBURETOR STAY
€ 44.50
13183A
131831468
ref: 13183A
UK
PLATE,LH
€ 10.00
13183B
131831469
ref: 13183B
UK
PLATE,RH
€ 9.00
15001
150011216
ref: 15001
SD
CARBURETOR-ASSY
€ 1,865.00
15001A
150011218
ref: 15001A
EUNR
CARBURETOR-ASSY
€ 1,605.00
15001B
150011226
ref: 15001B
FR
CARBURETOR-ASSY
€ 1,865.00
15001C
150011504
ref: 15001C
FG
CARBURETOR-ASSY
€ 1,865.00
15001D
150011505
ref: 15001D
UK
CARBURETOR-ASSY
€ 1,865.00
15002
150021270
ref: 15002
SD
CARBURETOR,LH,OUTSIDE
€ 487.00
15002A
150021271
ref: 15002A
SD
CARBURETOR,LH,INSIDE
€ 485.00
15002B
150021272
ref: 15002B
SD
CARBURETOR,RH,INSIDE
€ 487.00
15002C
150021273
ref: 15002C
SD
CARBURETOR,RH,OUTSIDE
€ 487.00
15002D
150021278
ref: 15002D
EUNR
CARBURETOR,LH,OUTSIDE
€ 487.00
15002E
150021279
ref: 15002E
EUNR
CARBURETOR,LH,INSIDE
€ 487.00
15002F
150021280
ref: 15002F
EUNR
CARBURETOR,RH,INSIDE
€ 632.50
15002G
150021281
ref: 15002G
EUNR
CARBURETOR,RH,OUTSIDE
€ 602.50
15002H
150021282
ref: 15002H
FR
CARBURETOR,LH,OUTSIDE
€ 487.00
15002I
150021283
ref: 15002I
FR
CARBURETOR,LH,INSIDE
€ 487.00
15002J
150021284
ref: 15002J
FR
CARBURETOR,RH,INSIDE
€ 487.00
15002K
150021285
ref: 15002K
FR
CARBURETOR,RH,OUTSIDE
€ 487.00
15002L
150021785
ref: 15002L
FG
CARBURETOR,LH,OUTSIDE
€ 487.00
15002M
150021786
ref: 15002M
FG
CARBURETOR,LH,INSIDE
€ 487.00
15002N
150021787
ref: 15002N
FG
CARBURETOR,RH,INSIDE
€ 487.00
15002O
150021788
ref: 15002O
FG
CARBURETOR,RH,OUTSIDE
€ 487.00
15002P
150021790
ref: 15002P
UK
CARBURETOR,LH,OUTSIDE
€ 0.00
15002Q
150021791
ref: 15002Q
UK
CARBURETOR,LH,INSIDE
€ 0.00
15002R
150021792
ref: 15002R
UK
CARBURETOR,RH,INSIDE
€ 0.00
15002S
150021793
ref: 15002S
UK
CARBURETOR,RH,OUTSIDE
€ 0.00
16021
160211101
ref: 16021
SCREW-THROTTLE STOP
€ 83.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051108
ref: 92005
EUFGFRNRSD
FITTING,FUEL,T-TYPE
€ 16.50
92005A
920051109
ref: 92005A
EUFGFRNRSD
FITTING,FUEL,I-TYPE
€ 25.00
92005B
920051119
ref: 92005B
UK
FITTING,T-TYPE
€ 17.50
92005C
920051125
ref: 92005C
FITTING,T-TYPE
€ 18.00
92005D
920051190
ref: 92005D
UK
FITTING,T-TYPE
€ 17.50
92005E
920051192
ref: 92005E
UK
FITTING,T-TYPE
€ 17.50
92005F
920051193
ref: 92005F
UK
FITTING
€ 12.00
92005G
920051195
ref: 92005G
UK
FITTING,WATER
€ 22.50
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92009B
920091365
ref: 92009B
SCREW
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
EUFGFRNRSD
CLAMP,FUEL INLET TUBE
€ 2.50
92037
920371075
ref: 92037
UK
CLAMP,FUEL INLET TUBE
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
EUFGFRNRSD
O RING
€ 2.50
92055A
920551223
ref: 92055A
EUFGFRNRSD
RING-O,FUEL FITTING
€ 3.50
92055A
920551223
ref: 92055A
UK
RING-O,FUEL FITTING
€ 3.50
92055B
920551427
ref: 92055B
UK
RING-O,4.5X1.5
€ 3.00
92055C
920551454
ref: 92055C
UK
RING-O
€ 4.00
92059
920591376
ref: 92059
TUBE,6.5X9.5X290
€ 20.50
92059A
920591377
ref: 92059A
TUBE,5X9X180
€ 16.50
92059B
920591492
ref: 92059B
EUFGFRNRSD
TUBE,7.3X12.5X260
€ 25.00
92059C
920591719
ref: 92059C
UK
TUBE,7.3X12.5X170
€ 25.00
92059D
920591976
ref: 92059D
UK
TUBE,4X10X59
€ 9.00
92059E
920591977
ref: 92059E
UK
TUBE,4X10X70
€ 9.00
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
€ 6.50
92081D
920811762
ref: 92081D
SPRING,STARTER LEVER
€ 14.00
92170
921701055
ref: 92170
UK
CLAMP,WATER HOSE
€ 3.50
92190
921901028
ref: 92190
UK
TUBE
€ 7.50
92190A
921901032
ref: 92190A
UK
TUBE,L=40
€ 3.50
92190B
921901033
ref: 92190B
UK
TUBE,L=25
€ 9.00
92190C
921901038
ref: 92190C
UK
TUBE,L=320
€ 9.00
