GEAR CHANGE MECHANISM
ZX900A6 1989 EUROPE UK FR FG NR SD

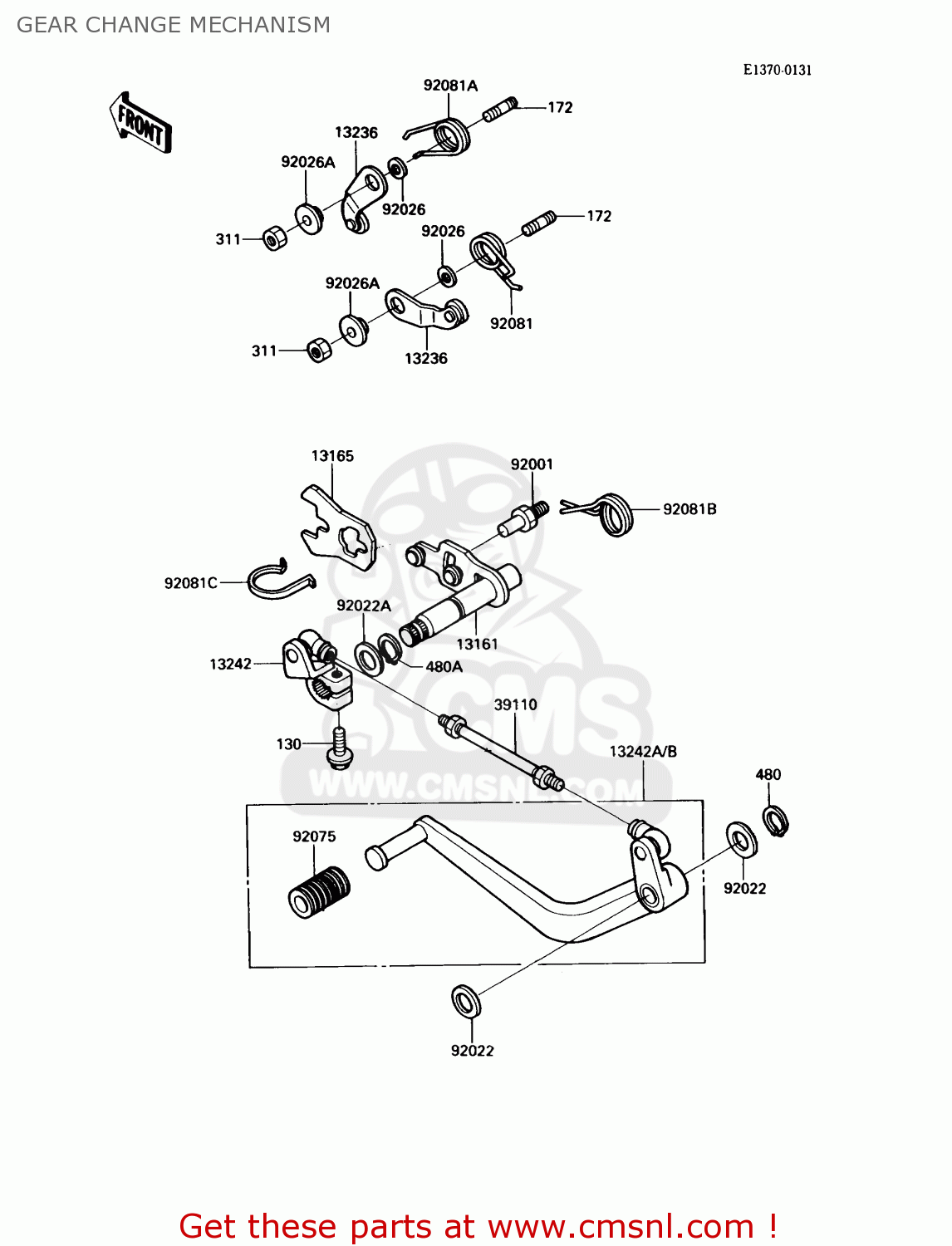

Gear change mechanism diagram ZX900A6 1989 EUROPE UK FR FG NR SD
GEAR CHANGE MECHANISM ZX900A6 1989 EUROPE UK FR FG NR SD
×
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
172
172G0614
ref: 172
STUD,6X14
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
480A
480J1300
ref: 480A
CIRCLIP-TYPE-C,13MM
€ 2.50
13161
131611106
ref: 13161
LEVER-COMP-CHANGE SHA
€ 65.00
13165
131651120
ref: 13165
PAWL
€ 9.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
€ 13.00
13242
132421161
ref: 13242
LEVER-ASSY-CHANGE
€ 41.00
13242A
132421162
ref: 13242A
EUFGNRSDUK
LEVER-ASSY-CHANGE,PED
€ 37.00
13242B
132421170
ref: 13242B
FR
LEVER-ASSY-CHANGE,PED
€ 43.50
39110
391101010
ref: 39110
ROD-ASSY-TIE,CHANGE L
€ 9.00
92001
920011455
ref: 92001
BOLT
€ 3.00
92022
920221593
ref: 92022
WASHER,12.5X22X1.2
€ 3.00
92022A
920221772
ref: 92022A
WASHER
€ 3.00
92026
92026094
ref: 92026
WASHER,THRUST
€ 6.50
92026A
920261217
ref: 92026A
SPACER
€ 3.50
92075
13157004
ref: 92075
RUBBER-CHANGE PEDAL
€ 4.00
92081
920811645
ref: 92081
SPRING
€ 9.00
92081A
920811742
ref: 92081A
SPRING
€ 7.00
92081B
920811750
ref: 92081B
SPRING,CHANGE PEDAL R
€ 7.50
92081C
920811829
ref: 92081C
SPRING,CHANGE LEVER
€ 6.00
