STARTER MOTOR
ZX900A6 1989 EUROPE UK FR FG NR SD

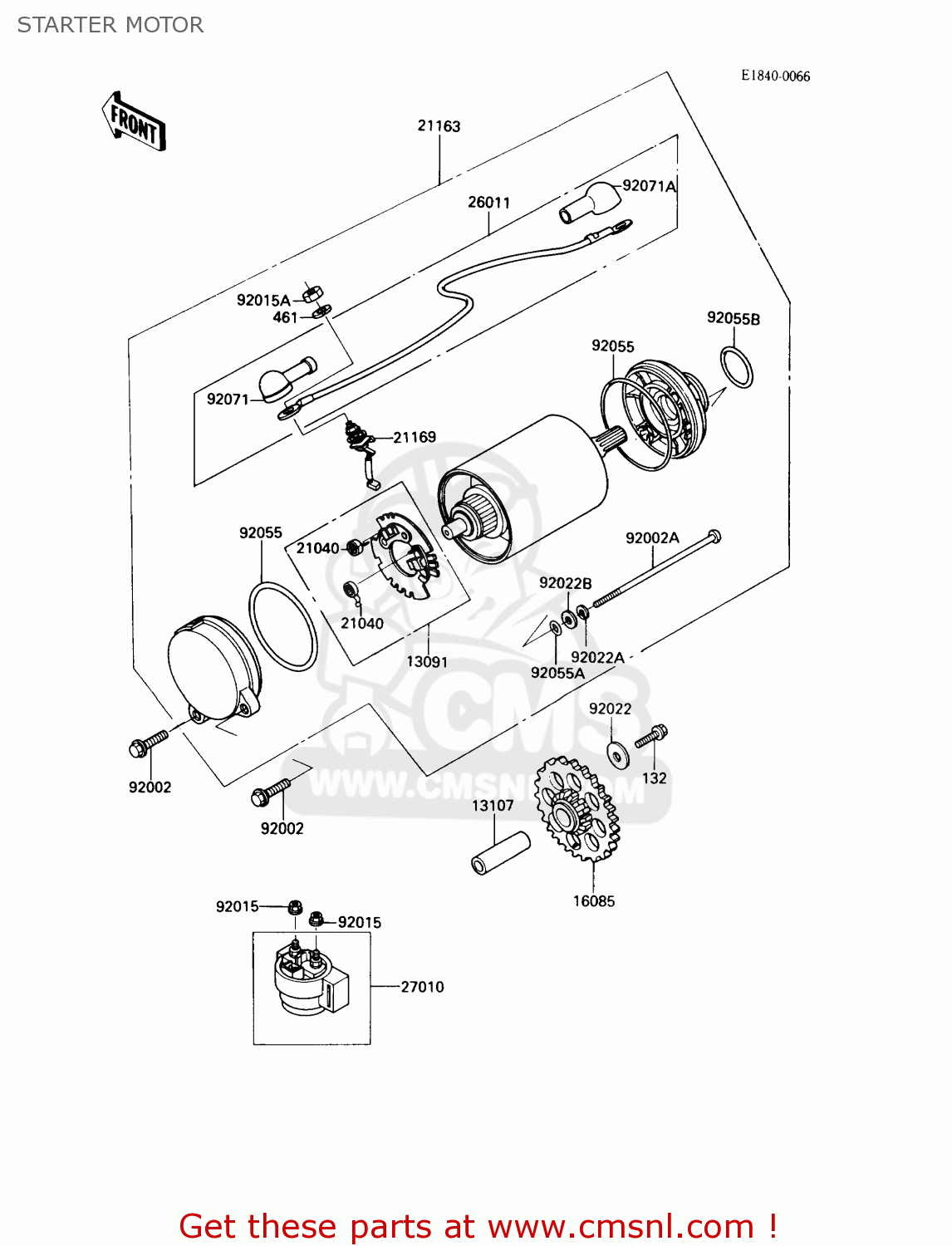

Starter motor diagram ZX900A6 1989 EUROPE UK FR FG NR SD
STARTER MOTOR ZX900A6 1989 EUROPE UK FR FG NR SD
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
13091
130911325
ref: 13091
HOLDER,CARBON BRUSH
€ 55.00
13107
131071106
ref: 13107
SHAFT,IDLE GEAR
€ 11.50
16085
160851119
ref: 16085
GEAR,IDLE
€ 75.50
21040
210401051
ref: 21040
SPRING-BRUSH
€ 1.50
21163
211631060
ref: 21163
STARTER-ELECTRIC
€ 477.00
21169
211691051
ref: 21169
TERMINAL,STARTER
€ 49.50
26011
260111286
ref: 26011
WIRE-LEAD,STARTER MOT
€ 36.50
27010
270101075
ref: 27010
SWITCH STARTER
€ 51.50
92002
920011947
ref: 92002
BOLT,6X20
€ 3.00
92002A
920021377
ref: 92002A
BOLT
€ 9.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151457
ref: 92015A
NUT,6MM
€ 2.00
92022
920221517
ref: 92022
WASHER,6X19.5X2
€ 1.50
92022A
920221622
ref: 92022A
WASHER,SPRING,5.1MM
€ 1.50
92022B
920221623
ref: 92022B
WASHER,5.1X11X1.4
€ 2.00
92055
920551260
ref: 92055
RING-O,62MM
€ 7.50
92055A
920551261
ref: 92055A
RING-O,4.5MM
€ 2.00
92055B
920551262
ref: 92055B
RING-O,24.4X3.1
€ 8.50
92071
920711120
ref: 92071
GROMMET,STARTER TERMI
€ 8.50
92071A
920711121
ref: 92071A
GROMMET,TERMINAL
€ 8.00
