OIL PUMP
ZX900A6 1989 EUROPE UK FR FG NR SD

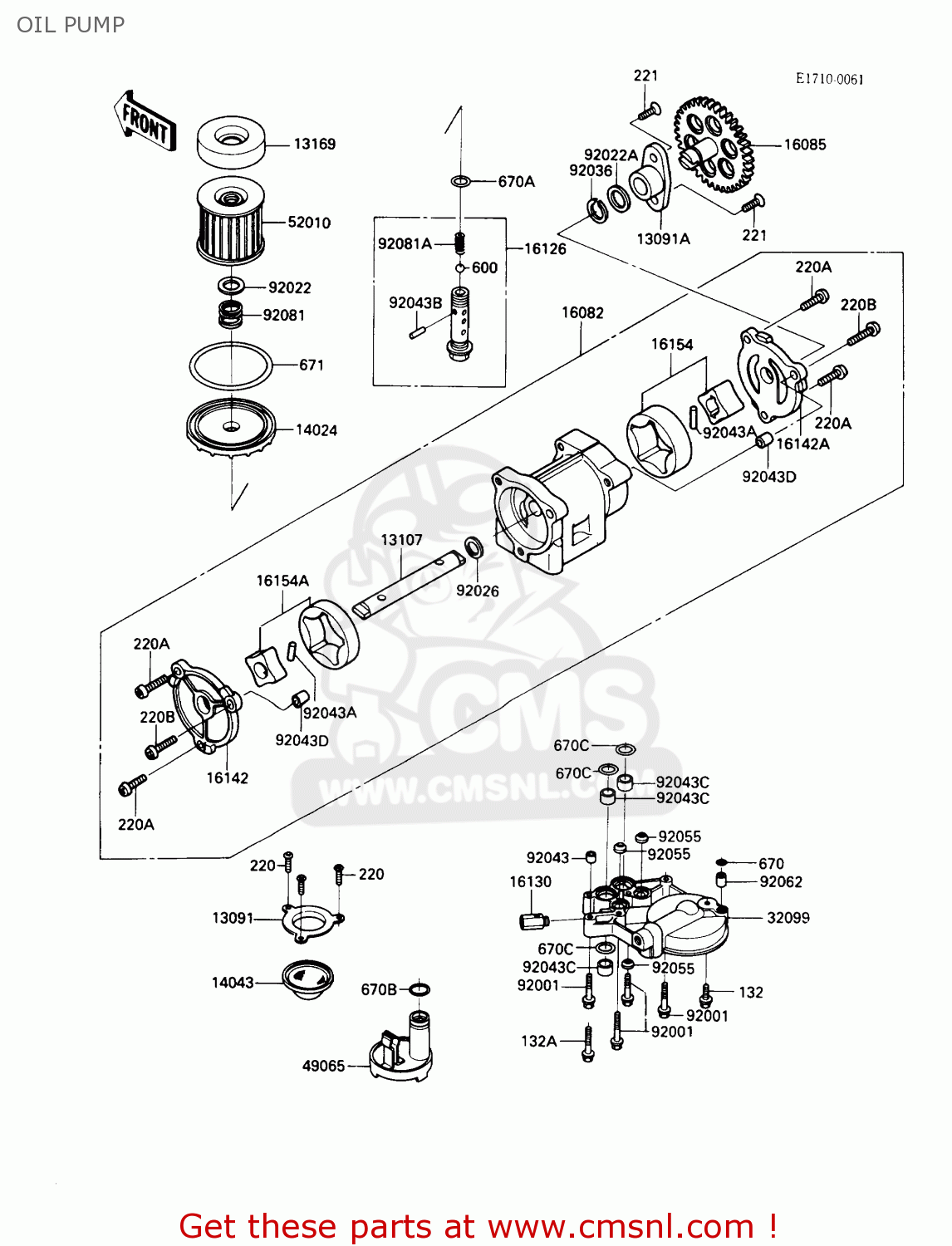

Oil pump diagram ZX900A6 1989 EUROPE UK FR FG NR SD
OIL PUMP ZX900A6 1989 EUROPE UK FR FG NR SD
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0645
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
220A
220B0614
ref: 220A
SCREW-PAN HEAD,6X14
€ 2.00
220B
220B0620
ref: 220B
SCREW-PAN HEAD,6X20
€ 2.50
221
221B0616
ref: 221
SCREW-CNTSNK HD,6X16
€ 0.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
670
670B1508
ref: 670
O RING,8MM
€ 1.00
670A
670B2016
ref: 670A
O RING,16MM
€ 1.00
13091
130911274
ref: 13091
HOLDER,OIL FILTER
€ 9.50
13091A
130911333
ref: 13091A
HOLDER,PUMP GEAR
€ 21.00
13107
131071105
ref: 13107
SHAFT,OIL PUMP
€ 60.50
13169
131691313
ref: 13169
PLATE,OIL FILTER
€ 7.00
14024
140251422
ref: 14024
COVER,OIL FILTER,F.BL
€ 31.00
14043
16111003
ref: 14043
STRAINER,OIL
€ 10.00
16082
160821060
ref: 16082
PUMP-ASSY-OIL
€ 189.00
16085
160851103
ref: 16085
GEAR,OIL PUMP,35T
€ 84.00
16126
161261108
ref: 16126
VALVE,OIL FILTER
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
16142
161421052
ref: 16142
COVER-PUMP,LH
€ 31.50
16142A
161421054
ref: 16142A
COVER-PUMP,RH
€ 30.00
16154
161541007
ref: 16154
ROTOR ASSY,OIL PUMP
€ 51.50
16154A
161541053
ref: 16154A
ROTOR-PUMP
€ 42.00
32099
320991083
ref: 32099
CASE,OIL FILTER
€ 89.00
49065
490651053
ref: 49065
FILTER-OIL
€ 22.50
52010
16099003
ref: 52010
FILTER,OIL
€ 6.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92022
920221012
ref: 92022
WASHER,20.5X30X1
€ 3.00
92022A
920221495
ref: 92022A
WASHER,14X20X1
€ 2.50
92026
920261230
ref: 92026
SPACER,OIL PUMP
€ 2.50
92036
920361052
ref: 92036
RING-SNAP,PUMP GEAR
€ 4.00
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
920431061
ref: 92043A
PIN,DOWEL,5X17.8
€ 3.00
92043B
92043111
ref: 92043B
SPRING PIN
€ 4.00
92043C
920431213
ref: 92043C
PIN,18X20X12
€ 4.00
92043D
920431302
ref: 92043D
PIN,DOWEL,8X10
€ 1.00
92055
92055077
ref: 92055
O RING
€ 4.00
92062
920621055
ref: 92062
NOZZLE
€ 6.50
92081
920811018
ref: 92081
SPRING,OIL FILTER
€ 3.00
92081A
92081109
ref: 92081A
SPRING
€ 7.50
670B
670B2018
ref: 670B
O RING,18MM
€ 1.00
670C
670D2020
ref: 670C
O RING,20MM
€ 4.00
671
671B2590
ref: 671
O RING,90MM
€ 6.50
