HEADLIGHT(S)
ZX900A6 1989 EUROPE UK FR FG NR SD

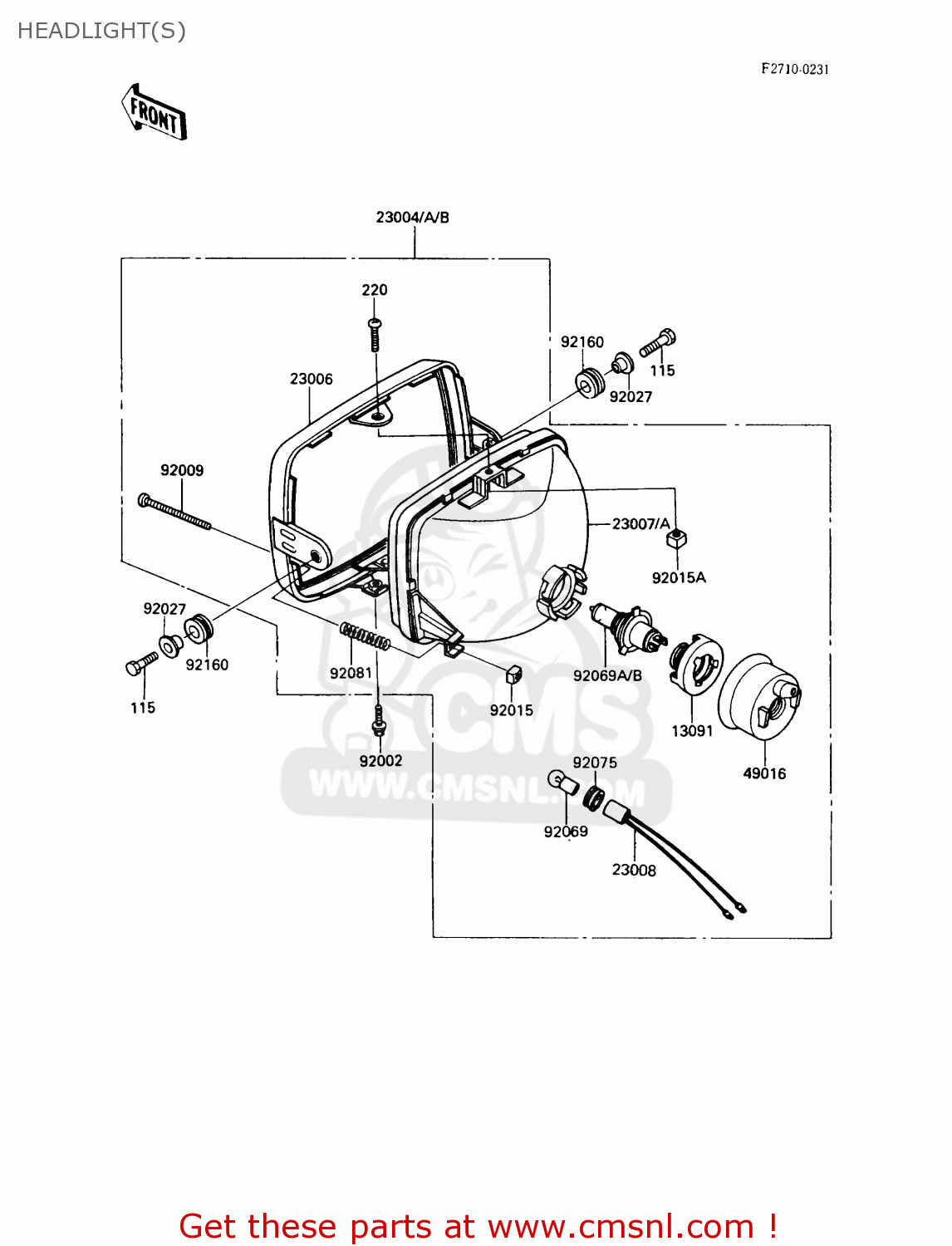

Headlight(s) diagram ZX900A6 1989 EUROPE UK FR FG NR SD
HEADLIGHT(S) ZX900A6 1989 EUROPE UK FR FG NR SD
×
prices are in EUR
ref
part #
description
quantity
115
115B0825
ref: 115
BOLT SMALL UPSET 8X25
€ 3.00
220
220B0512
ref: 220
SCREW-PAN-CROS
€ 0.50
13091
130911036
ref: 13091
HOLDER,HEAD LAMP SOCK
€ 12.50
23004
230041166
ref: 23004
EUFGNRSD
LAMP-HEAD
€ 633.00
23004A
230041167
ref: 23004A
FR
LAMP-HEAD
€ 653.50
23004B
230041168
ref: 23004B
UK
LAMP-HEAD
€ 822.00
23006
230061054
ref: 23006
RIM-LAMP
€ 78.50
23007
230071113
ref: 23007
EUFGFRNRSD
LENS-COMP
€ 142.00
23007A
230071114
ref: 23007A
UK
LENS-COMP
€ 153.00
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
49016
490161023
ref: 49016
COVER-SEAL,HEAD LAMP
€ 11.50
92002
920021350
ref: 92002
BOLT
€ 2.50
92009
920091047
ref: 92009
SCREW,HEAD LAMP LENS
€ 3.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151157
ref: 92015A
NUT,5MM
€ 3.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
EUFGNRSDUK
BULB,12V-60155W
€ 15.00
92069B
920691004
ref: 92069B
FR
BULB,12V 60/55W,H4,YE
€ 15.00
92075
23066008
ref: 92075
DAMPER,PARKING LAMP
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
