RADIATOR
ZX900A6 1989 EUROPE UK FR FG NR SD

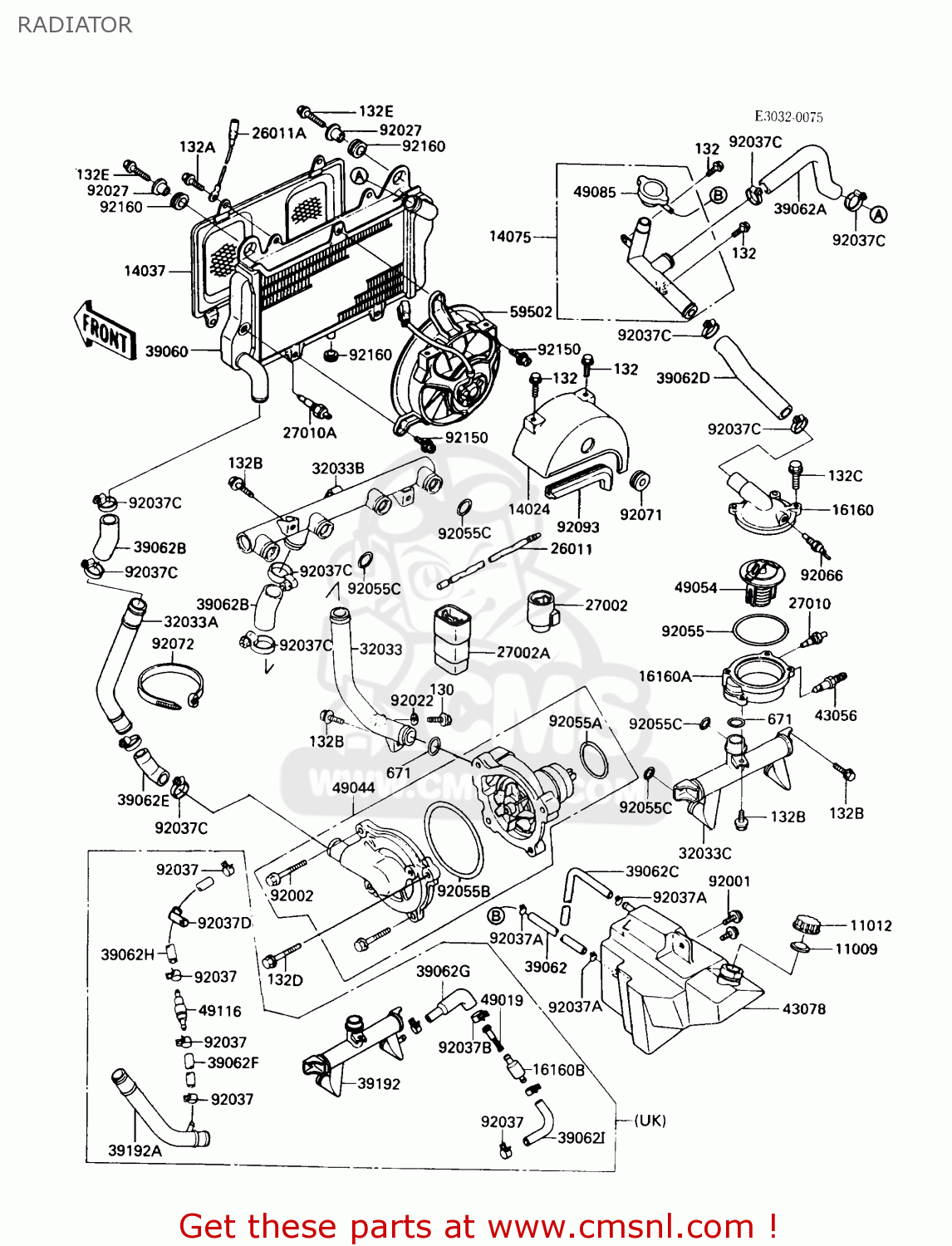

Radiator diagram ZX900A6 1989 EUROPE UK FR FG NR SD
RADIATOR ZX900A6 1989 EUROPE UK FR FG NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140251892
ref: 14024
COVER,FAN
€ 111.00
14037
140371063
ref: 14037
SCREEN,RADIATOR
€ 62.50
14075
140751055
ref: 14075
CAP-ASSY,RADIATOR
€ 160.00
16160
161601067
ref: 16160
BODY,THERMOSTAT,UPP
€ 52.00
16160A
161601068
ref: 16160A
BODY,THERMOSTAT,LWR
€ 63.50
16160B
161601151
ref: 16160B
UK
BODY,FILTER
€ 6.50
26011
260111204
ref: 26011
WIRE-LEAD,OIL TEMPERA
€ 8.00
26011A
260111282
ref: 26011A
WIRE-LEAD
€ 7.50
27002
270021054
ref: 27002
RELAY-ASSY
€ 31.50
27002A
270021055
ref: 27002A
RELAY-ASSY
€ 53.00
27010
270101036
ref: 27010
SWITCH,FAN
€ 75.00
27010A
270101167
ref: 27010A
SWITCH,FAN
€ 108.50
32033
320331206
ref: 32033
PIPE
€ 98.00
32033A
320331207
ref: 32033A
EUFGFRNRSD
PIPE
€ 50.00
32033B
320331262
ref: 32033B
PIPE
€ 124.50
32033C
320331719
ref: 32033C
EUFGFRNRSD
PIPE
€ 102.00
39060
390601059
ref: 39060
RADIATOR-ASSY
€ 718.00
39062
390621069
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621070
ref: 39062A
HOSE-COOLING
€ 23.50
39062B
390621072
ref: 39062B
HOSE-COOLING
€ 14.00
39062C
390621075
ref: 39062C
HOSE-COOLING
€ 17.50
39062D
390621091
ref: 39062D
HOSE-COOLING
€ 25.50
39062E
390621092
ref: 39062E
HOSE-COOLING
€ 14.00
39062F
390621305
ref: 39062F
UK
HOSE-COOLING,CHECK VA
€ 5.50
39062G
390621310
ref: 39062G
UK
HOSE-COOLING,HEAD PIP
€ 9.00
39062H
390621333
ref: 39062H
UK
HOSE-COOLING
€ 5.50
39062I
390621344
ref: 39062I
UK
HOSE-COOLING
€ 5.50
39192
391921003
ref: 39192
UK
PIPE-WATER
€ 107.00
39192A
391921013
ref: 39192A
UK
PIPE-WATER
€ 43.50
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
132
132J0608
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0610
ref: 132A
BOLT-FLANGED-SMALL,6X
€ 1.50
132B
132J0612
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132J0620
ref: 132C
BOLT-FLANGED-SMALL
€ 2.00
132D
132J0640
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132J0825
ref: 132E
BOLT-FLANGED-SMALL
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
43078
430781053
ref: 43078
RESERVOIR
€ 66.00
49019
490191068
ref: 49019
UK
FILTER-FUEL
€ 4.00
49044
490441058
ref: 49044
PUMP-WATER
€ 259.00
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851054
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
49116
491161076
ref: 49116
UK
VALVE-ASSY,CHECK
€ 134.00
59502
595021053
ref: 59502
FAN-ASSY
€ 655.00
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
€ 3.00
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
920371461
ref: 92037
UK
CLAMP,TUBE
€ 1.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371861
ref: 92037B
UK
CLAMP
€ 5.50
92037C
920371985
ref: 92037C
CLAMP,COOLING HOSE
€ 7.50
92037D
920371993
ref: 92037D
UK
CLAMP
€ 3.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551266
ref: 92055A
RING-O,33.8MM
€ 12.00
92055B
920551271
ref: 92055B
RING-O,WATER PUMP
€ 7.00
92055C
920551282
ref: 92055C
RING-O
€ 3.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
€ 38.00
92071
920711116
ref: 92071
GROMMET
€ 3.50
92072
920721197
ref: 92072
BAND
€ 5.00
92093
920931168
ref: 92093
SEAL,FAN COVER
€ 15.00
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
