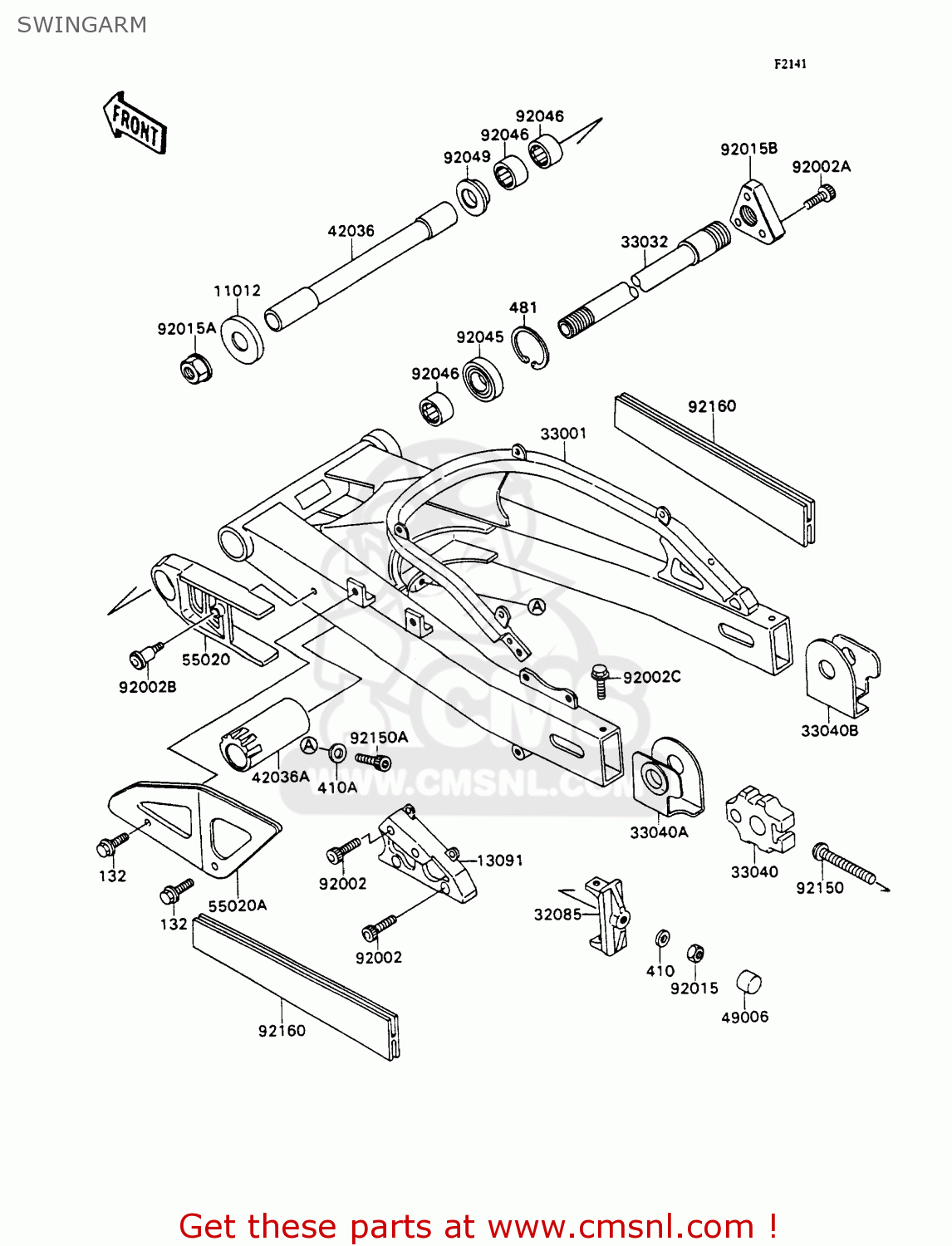

SWINGARM

ref

part #

description

quantity

132

132E0612
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

410

410D1000
ref: 410

WASHER,PLAIN,10MM

€ 2.50

410A

410E1000
ref: 410A

W-PLAIN-S

€ 0.50

481

481J4200
ref: 481

CIRCLIP-TYPE-C

€ 4.00

11012

110121658
ref: 11012

CAP

€ 5.50

13091

130911605CE
ref: 13091

HOLDER,SWING ARM,SILV

€ 26.50

32085

320851319
ref: 32085

STOPPER,CHAIN ADJUSTE

€ 12.50

33001

330011334CE
ref: 33001

ARM-COMP-SWING,SILVER

€ 865.00

33032

330321150
ref: 33032

SHAFT-SWING ARM

€ 49.00

33040

330401101
ref: 33040

ADJUSTER-CHAIN

€ 20.00

33040A

330401102
ref: 33040A

ADJUSTER-CHAIN,LH

€ 11.50

33040B

330401105
ref: 33040B

ADJUSTER-CHAIN,RH

€ 11.50

42036

420361252
ref: 42036

SLEEVE,SWING ARM,L=24

€ 38.00

42036A

420361253
ref: 42036A

SLEEVE,SWING ARM,L=84

€ 47.50

49006

490061218
ref: 49006
FG

BOOT

€ 3.50

55020

550201307
ref: 55020

GUARD,CHAIN

€ 41.00

55020A

550201348
ref: 55020A

GUARD

€ 26.50

92002

920021178
ref: 92002

BOLT,SOCKET,8X20

€ 3.00

92002A

920021334
ref: 92002A

BOLT,SOCKET,8X22

€ 2.50

92002B

920021616
ref: 92002B

BOLT

€ 8.00

92002C

920021626
ref: 92002C

BOLT

€ 3.00

92015

920151413
ref: 92015

NUT,10MM

€ 0.50

92015A

920151724
ref: 92015A

NUT,FLANGED,20MM

€ 10.50

92015B

920151771
ref: 92015B

NUT

€ 35.00

92045

920451148
ref: 92045

BEARING-BALL

€ 25.00

92046

920461111
ref: 92046

BEARING-NEEDLE,BM2817

€ 21.50

92049

920491181
ref: 92049

SEAL-OIL

€ 7.50

92150

921501260
ref: 92150

BOLT

€ 4.50

92150A

921501267
ref: 92150A

BOLT,SOCKET,10X25

€ 3.50

92160

921601157
ref: 92160
ARFGFRGRITSDSPSTUK

DAMPER,SWING ARM

€ 31.00
