GEAR CHANGE MECHANISM

ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

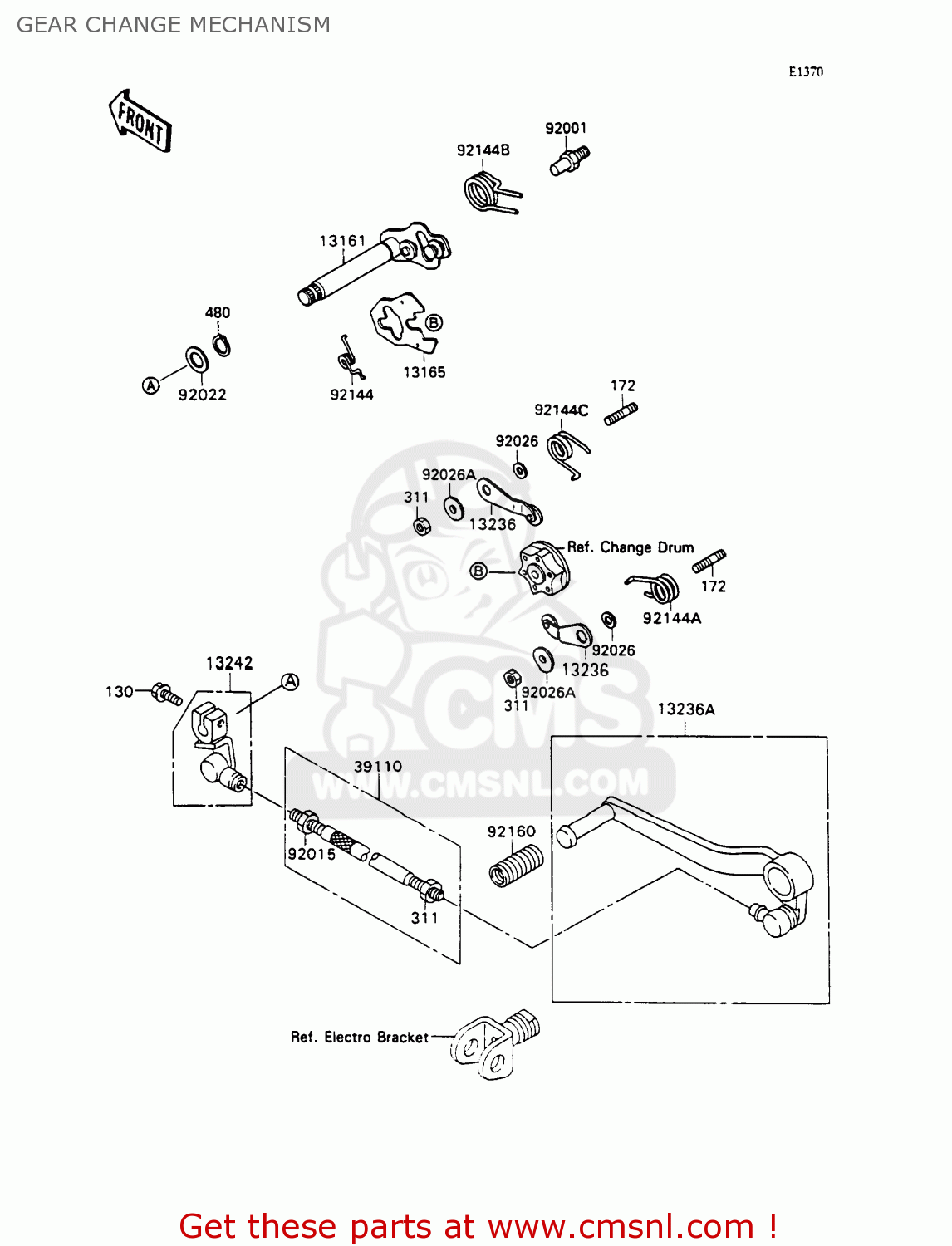

Gear change mechanism diagram ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

172

172G0612
ref: 172

BOLT-STUD,6X12

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611168
ref: 13161

LEVER-COMP-CHANGE SHA

€ 58.00

13165

131651120
ref: 13165

PAWL

€ 9.50

13236

132361149
ref: 13236

LEVER-COMP,POSITION

€ 11.00

13236A

132361204
ref: 13236A

LEVER-COMP,CHANGE PED

€ 47.00

13242

132421278
ref: 13242

LEVER-ASSY-CHANGE,LIN

€ 26.00

39110

391101089
ref: 39110

ROD-ASSY-TIE

€ 9.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92015

920151125
ref: 92015

NUT,6MM

€ 2.50

92022

920221496
ref: 92022

WASHER,13.3X20X1

€ 2.50

92026

92026094
ref: 92026

WASHER,THRUST

€ 6.50

92026A

920261217
ref: 92026A

SPACER

€ 3.50

92144

921441029
ref: 92144

SPRING

€ 5.00

92144A

921441030
ref: 92144A

SPRING,NEWTRAL LEVER

€ 3.00

92144B

921441074
ref: 92144B

SPRING,CHANGE PEDAL R

€ 6.50

92144C

921441429
ref: 92144C

SPRING

€ 2.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
