CARBURETOR

ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

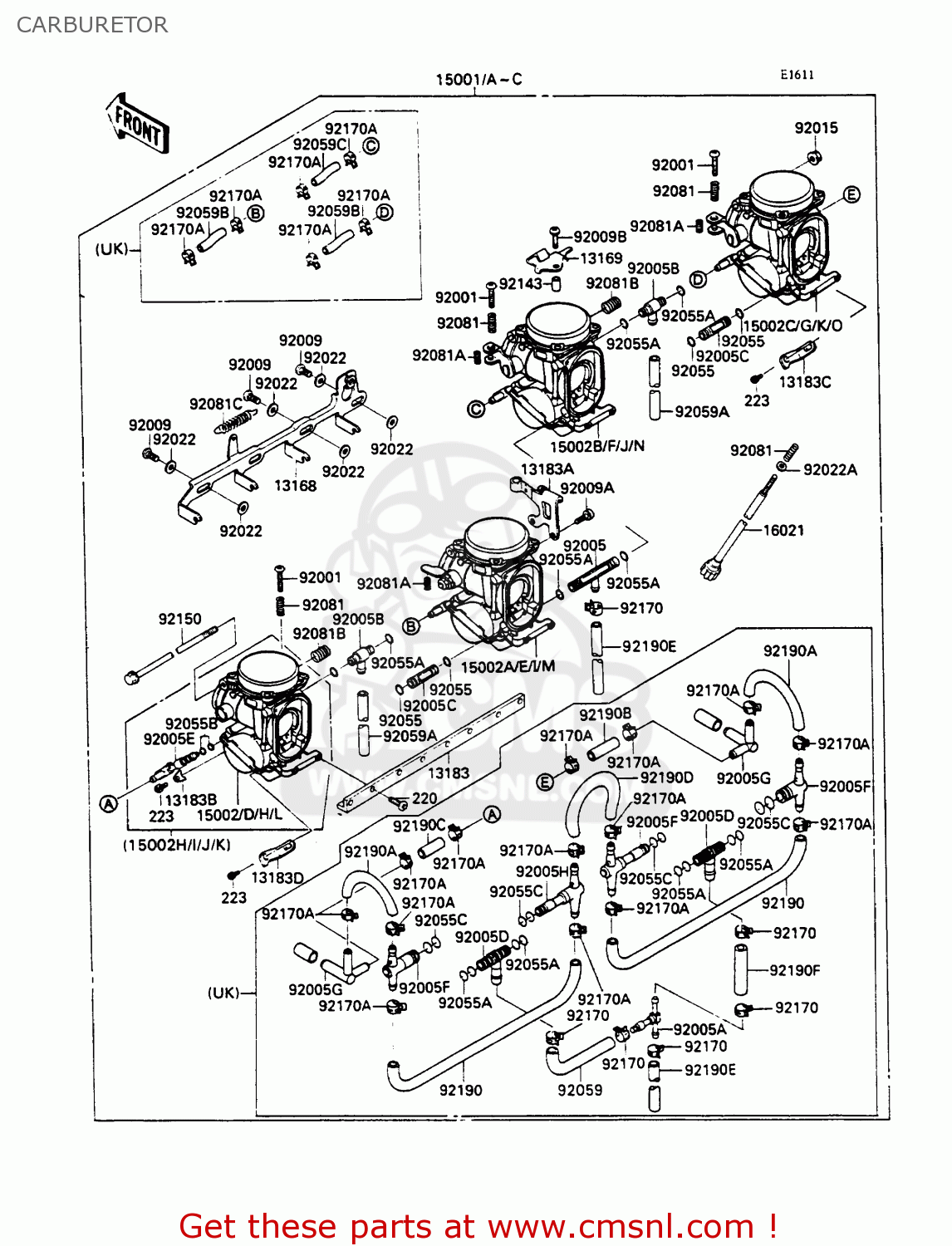

Carburetor diagram ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

CARBURETOR ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
CARBURETOR ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
CARBURETOR ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13168
131681405
ref: 13168
LEVER,STARTER
€ 87.00
13169
131691965
ref: 13169
PLATE,STARTER CABLE
131691965
€ 26.50
13183
131831321
ref: 13183
PLATE,CARBURETOR,STAY
131831321
€ 59.50
13183A
131831322
ref: 13183A
PLATE,THROTTLE
131831322
€ 24.50
13183B
131831323
ref: 13183B
UK
PLATE,FITTING
€ 7.50
13183C
131831452
ref: 13183C
UK
PLATE,RH
€ 9.50
13183D
131831453
ref: 13183D
UK
PLATE,LH
€ 9.50
15001
150011495
ref: 15001
UK
CARBURETOR-ASSY
€ 2,102.00
15001A
150011496
ref: 15001A
ST
CARBURETOR-ASSY
150011496
€ 1,677.00
15001B
150011497
ref: 15001B
ARFGSD
CARBURETOR-ASSY
€ 1,884.50
15001C
150011501
ref: 15001C
EUFRGRITNRSP
CARBURETOR-ASSY
€ 2,102.00
15002
150021853
ref: 15002
EUFRGRITNRSP
CARBURETOR,LH,OUTSIDE
€ 443.00
15002A
150021854
ref: 15002A
EUFRGRITNRSP
CARBURETOR,LH,INSIDE
€ 443.00
15002B
150021855
ref: 15002B
EUFRGRITNRSP
CARBURETOR,RH,INSIDE
€ 446.00
15002C
150021856
ref: 15002C
EUFRGRITNRSP
CARBURETOR,RH,OUTSIDE
€ 443.00
15002D
150021869
ref: 15002D
ARFGSD
CARBURETOR,LH,OUTSIDE
€ 440.50
15002E
150021870
ref: 15002E
ARFGSD
CARBURETOR,LH,INSIDE
€ 443.00
15002F
150021871
ref: 15002F
ARFGSD
CARBURETOR,RH,INSIDE
€ 443.00
15002G
150021872
ref: 15002G
ARFGSD
CARBURETOR,RH,OUTSIDE
€ 440.50
15002H
150021873
ref: 15002H
UK
CARBURETOR,LH,OUTSIDE
€ 440.50
15002I
150021874
ref: 15002I
UK
CARBURETOR,LH,INSIDE
€ 440.50
15002J
150021875
ref: 15002J
UK
CARBURETOR,RH,INSIDE
€ 440.50
15002K
150021876
ref: 15002K
UK
CARBURETOR,RH,OUTSIDE
€ 440.50
15002L
150021877
ref: 15002L
ST
CARBURETOR,LH,OUTSIDE
€ 443.00
15002M
150021878
ref: 15002M
ST
CARBURETOR,LH,INSIDE
€ 443.00
15002N
150021879
ref: 15002N
ST
CARBURETOR,RH,INSIDE
€ 443.00
15002O
150021880
ref: 15002O
ST
CARBURETOR,RH,OUTSIDE
150021880
€ 419.50
16021
160211131
ref: 16021
SCREW-THROTTLE STOP
160211131
€ 77.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051108
ref: 92005
AREUFGFRGRITNRSDSPST
FITTING,FUEL,T-TYPE
920051108
€ 16.50
92005A
920051119
ref: 92005A
UK
FITTING,T-TYPE
€ 17.50
92005B
920051125
ref: 92005B
FITTING,T-TYPE
920051125
€ 18.00
92005C
920051157
ref: 92005C
AREUFGFRGRITNRSDSPST
FITTING
€ 25.00
92005D
920051190
ref: 92005D
UK
FITTING,T-TYPE
920051190
€ 17.50
92005E
920051191
ref: 92005E
UK
FITTING,T-TYPE
€ 17.50
92005F
920051192
ref: 92005F
UK
FITTING,T-TYPE
€ 17.50
92005G
920051193
ref: 92005G
UK
FITTING
€ 12.00
92005H
920051200
ref: 92005H
UK
FITTING
€ 18.50
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091446
ref: 92009B
SCREW,4X18
920091446
€ 4.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92055
920551004
ref: 92055
AREUFGFRGRITNRSDSPST
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
AREUFGFRGRITNRSDSPST
RING-O,FUEL FITTING
920551223
€ 3.50
92055A
920551223
ref: 92055A
UK
RING-O,FUEL FITTING
920551223
€ 3.50
92055B
920551427
ref: 92055B
UK
RING-O,4.5X1.5
920551427
€ 3.00
92055C
920551454
ref: 92055C
UK
RING-O
920551454
€ 4.00
92059
920591236
ref: 92059
UK
TUBE,FUEL
€ 25.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
223
223C0414
ref: 223
UK
SCREW-PAN-WS-CROS
€ 2.50
92059A
920591975
ref: 92059A
TUBE,6.5X9.5X100
€ 5.50
92059B
920591976
ref: 92059B
UK
TUBE,4X10X59
920591976
€ 9.00
92059C
920591977
ref: 92059C
UK
TUBE,4X10X70
920591977
€ 9.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081C
920811762
ref: 92081C
SPRING,STARTER LEVER
920811762
€ 14.00
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
921431265
€ 3.00
92150
921501211
ref: 92150
BOLT,5X305
921501211
€ 17.50
92170
921701051
ref: 92170
AREUFGFRGRITNRSDSPST
CLAMP,TUBE
921701051
€ 5.50
92170
921701051
ref: 92170
UK
CLAMP,TUBE
921701051
€ 5.50
92170A
921701054
ref: 92170A
UK
CLAMP,TUBE
921701054
€ 5.00
92190
921901030
ref: 92190
UK
TUBE,L=200
921901030
€ 9.00
92190A
921901031
ref: 92190A
UK
TUBE,L=125
€ 9.00
92190B
921901032
ref: 92190B
UK
TUBE,L=40
921901032
€ 3.50
92190C
921901033
ref: 92190C
UK
TUBE,L=25
€ 9.00
92190D
921901043
ref: 92190D
UK
TUBE
€ 13.00
92190E
921901049
ref: 92190E
TUBE,7.3X12.5X320
€ 16.00
92190F
921901053
ref: 92190F
UK
TUBE,7.3X12.5X80
€ 3.50
