STARTER MOTOR

ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

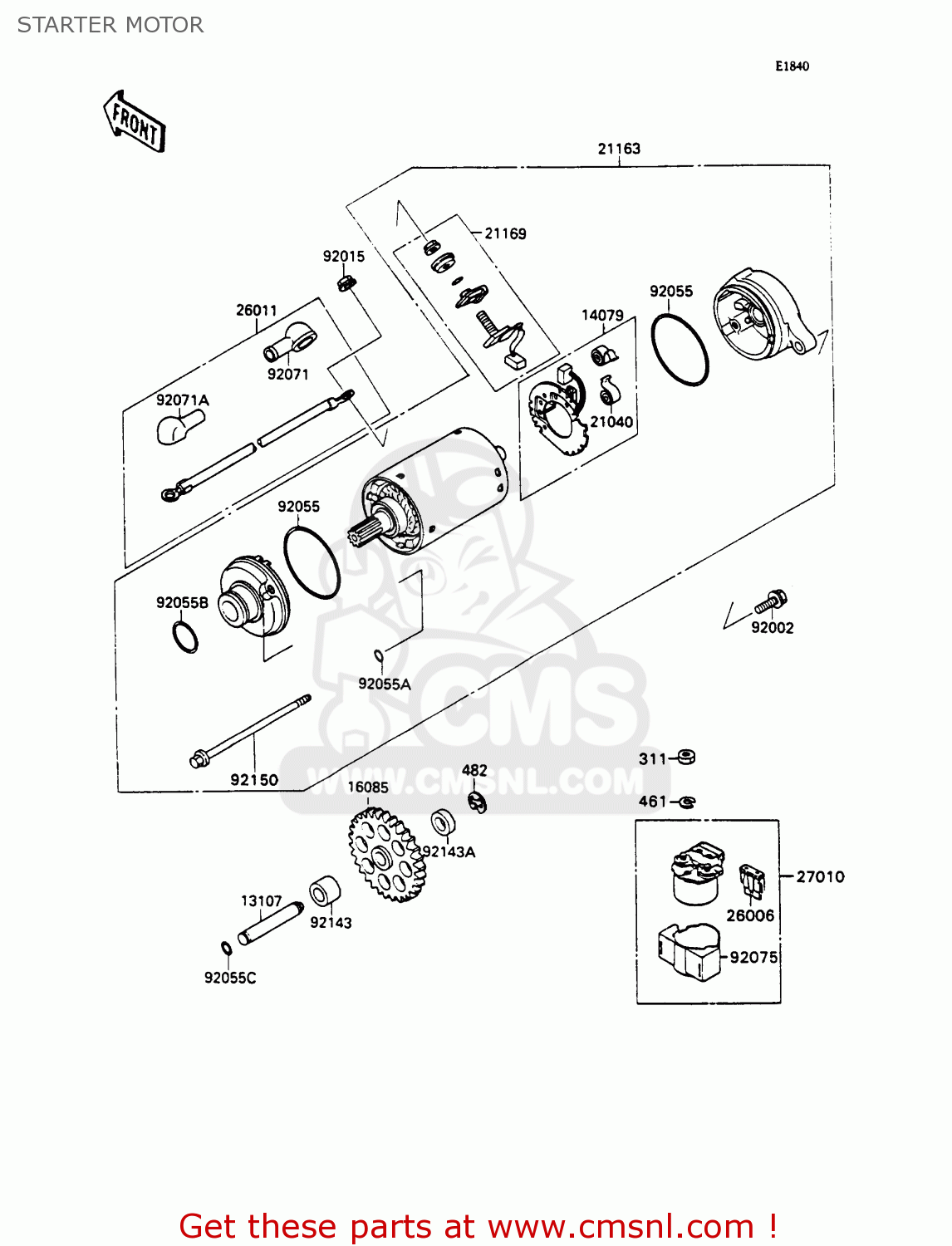

Starter motor diagram ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

STARTER MOTOR ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
STARTER MOTOR ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
STARTER MOTOR ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
482
482K9000
ref: 482
CIRCLIP-TYPE-E,9MM
482K9000
€ 2.50
13107
131071187
ref: 13107
SHAFT,IDLE GEAR
131071187
€ 12.00
14079
140791056
ref: 14079
HOLDER-ASSY,CARBON BR
€ 31.50
16085
160851104
ref: 16085
GEAR,IDLE
160851104
€ 90.50
21040
210401051
ref: 21040
SPRING-BRUSH
210401051
€ 1.50
21163
211631151
ref: 21163
STARTER-ELECTRIC
€ 457.00
21169
211691058
ref: 21169
TERMINAL,STARTER
211691058
€ 44.00
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26011
260111452
ref: 26011
WIRE-LEAD
€ 49.50
27010
270101213
ref: 27010
SWITCH,MAGNETIC
270101213
€ 111.00
92002
920011947
ref: 92002
BOLT,6X20
920011947
€ 3.00
92015
920151623
ref: 92015
NUT
920151623
€ 3.00
92055
920551260
ref: 92055
RING-O,62MM
920551260
€ 7.50
92055A
920551261
ref: 92055A
RING-O,4.5MM
920551261
€ 2.00
92055B
920551262
ref: 92055B
RING-O,24.4X3.1
920551262
€ 8.50
92055C
920551386
ref: 92055C
RING-O,ID=9.5
920551386
€ 2.50
92071
920711120
ref: 92071
GROMMET,STARTER TERMI
920711120
€ 8.50
92071A
920711121
ref: 92071A
GROMMET,TERMINAL
€ 8.00
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
920751863
€ 14.00
92143
921431030
ref: 92143
COLLAR,12.1X20X14.5
€ 4.50
92143A
921431031
ref: 92143A
COLLAR,12.1X20X6.5
€ 4.50
92150
921501237
ref: 92150
BOLT
921501237
€ 7.00
