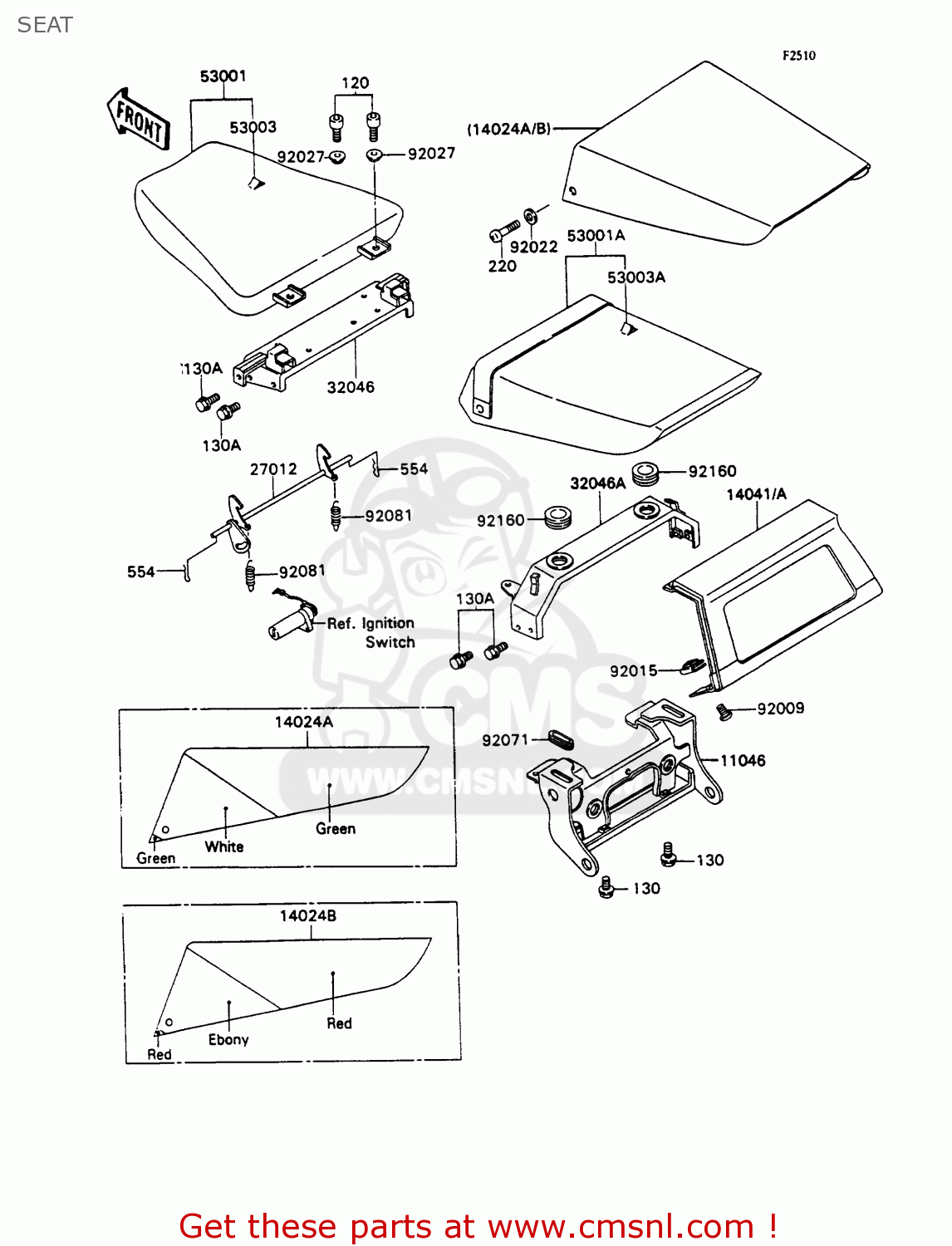

SEAT

ref

part #

description

quantity

120

120S0616
ref: 120

BOLT-SOCKET,6X16

€ 1.00

130

130H0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

130A

130H0614
ref: 130A

BOLT-FLANGED,6X14

€ 0.50

220

220C0610
ref: 220

SCREW-PAN-CROS,6X10

€ 1.00

554

554A0600
ref: 554

PIN-SNAP,SIDE STAND

€ 0.50

11046

110461539
ref: 11046

BRACKET,SEAT COVER

€ 44.00

14024A

1402451557F
ref: 14024A

COVER,SINGLE SEAT,L.G

€ 213.00

14024B

140245156B1
ref: 14024B

COVER,SINGLE SEAT,F.R

€ 190.00

14041

140411094B1
ref: 14041

COVER-COMP,SEAT,F.RED

€ 65.50

14041A

1404110947F
ref: 14041A

COVER-COMP,SEAT,L.GRE

€ 65.50

27012

270121400
ref: 27012

HOOK,SEAT

€ 20.50

32046

320461325
ref: 32046

BRACKET-SEAT,CNT

€ 55.00

32046A

320461326
ref: 32046A

BRACKET-SEAT,RR

€ 43.00

53001

530011573MA
ref: 53001

SEAT-ASSY,FR,BLACK

€ 223.50

53001A

530011574MA
ref: 53001A

SEAT-ASSY,RR,W/BAND,B

€ 215.00

53003

530031218MA
ref: 53003

LEATHER,FRONT SEAT,BL

€ 87.00

53003A

530031219MA
ref: 53003A

LEATHER,REAR SEAT,BLA

€ 59.50

92009

920091301
ref: 92009

SCREW,5X16

€ 0.50

92015

920151573
ref: 92015

NUT,5MM

€ 4.50

92022

92022183
ref: 92022

WASHER,6.2X11X1.5

€ 2.50

92027

92027252
ref: 92027

COLLAR,L=6.5

€ 3.50

92071

920711187
ref: 92071

GROMMET

€ 3.00

92081

920811580
ref: 92081

SPRING,HOOK RETURN

€ 4.50

92160

921601012
ref: 92160

DAMPER

€ 3.50

all assemblies
