CHASSIS ELECTRICAL EQUIPMENT

ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

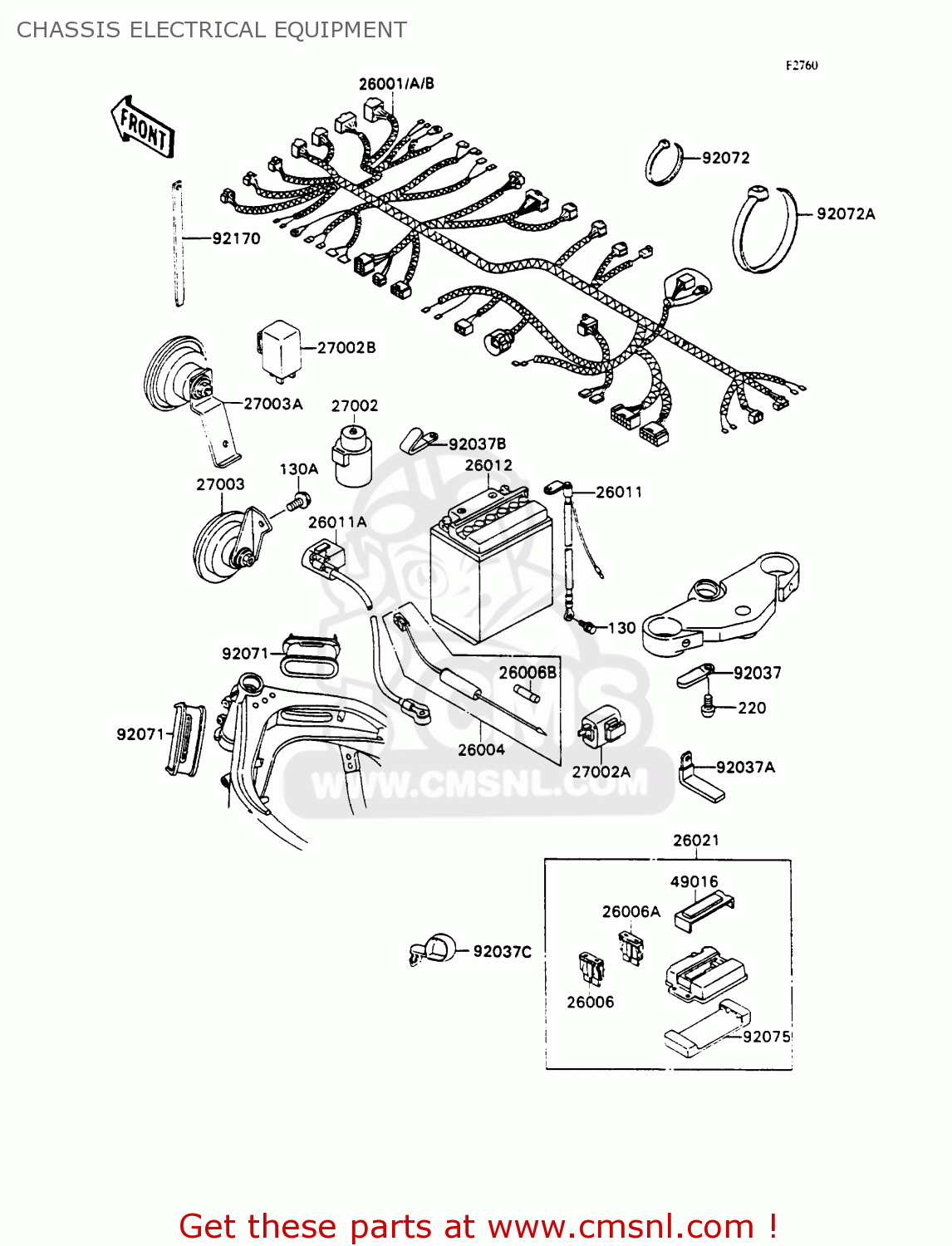

Chassis electrical equipment diagram ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

CHASSIS ELECTRICAL EQUIPMENT ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
CHASSIS ELECTRICAL EQUIPMENT ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
220
220C0510
ref: 220
SCREW-PAN-CROS
220C0510
€ 2.50
26001
260011995
ref: 26001
AREUFGFRGRNRSDSPUK
HARNESS,MAIN
260011995
€ 244.50
26001A
260011996
ref: 26001A
IT
HARNESS,MAIN
€ 211.50
26001B
260011997
ref: 26001B
ST
HARNESS,MAIN
260011997
€ 211.50
26004
260041055
ref: 26004
AREUFGFRGRITNRSDSPUK
FUSE-ASSY
260041055
€ 10.50
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26006A
260061007
ref: 26006A
FUSE, 10A-R
260061007
€ 3.00
26006B
260061056
ref: 26006B
AREUFGFRGRITNRSDSPUK
FUSE,20A,L=30
260061056
€ 3.00
26011
260111189
ref: 26011
WIRE-LEAD,BATTERY GRO
€ 21.50
26011A
260111450
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 13.50
26012
260121177
ref: 26012
BATTERY,12V 14AH,YB14
€ 96.00
26021
260211070
ref: 26021
JUNCTION BOX
260211070
€ 106.50
27002
270021051
ref: 27002
AREUFGFRGRITNRSDSPUK
RELAY-ASSY
270021051
€ 32.00
27002A
270021059
ref: 27002A
AREUFRGRITNRSPSTUK
RELAY-ASSY,TURN SIGNA
270021059
€ 43.50
27002B
270021061
ref: 27002B
FGSD
RELAY-ASSY,TURN SIGNA
270021061
€ 57.00
27003
270031312
ref: 27003
HORN
€ 45.00
27003A
270031318
ref: 27003A
IT
HORN
€ 46.50
49016
490161124
ref: 49016
COVER-SEAL,FUSE
490161124
€ 6.00
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92037A
920371680
ref: 92037A
CLAMP
€ 1.50
92037B
920371877
ref: 92037B
CLAMP
920371877
€ 3.00
92037C
920371903
ref: 92037C
CLAMP
920371903
€ 5.00
92071
920711180
ref: 92071
GROMMET,HARNESS,LH
€ 13.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92170
921701114
ref: 92170
CLAMP
921701114
€ 5.00
