RADIATOR

ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

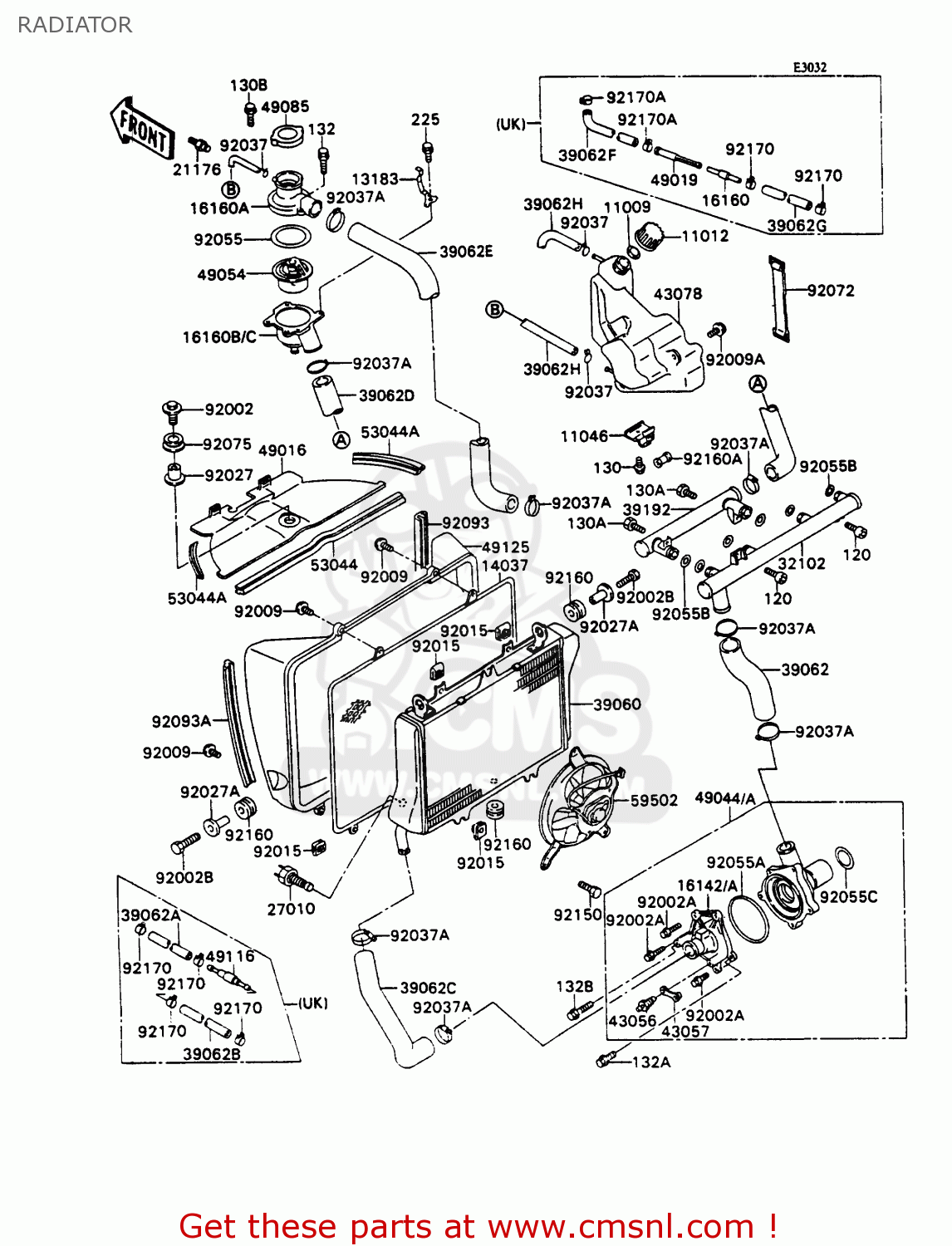

Radiator diagram ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

RADIATOR ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
RADIATOR ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
RADIATOR ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11046
110461580
ref: 11046
BRACKET
110461580
€ 42.00
13183
131831472
ref: 13183
PLATE
131831472
€ 2.50
14037
140371115
ref: 14037
SCREEN
140371115
€ 54.50
16142
161421092
ref: 16142
AREUFGFRGRITNRSDSPST
COVER-PUMP
€ 46.50
16142A
161421096
ref: 16142A
UK
COVER-PUMP
€ 46.50
16160
161601151
ref: 16160
UK
BODY,FILTER
161601151
€ 6.50
16160A
161601152
ref: 16160A
BODY,UPP
€ 57.00
16160B
161601153
ref: 16160B
AREUFGFRGRITNRSDSPST
BODY
161601153
€ 48.00
16160C
161601155
ref: 16160C
UK
BODY,THERMOSTAT
€ 37.50
21176
211761054
ref: 21176
SENSOR,WATER
211761054
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
270101202
€ 74.00
32102
321021243
ref: 32102
PIPE,COOLING
321021243
€ 83.50
39060
390601088
ref: 39060
RADIATOR
390601088
€ 674.50
39062
390621197
ref: 39062
HOSE-COOLING
390621197
€ 17.00
39062A
390621309
ref: 39062A
UK
HOSE-COOLING
€ 5.50
39062B
390621313
ref: 39062B
UK
HOSE-COOLING,PUMP-CHE
€ 5.50
39062C
390621324
ref: 39062C
HOSE-COOLING
390621324
€ 37.50
39062D
390621325
ref: 39062D
HOSE-COOLING
390621325
€ 37.50
39062E
390621326
ref: 39062E
HOSE-COOLING
390621326
€ 24.00
39062F
390621327
ref: 39062F
UK
HOSE-COOLING,THERMO-F
€ 9.00
39062G
390621349
ref: 39062G
UK
HOSE-COOLING
€ 3.50
39062H
390621360
ref: 39062H
HOSE-COOLING
€ 16.00
39192
391921012
ref: 39192
PIPE-WATER
€ 66.00
43056
430561051
ref: 43056
BREATHER-BRAKE
430561051
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43078
430781097
ref: 43078
RESERVOIR
430781097
€ 41.00
49016
490161142
ref: 49016
COVER-SEAL
€ 29.00
49019
490191068
ref: 49019
UK
FILTER-FUEL
490191068
€ 4.00
120
120S0610
ref: 120
BOLT-SOCKET
120S0610
€ 1.50
130
130J0608
ref: 130
BOLT-FLANGED,6X8
€ 2.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
49044
490441065
ref: 49044
AREUFGFRGRITNRSDSPST
PUMP-WATER
490441065
€ 181.50
49044A
490441066
ref: 49044A
UK
PUMP-WATER
€ 181.50
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851062
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49116
491161076
ref: 49116
UK
VALVE-ASSY,CHECK
€ 134.00
49125
491251056
ref: 49125
SHROUD
491251056
€ 31.00
53044
530441180
ref: 53044
TRIM
€ 15.00
53044A
530441220
ref: 53044A
TRIM
530441220
€ 4.50
59502
595021083
ref: 59502
FAN-ASSY
595021083
€ 655.00
92002
920021135
ref: 92002
BOLT,6X25
920021135
€ 2.50
92002A
920021392
ref: 92002A
BOLT,6X22
920021392
€ 3.00
92002B
920021838
ref: 92002B
BOLT,FLANGED,8X40
920021838
€ 4.00
92009
920091256
ref: 92009
SCREW,6X22,BLACK
920091256
€ 1.50
92009A
920091308
ref: 92009A
SCREW,6X14
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92027
920271062
ref: 92027
COLLAR,SEAT
920271062
€ 4.50
92027A
920271134
ref: 92027A
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371985
ref: 92037A
CLAMP,COOLING HOSE
€ 7.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551271
ref: 92055A
RING-O,WATER PUMP
920551271
€ 7.00
92055B
920551282
ref: 92055B
RING-O
920551282
€ 3.00
92055C
920551378
ref: 92055C
RING-O,WATER PUMP
920551378
€ 5.00
92072
920721253
ref: 92072
BAND,L=200
920721253
€ 13.50
92075
920751123
ref: 92075
DAMPER,RUBBER
920751123
€ 3.00
92093
920931282
ref: 92093
SEAL
€ 4.00
92093A
920931283
ref: 92093A
SEAL
920931283
€ 6.50
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92160
921601119
ref: 92160
DAMPER
921601119
€ 3.00
92160A
921601129
ref: 92160A
DAMPER
€ 3.00
92170
920372074
ref: 92170
UK
CLAMP
920372074
€ 1.00
92170A
921701118
ref: 92170A
UK
CLAMP
921701118
€ 5.00
130B
130J0614
ref: 130B
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132A
132J0630
ref: 132A
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132B
132J0650
ref: 132B
BOLT-FLANGED-SMALL
132J0650
€ 3.00
225
225C0412
ref: 225
SCREW-PAN-WSP-CROS
225C0412
€ 2.00
