MUFFLER(S)

ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

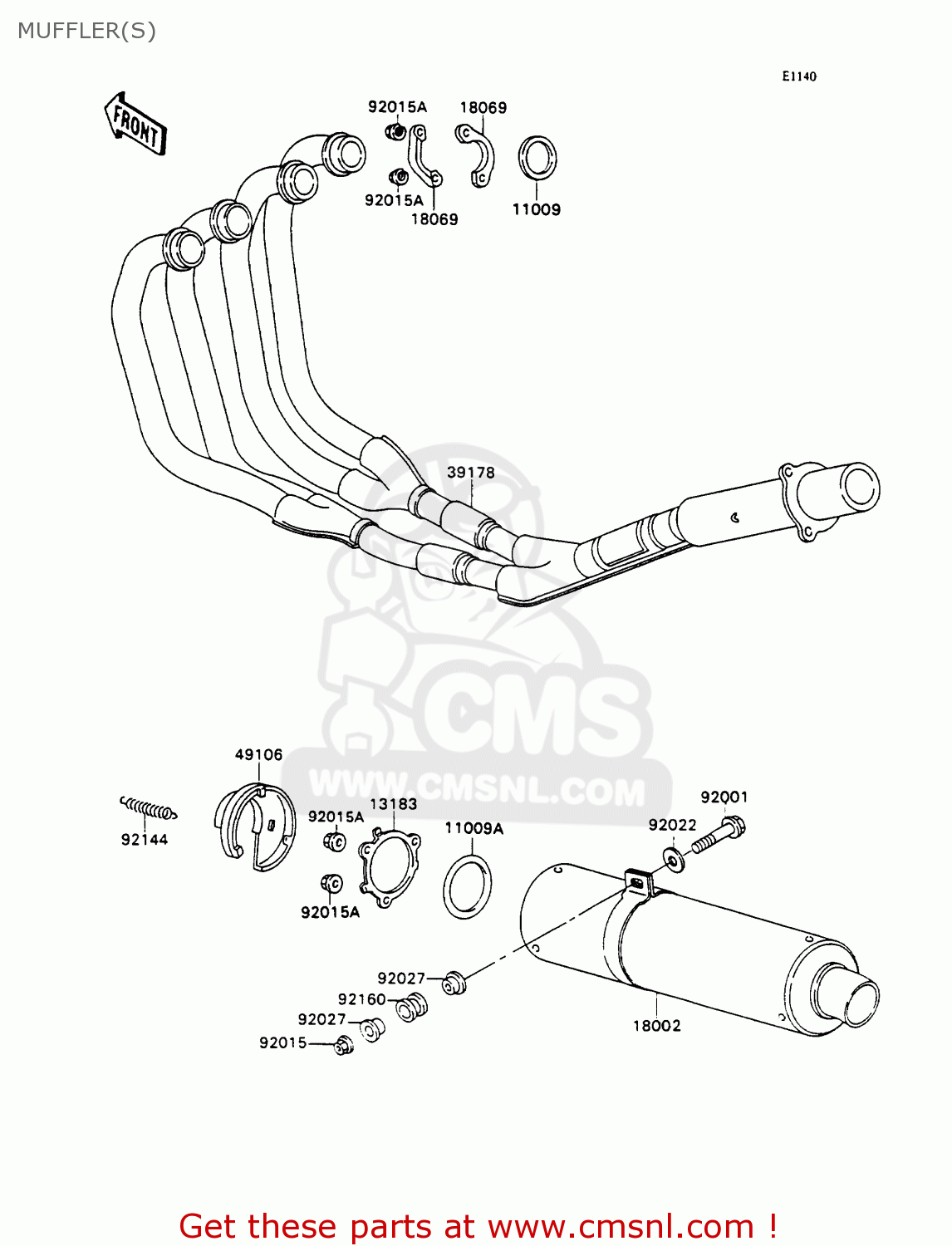

Muffler(s) diagram ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11009

110091906
ref: 11009

GASKET,EXHAUST PIPE H (NAS)

€ 7.00

11009A

110091907
ref: 11009A

GASKET,MUFFLER CONNEC (NAS)

€ 14.50

13183

131831473
ref: 13183

PLATE

€ 8.00

18002

180021924
ref: 18002

BODY-COMP-MUFFLER

€ 451.50

18069

180691072
ref: 18069

HOLDER-EXHAUST PIPE

€ 16.00

39178

391781153
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 875.00

49106

491061113
ref: 49106

COVER-MUFFLER

€ 25.50

92001

920011910
ref: 92001

BOLT,FLANGED,8X35

€ 4.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151380
ref: 92015A

NUT,LOCK,8MM

€ 3.00

92022

920223730
ref: 92022

WASHER,8.5X19X1.2

€ 2.50

92027

920271653
ref: 92027

COLLAR,FLNG,8.8X10.6

€ 7.00

92144

921441386
ref: 92144

SPRING

€ 3.50

92160

921601116
ref: 92160

DAMPER

€ 3.50

MUFFLER(S)

all assemblies
