IGNITION SYSTEM

ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

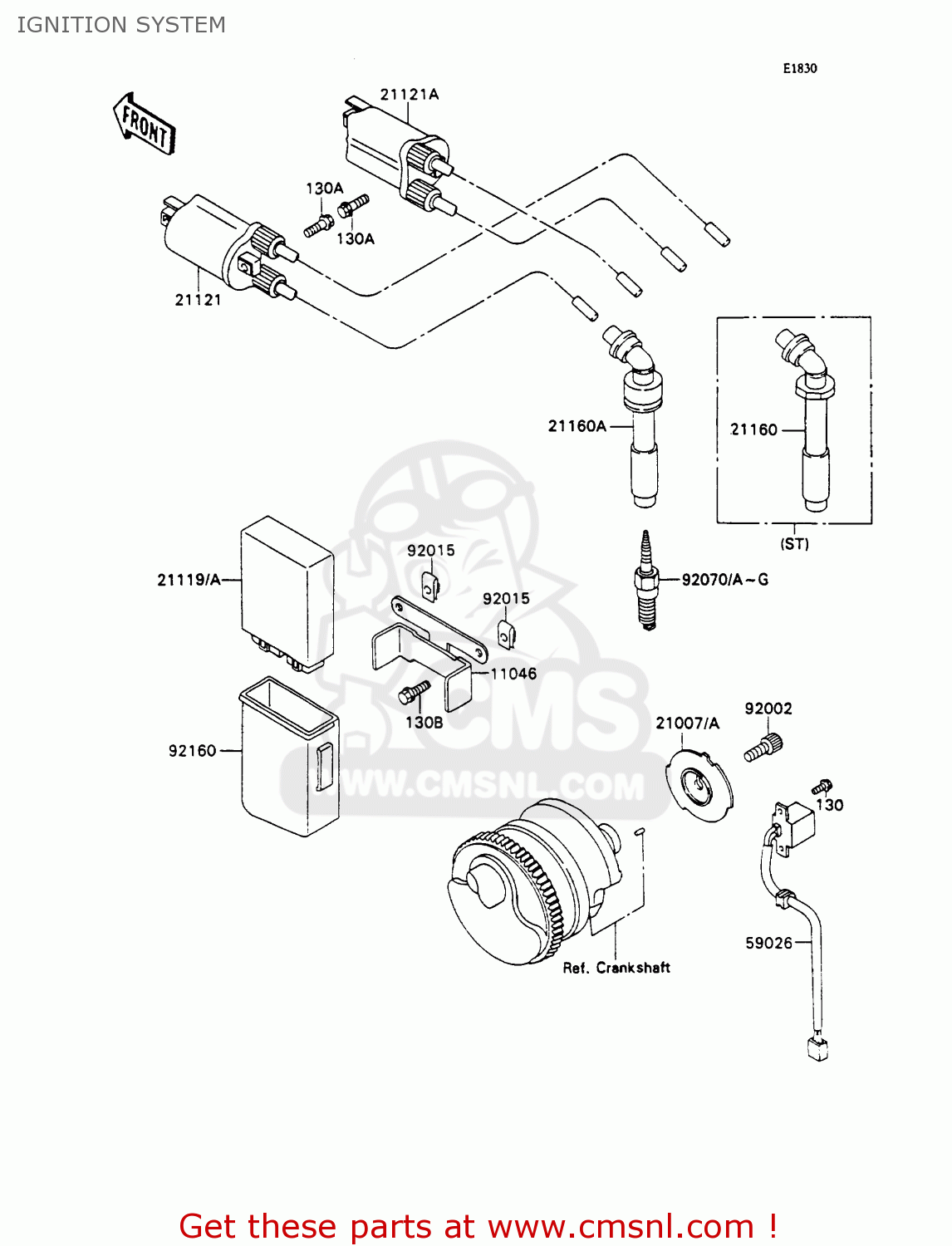

Ignition system diagram ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST

IGNITION SYSTEM ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
IGNITION SYSTEM ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
IGNITION SYSTEM ZX750H1 ZXR750 1989 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11046
110461768
ref: 11046
BRACKET
€ 8.50
21007
210071190
ref: 21007
AREUFGFRGRITNRSDSPUK
ROTOR,PULSING COIL
210071190
€ 27.00
21007A
210071195
ref: 21007A
ST
ROTOR
210071195
€ 25.00
21119
211191262
ref: 21119
AREUFGFRGRITNRSDSPUK
IGNITER
211191262
€ 580.50
21119A
211191281
ref: 21119A
ST
IGNITER
€ 580.50
21121
211211172
ref: 21121
COIL-IGNITION,#1&#4
211211172
€ 110.50
21121A
211211173
ref: 21121A
COIL-IGNITION,#2&#3
211211173
€ 116.50
21160
211601068
ref: 21160
ST
CAP-ASSY-PLUG
211601068
€ 37.00
21160A
211601078
ref: 21160A
AREUFGFRGRITNRSDSPUK
CAP-ASSY-PLUG
211601078
€ 47.00
59026
590261096
ref: 59026
COIL-PULSING
590261096
€ 89.00
92002
920021178
ref: 92002
BOLT,SOCKET,8X20
920021178
€ 3.00
92015
920151602
ref: 92015
NUT,6MM
920151602
€ 4.50
92070
920701142
ref: 92070
IT
C9E (NGK SPARKPLUG)
920701142
€ 8.50
92070A
920701143
ref: 92070A
AREUFGFRGRNRSDSPSTUK
CR9E (NGK SPARKPLUG)
€ 8.50
92070B

ref: 92070B
IT
92070C

ref: 92070C
AREUFGFRGRNRSDSPSTUK
92070D
920701168
ref: 92070D
IT
C8E (NGK SPARKPLUG)
920701168
€ 8.50
92070E
920701169
ref: 92070E
AREUFGFRGRNRSDSPSTUK
CR8E (NGK SPARKPLUG)
920701169
€ 8.50
92070F

ref: 92070F
IT
92070G

ref: 92070G
AREUFGFRGRNRSDSPSTUK
92160
921601137
ref: 92160
DAMPER
€ 20.50
130
130G0512
ref: 130
BOLT-FLANGED
130G0512
€ 1.00
130A
130G0620
ref: 130A
BOLT,FLANGED,6X20
130G0620
€ 2.50
130B
130J0612
ref: 130B
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
