Genuine ZX Kawasaki Parts delivered quickly!
home
VALVE
ZX500A1 1985 EUROPE NR / KPH

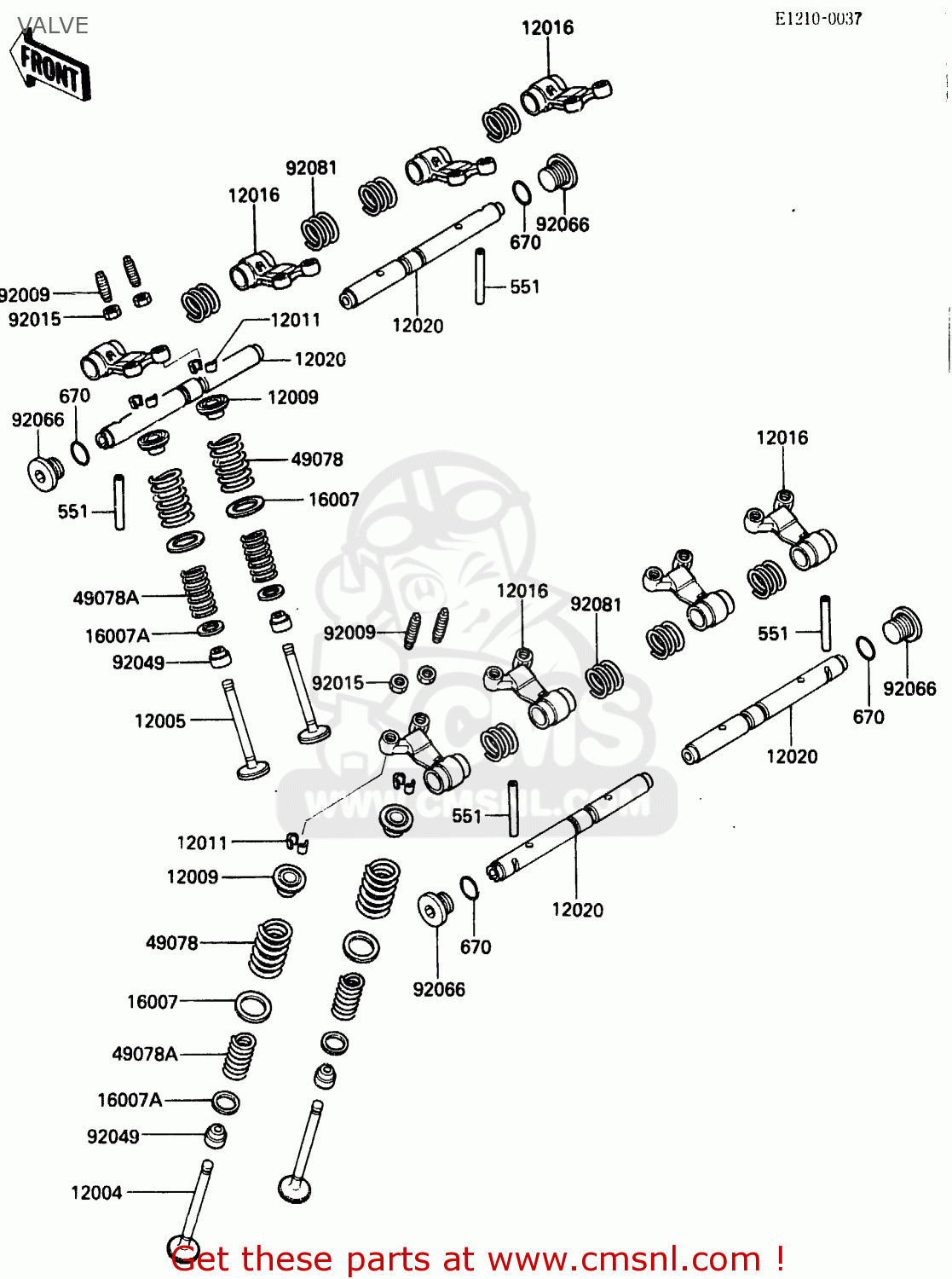

Valve diagram ZX500A1 1985 EUROPE NR / KPH
VALVE ZX500A1 1985 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
12004
120041064
ref: 12004
VALVE-INTAKE
€ 27.50
12005
120051062
ref: 12005
VALVE-EXHAUST
€ 45.00
12009
120091055
ref: 12009
RETAINER-VALVE SPRING
€ 7.00
12011
120111051
ref: 12011
COLLET
€ 1.50
12016
120161062
ref: 12016
ARM-ROCKER
€ 52.00
12020
120201058
ref: 12020
SHAFT-ROCKER
€ 34.50
16007
160071123
ref: 16007
SEAT-SPRING,16.7X23.5
€ 3.50
16007A
160071124
ref: 16007A
SEAT-SPRING,12.1X16X0
€ 3.00
49078
490781060
ref: 49078
SPRING-ENGINE VALVE,O
€ 8.00
49078A
490781061
ref: 49078A
SPRING-ENGINE VALVE,I
€ 9.00
92009
920091109
ref: 92009
SCREW,VALVE ADJUST
€ 1.50
92015
920151529
ref: 92015
NUT,5MM
€ 2.50
92049
920491218
ref: 92049
SEAL-OIL,VSB58.558
€ 3.50
92066
920661192
ref: 92066
PLUG,14X11.5
€ 16.00
92081
920811636
ref: 92081
SPRING,ROCKER ARM
€ 10.00
551
551A0540
ref: 551
PIN-DOWEL
€ 2.50
670
670B2015
ref: 670
O RING,15MM
€ 1.00
