FRAME FITTING
ZX500A1 1985 EUROPE NR / KPH

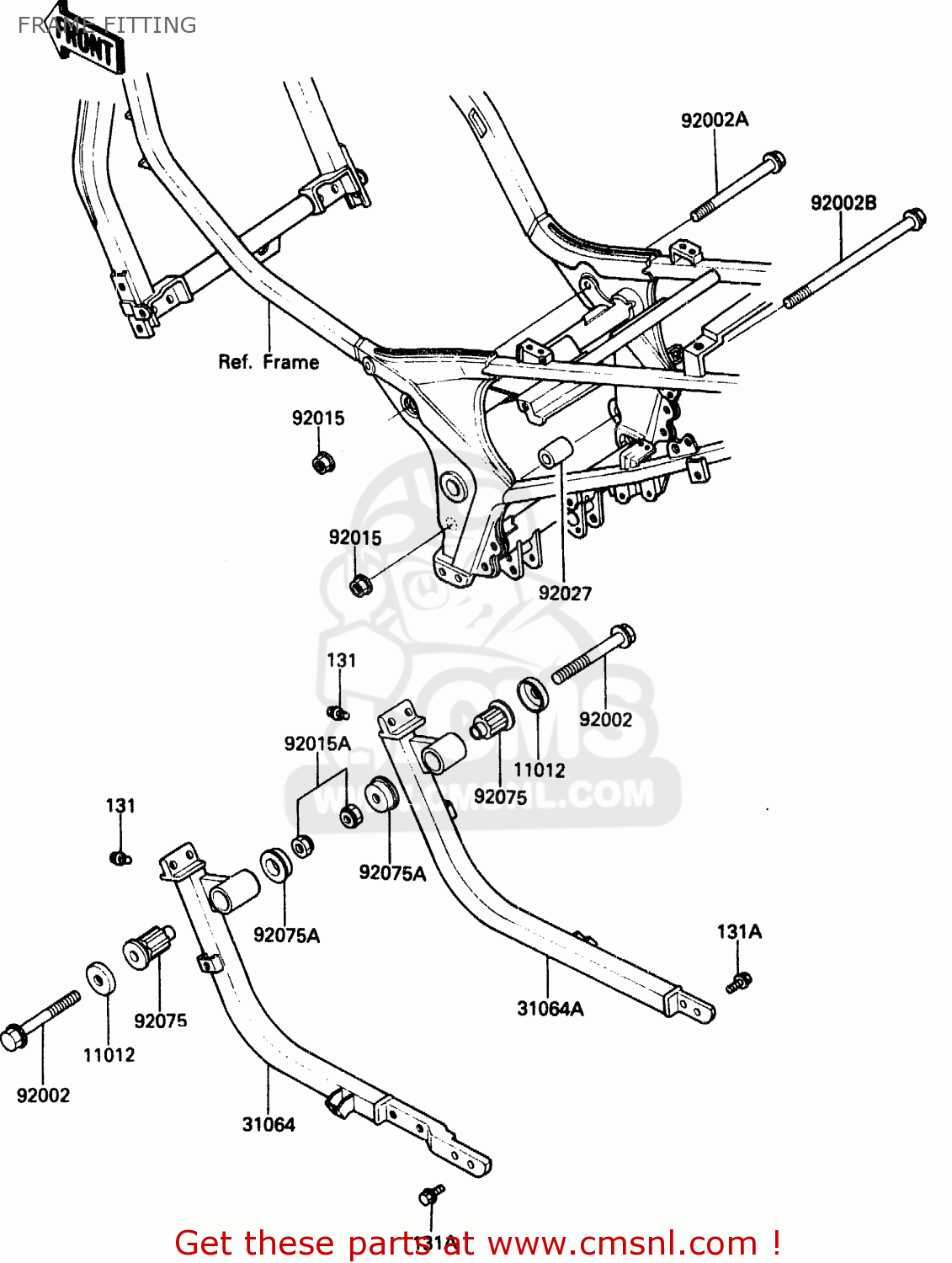

Frame fitting diagram ZX500A1 1985 EUROPE NR / KPH
FRAME FITTING ZX500A1 1985 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
11012
110121434
ref: 11012
CAP,ENGINE BRAKET
€ 4.00
31064
310641061
ref: 31064
PIPE-COMP,SIDE FRAME,
€ 97.50
31064A
310641062
ref: 31064A
PIPE-COMP,SIDE FRAME,
€ 97.50
92002
920021491
ref: 92002
BOLT,FLANGED,10X105
€ 8.00
92002A
920021492
ref: 92002A
BOLT,FLANGED,10X138
€ 9.00
92002B
920021587
ref: 92002B
BOLT
€ 11.50
92015
920151428
ref: 92015
NUT,FLANGED,10MM
€ 3.00
92015A
920151429
ref: 92015A
NUT,10MM
€ 4.50
92027
920271515
ref: 92027
COLLAR,11X22X31.5
€ 9.00
92075
920751377
ref: 92075
DAMPER,ENGINE BRACKET
€ 19.50
92075A
920751462
ref: 92075A
DAMPER,ENGINE BRACKET
€ 11.00
131
131G0820
ref: 131
BOLT-FLANGED,8X20
€ 1.50
131A
131G1020
ref: 131A
BOLT-FLANGED
€ 1.50
