TAIL LAMP
ZX500A1 1985 EUROPE NR / KPH

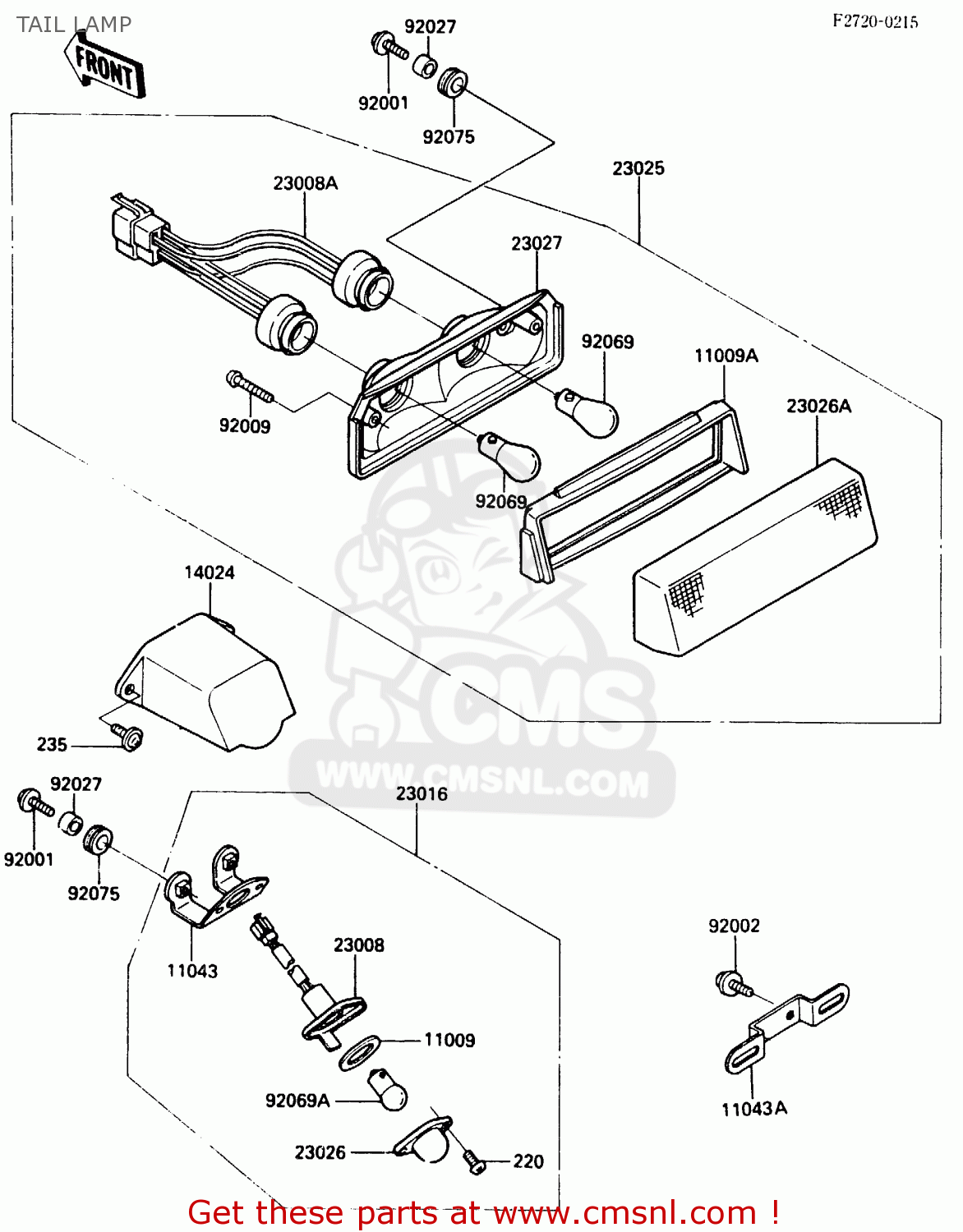

Tail lamp diagram ZX500A1 1985 EUROPE NR / KPH
TAIL LAMP ZX500A1 1985 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091404
ref: 11009A
GASKET,TAIL LAMP (NAS)
€ 13.00
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
€ 10.00
11043A
110431499
ref: 11043A
BRACKET,REFLECTOR
€ 12.00
14024
140251821
ref: 14024
COVER,LICENSE PLATE L
€ 13.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
€ 7.50
23008A
230081225
ref: 23008A
SOCKET-ASSY,TAIL LAMP
€ 29.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 54.50
23025
230251106
ref: 23025
LAMP-TAIL
€ 192.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261056
ref: 23026A
LENS,TAIL LAMP
€ 22.50
23027
230271056
ref: 23027
BODY-COMP-TAIL LAMP
€ 48.00
92001
920011773
ref: 92001
BOLT,6X20
€ 2.50
92002
920021351
ref: 92002
BOLT
€ 2.50
92009
920091056
ref: 92009
SCREW,TAPPING
€ 2.50
92027
92027120
ref: 92027
COLLAR
€ 3.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
92075222
ref: 92075
DAMPER RUBBER,CASE
€ 4.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
235
235C0616
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
