FRONT MASTER CYLINDER
ZX500A1 1985 EUROPE NR / KPH

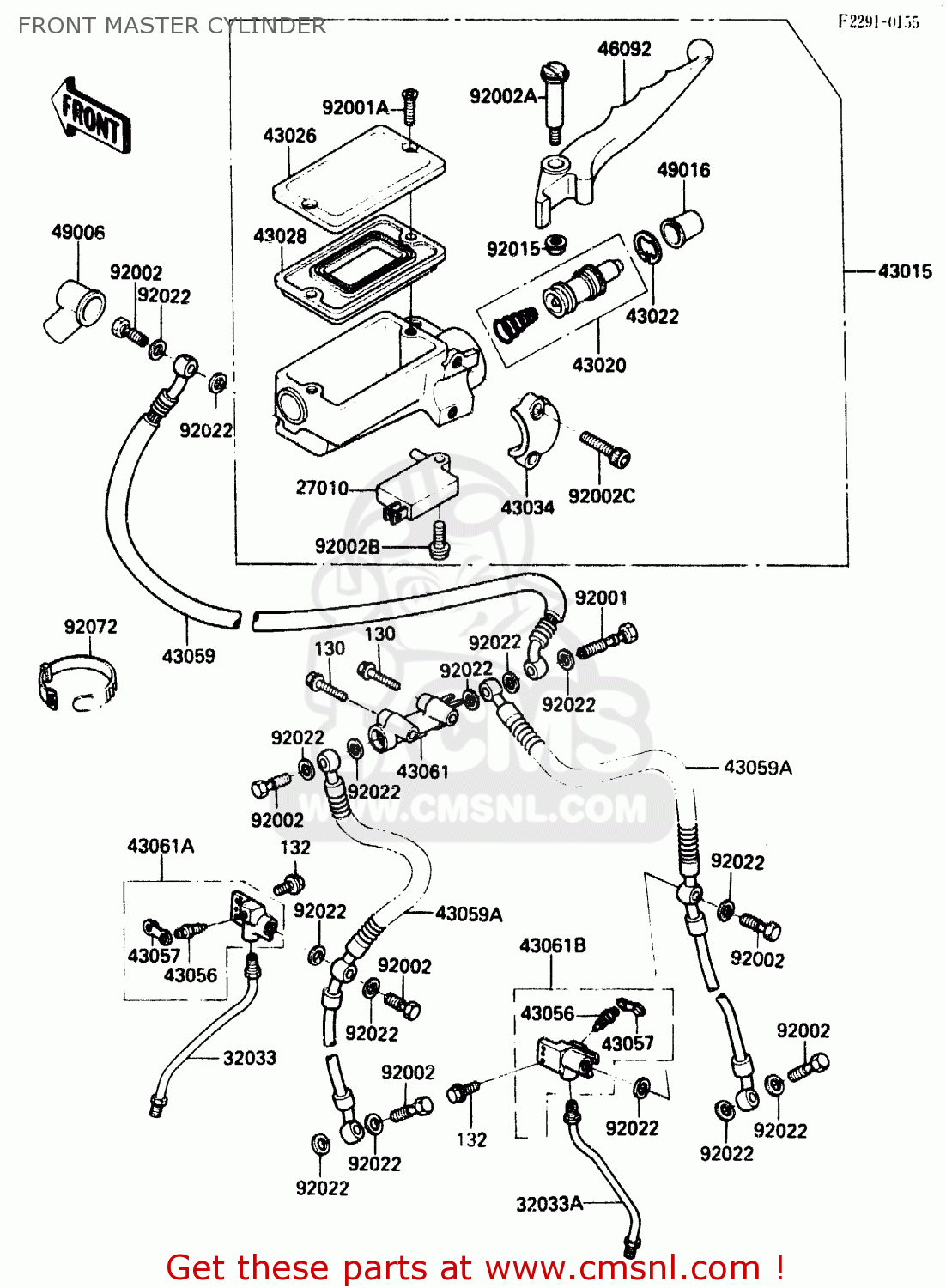

Front master cylinder diagram ZX500A1 1985 EUROPE NR / KPH
FRONT MASTER CYLINDER ZX500A1 1985 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
27010
270101170
ref: 27010
SWITCH,BRAKE
€ 26.00
32033
320331240
ref: 32033
PIPE,BRAKE,FR,LH
€ 20.00
32033A
320331241
ref: 32033A
PIPE,BRAKE,FR,RH
€ 20.00
43015
430151288
ref: 43015
CYLINDER-ASSY-MASTER,
€ 275.00
43020
430201054
ref: 43020
PISTON-COMP-BRAKE,FR
€ 47.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
€ 3.00
43026
430261055
ref: 43026
CAP-BRAKE,FR
€ 25.00
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
€ 15.50
43034
430341053
ref: 43034
HOLDER-BRAKE,MASTER C
€ 26.00
43056
430561051
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
43059
430591296
ref: 43059
HOSE-BRAKE,FR
€ 63.00
43059A
430591297
ref: 43059A
HOSE-BRAKE,FR
€ 99.50
43061
430611004
ref: 43061
JOINT-BRAKE
€ 51.50
43061A
430611057
ref: 43061A
JOINT-BRAKE,FORK.LH
€ 25.00
43061B
430611058
ref: 43061B
JOINT-BRAKE,FORK,RH
€ 27.00
46092
460921117
ref: 46092
LEVER-GRIP,FRONT BRAK
€ 14.00
49006
490061040
ref: 49006
BOOT,DUST
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
€ 7.00
92001
920011203
ref: 92001
BOLT,OIL
€ 8.50
92001A
920011727
ref: 92001A
BOLT,MASTER CYLINDER
€ 2.50
92002
920011900
ref: 92002
BOLT,OIL,L=23
€ 3.50
92002A
920021322
ref: 92002A
BOLT,LEVER SET
€ 8.00
92002B
920021323
ref: 92002B
BOLT
€ 2.50
92002C
920021324
ref: 92002C
BOLT,SOCKET,6X20
€ 5.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92072
92072056
ref: 92072
BAND,RUBBER
€ 3.00
130
130G0660
ref: 130
BOLT-FLANGED,6X60
€ 3.00
132
132H0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
