STARTER MOTOR
ZX500A1 1985 EUROPE NR / KPH

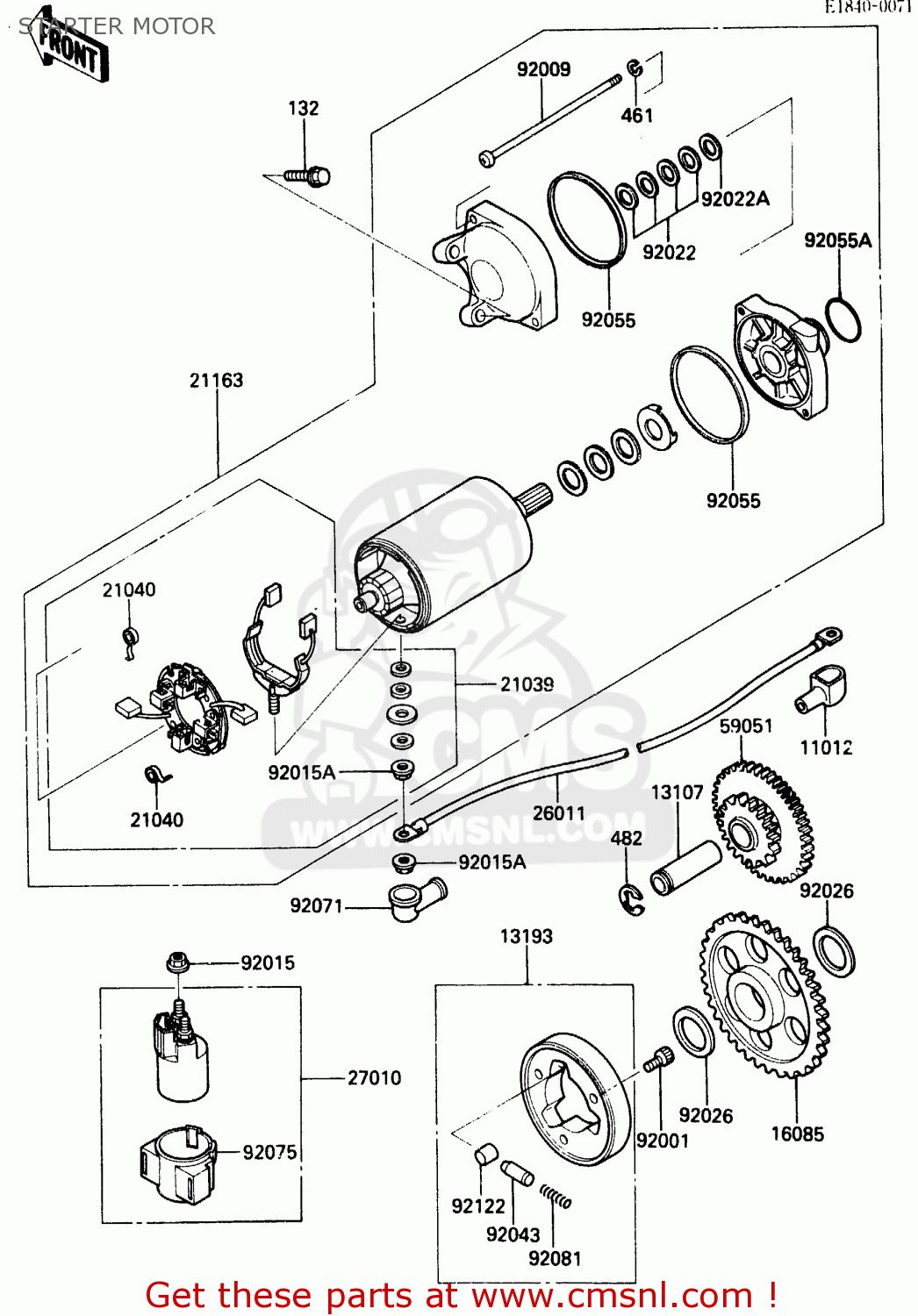

Starter motor diagram ZX500A1 1985 EUROPE NR / KPH
STARTER MOTOR ZX500A1 1985 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
13107
131071144
ref: 13107
SHAFT,IDLE GEAR
€ 10.00
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
16085
160851030
ref: 16085
GEAR,ONEWAY CLUTCH
€ 97.50
21039
210391053
ref: 21039
BRUSH,CARBON
€ 89.50
21040
210401003
ref: 21040
SPRING-BRUSH
€ 6.00
21163
211631072
ref: 21163
STARTER-ELECTRIC
€ 199.00
26011
260111251
ref: 26011
WIRE-LEAD,STARTER MOT
€ 55.50
27010
270101098
ref: 27010
SWITCH,MAGNETIC
€ 115.50
59051
590511138
ref: 59051
GEAR-SPUR,IDLE
€ 99.50
92001
920011424
ref: 92001
BOLT,SOCKET,8X10
€ 3.00
92009
920091397
ref: 92009
SCREW
€ 4.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151476
ref: 92015A
NUT,6MM
€ 2.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
€ 4.00
92026
920261025
ref: 92026
SPACER,25X36X3.2
€ 3.50
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920551086
ref: 92055
O RING,64MM
€ 6.50
92055A
920551276
ref: 92055A
RING-O
€ 6.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92075
21064002
ref: 92075
DAMPER,MAGNETIC SWITC
€ 13.50
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
132
132W0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
482
482J0300
ref: 482
CIRCLIP-TYPE-E
€ 2.00
