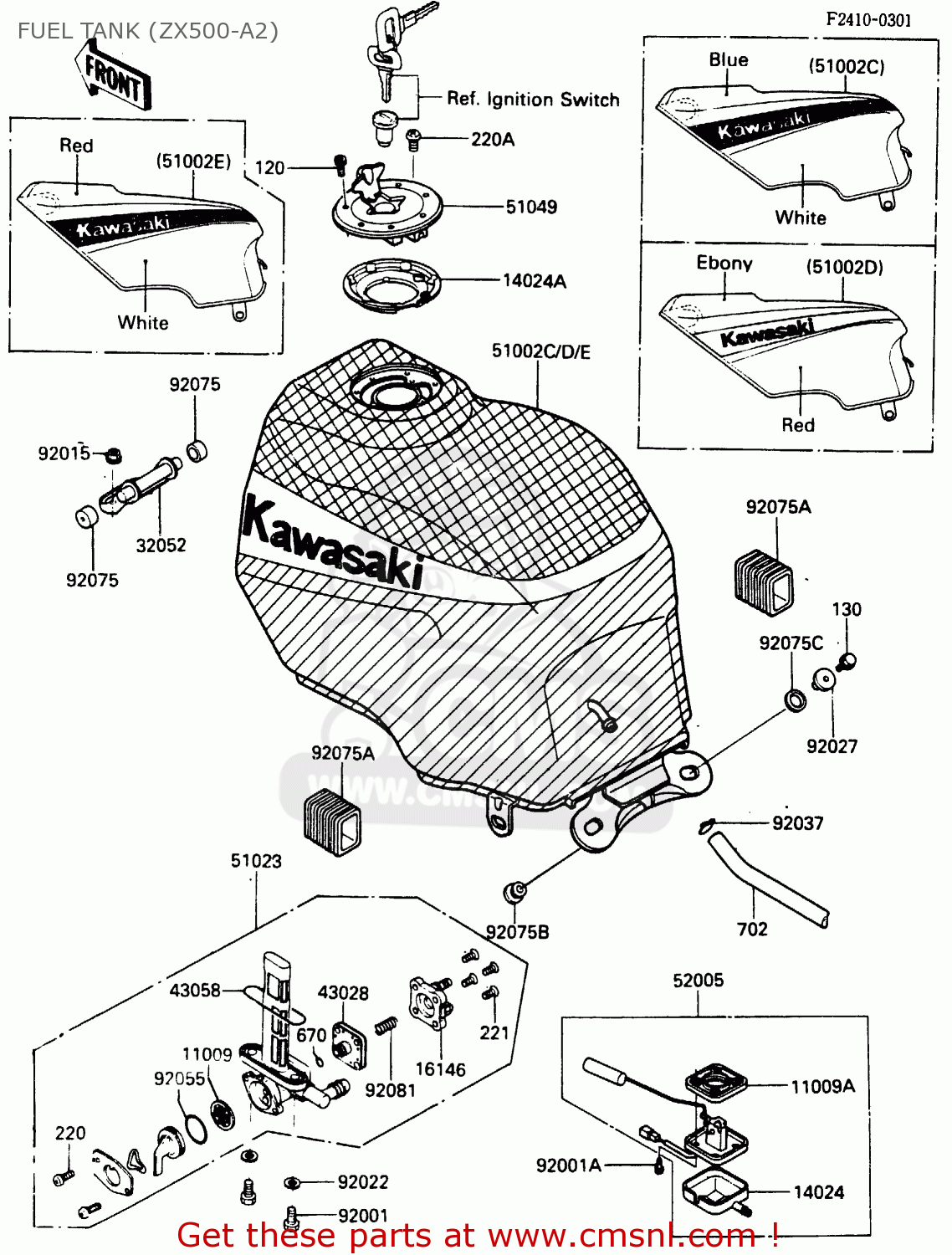

FUEL TANK (ZX500-A2)

ref

part #

description

quantity

11009

110091188
ref: 11009

GASKET,TAP VALVE (NAS)

€ 4.00

11009A

110091308
ref: 11009A

GASKET,FUEL GAGE (NAS)

€ 14.50

14024

140251536
ref: 14024

COVER,FUEL GAGE

€ 11.50

14024A

140251913
ref: 14024A

COVER,TANK CAP

€ 13.50

16146

161461009
ref: 16146

COVER-ASSY,TAP DIAPHR

€ 12.50

32052

320521202
ref: 32052

BRACKET-TANK

€ 24.00

43028

430281033
ref: 43028

DIAPHRAGM

€ 15.00

43058

51039003
ref: 43058

'O' RING

€ 4.00

51002C

510025143S3
ref: 51002C

TANK-COMP-FUEL,BLUE/W

€ 535.00

51002D

510025163J3
ref: 51002D
EU

TANK-COMP-FUEL,EBONY/

€ 535.00

51002E

510025169P9
ref: 51002E

TANK-COMP-FUEL,RED/WH

€ 634.00

51023

510231044
ref: 51023

TAP-ASSY

€ 105.50

51049

510491053
ref: 51049

CAP-TANK,FUEL

€ 106.50

52005

520051071
ref: 52005

GAUGE,FUEL

€ 85.50

92001

920011091
ref: 92001

BOLT,6X20,FUEL TAP

€ 2.50

92001A

920011705
ref: 92001A

BOLT,FUEL GAGE

€ 2.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

92022183
ref: 92022

WASHER,6.2X11X1.5

€ 2.50

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92037

92037010
ref: 92037

CLAMP-FUEL PIPE

€ 2.50

92055

920551085
ref: 92055

'O' RING,FUEL TAP LEV

€ 3.00

92075

920751115
ref: 92075

DAMPER,FUEL TANK FRON

€ 4.00

92075A

920751700
ref: 92075A

DAMPER,FUEL TANK

€ 8.50

92075B

92075174
ref: 92075B

DAMPER,MALE

€ 3.00

92075C

92075175
ref: 92075C

DAMPER,FEMALE

€ 2.50

92081

920811240
ref: 92081

SPRING,DIAPHRAGM VLV

€ 2.50

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

130

130C0625
ref: 130

BOLT-FLANGED,FLANGED,

€ 2.00

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220C0508
ref: 220A

SCREW-PAN-CROS

€ 1.00

221

221B0414
ref: 221

SCREW-CSR-CROS,4X14

€ 2.50

670

670B1504
ref: 670

O RING,4MM

€ 2.50

702

702A07640
ref: 702

TUBE-RUBBER,7X10X640

€ 9.50
