COWLING (ZX500-A2)
ZX500A1 1985 EUROPE NR / KPH

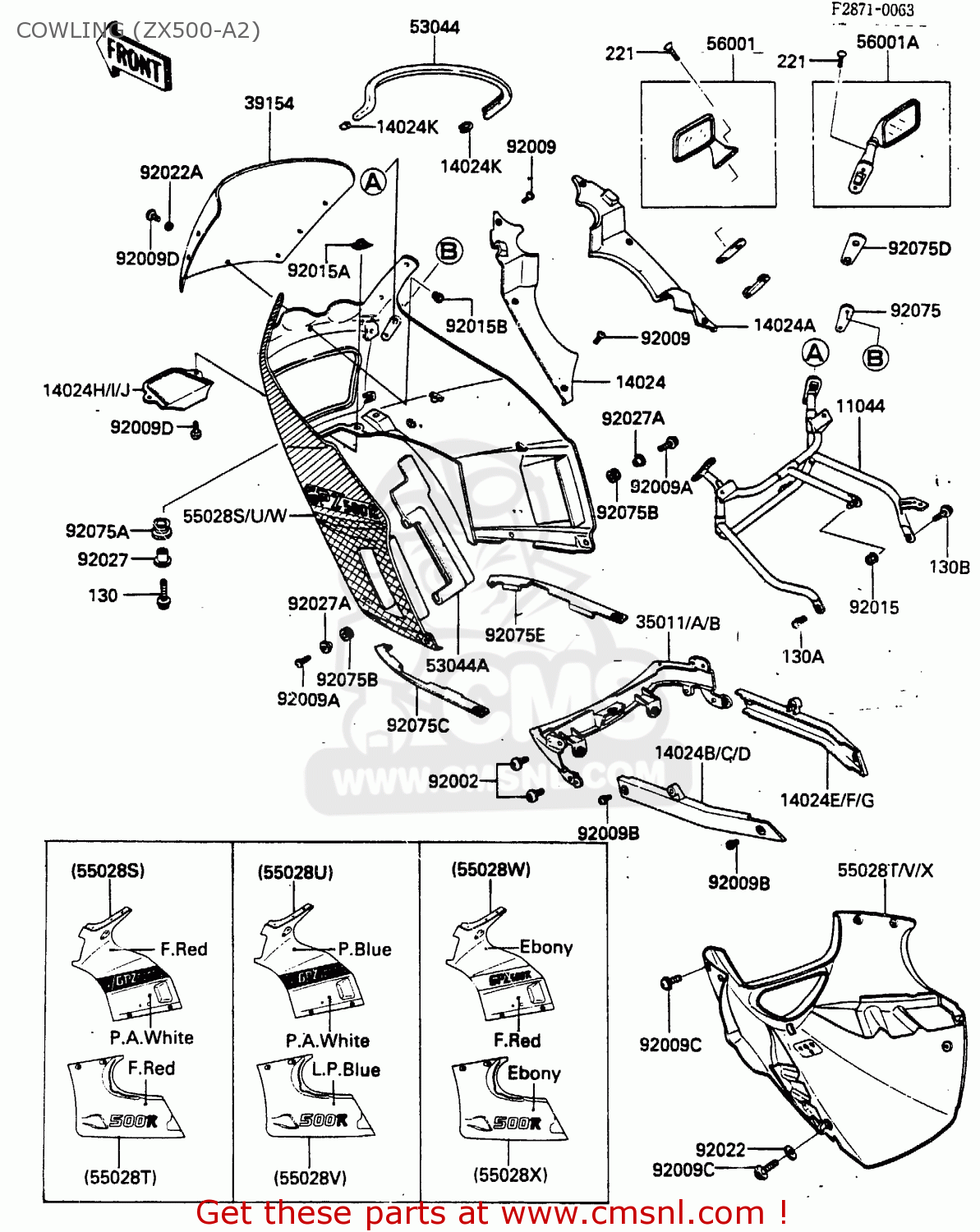

Cowling (zx500-a2) diagram ZX500A1 1985 EUROPE NR / KPH
COWLING (ZX500-A2) ZX500A1 1985 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
11044
110441076
ref: 11044
BRACKET,COWLING,UPP
€ 189.00
14024
140251726
ref: 14024
COVER,UPP,INNER,LH
€ 48.00
14024A
140251727
ref: 14024A
COVER,UPP,INNER,RH
€ 34.00
14024B
140251732B1
ref: 14024B
COVER,SIDE PANEL,LH,F
€ 76.00
14024C
140251732R6
ref: 14024C
COVER,SIDE PANEL,LH,B
€ 47.50
14024D
140251732S2
ref: 14024D
EU
COVER,SIDE PANEL,LH,S
€ 59.00
14024E
140251733B1
ref: 14024E
COVER,SIDE PANEL,RH,F
€ 80.50
14024F
140251733R6
ref: 14024F
COVER,SIDE PANEL,RH,B
€ 93.00
14024G
140251733S2
ref: 14024G
EU
COVER,SIDE PANEL,RH,S
€ 50.00
14024H
140251735M4
ref: 14024H
COVER,HEAD LAMP BULB,
€ 31.50
14024I
1402517356C
ref: 14024I
EU
COVER,HEAD LAMP BULB,
€ 36.50
14024J
1402517356L
ref: 14024J
COVER,HEAD LAMP BULB,
€ 33.50
14024K
140251756
ref: 14024K
COVER,TRIM END
€ 4.50
35011
350111246B1
ref: 35011
STAY,COWLING,LWR,F.RE
€ 133.50
35011A
350111246R6
ref: 35011A
STAY,COWLING,LWR,BLUE
€ 185.00
35011B
350111246S2
ref: 35011B
EU
STAY,COWLING,LWR,SILV
€ 166.00
39154
391541063
ref: 39154
WINDSHIELD
€ 279.50
53044
530441120
ref: 53044
TRIM,WINDSHIELD
€ 20.50
53044A
530441135
ref: 53044A
TRIM,COWLING
€ 14.00
55028S
550285220P9
ref: 55028S
COWLING,UPP,F.RED/P.A
€ 489.50
55028T
550285221B1
ref: 55028T
COWLING,LWR,F.RED
€ 214.00
55028U
550285222S3
ref: 55028U
COWLING,UPP,L.P.BLUE/
€ 638.00
55028V
550285223M4
ref: 55028V
COWLING,LWR,L.P.BLUE
€ 278.00
55028W
550285224J3
ref: 55028W
EU
COWLING,UPP,EBONY/F.R
€ 837.00
55028X
550285225H8
ref: 55028X
EU
COWLING,LWR,EBONY
€ 192.50
56001
560011252
ref: 56001
MIRROR-ASSY,LH
€ 61.50
56001A
560011253
ref: 56001A
MIRROR-ASSY,RH
€ 61.50
92002
920021588
ref: 92002
BOLT
€ 4.50
92009
920091197
ref: 92009
SCREW
€ 2.50
92009A
920091251
ref: 92009A
SCREW,6X20,BLACK
€ 3.50
92009B
920091287
ref: 92009B
SCREW,6X14
€ 1.50
92009C
920091288
ref: 92009C
SCREW,6X14
€ 2.00
92009D
920091301
ref: 92009D
SCREW,5X16
€ 0.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151310
ref: 92015A
NUT
€ 4.00
92015B
920151343
ref: 92015B
NUT,5MM,COWLING
€ 3.00
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
€ 0.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92027A
920271935
ref: 92027A
COLLAR,L=9.1,BLACK
€ 4.00
92075
920751492
ref: 92075
DAMPER,MIRROR
€ 5.00
92075A
920751569
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.50
92075B
920751634
ref: 92075B
DAMPER
€ 3.00
92075C
920751707
ref: 92075C
DAMPER,COWLING,LH
€ 10.00
92075D
920751745
ref: 92075D
DAMPER,MIRROR
€ 5.00
92075E
920751759
ref: 92075E
DAMPER,COWLING,RH
€ 11.50
130
130C0625
ref: 130
BOLT-FLANGED,FLANGED,
€ 2.00
130A
130C0812
ref: 130A
BOLT-FLANGED,8X12,BLA
€ 0.50
130B
130C0816
ref: 130B
BOLT-FLANGED,8X16,BLA
€ 0.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
€ 1.00
