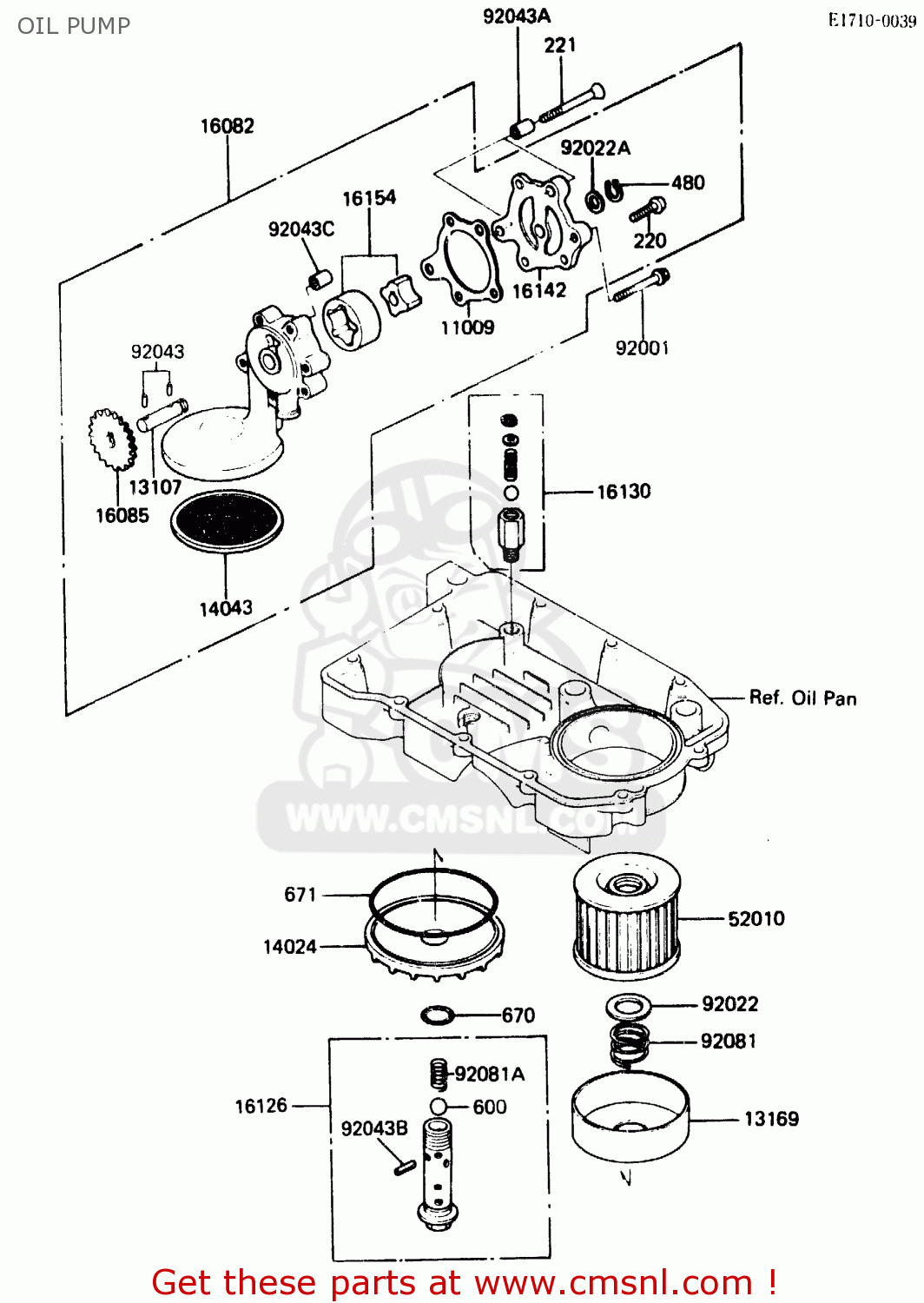

OIL PUMP

ref

part #

description

quantity

11009

16145004
ref: 11009

GASKET,OIL PUMP COVER (NAS)

€ 2.50

13107

16086004
ref: 13107

SHAFT,OIL PUMP

€ 17.00

13169

131691110
ref: 13169

PLATE,OIL FILTER

€ 4.50

14024

16101004
ref: 14024

COVER,OIL FILTER

€ 31.00

14043

16111004
ref: 14043

FILTER,OIL PUMP

€ 23.50

16082

16082064
ref: 16082

PUMP-ASSY-OIL

€ 165.00

16085

16085025
ref: 16085

GEAR, OIL PUMP, 57T

€ 31.50

16126

161261108
ref: 16126

VALVE,OIL FILTER

€ 29.00

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

16142

16142005
ref: 16142

COVER-PUMP

€ 24.00

16154

16154003
ref: 16154

ROTOR-PUMP

€ 47.50

52010

16099003
ref: 52010

FILTER,OIL

€ 6.50

92001

92001165
ref: 92001

BOLT,HEX HEAD,6X45

€ 3.00

92022

920221012
ref: 92022

WASHER,20.5X30X1

€ 3.00

92022A

92022311
ref: 92022A

WASHER,PLAIN

€ 2.50

92043

92042041
ref: 92043

PIN,DOWEL

€ 4.50

92043A

92042050
ref: 92043A

PIN, DOWEL, 6.2X8X28

€ 2.50

92043B

92043111
ref: 92043B

SPRING PIN

€ 4.00

92043C

920431302
ref: 92043C

PIN,DOWEL,8X10

€ 1.00

92081

920811018
ref: 92081

SPRING,OIL FILTER

€ 3.00

92081A

92081109
ref: 92081A

SPRING

€ 7.50

220

220B0622
ref: 220

SCREW-PAN HEAD,6X22

€ 2.50

221

221B0655
ref: 221

SCREW,COUNTERSUNK HED

€ 3.00

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

600

600A1200
ref: 600

BALL-STEEL,3/8

€ 0.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00

671

671B2590
ref: 671

O RING,90MM

€ 6.50

all assemblies
