REAR MASTER CYLINDER
ZX500A1 1985 EUROPE NR / KPH

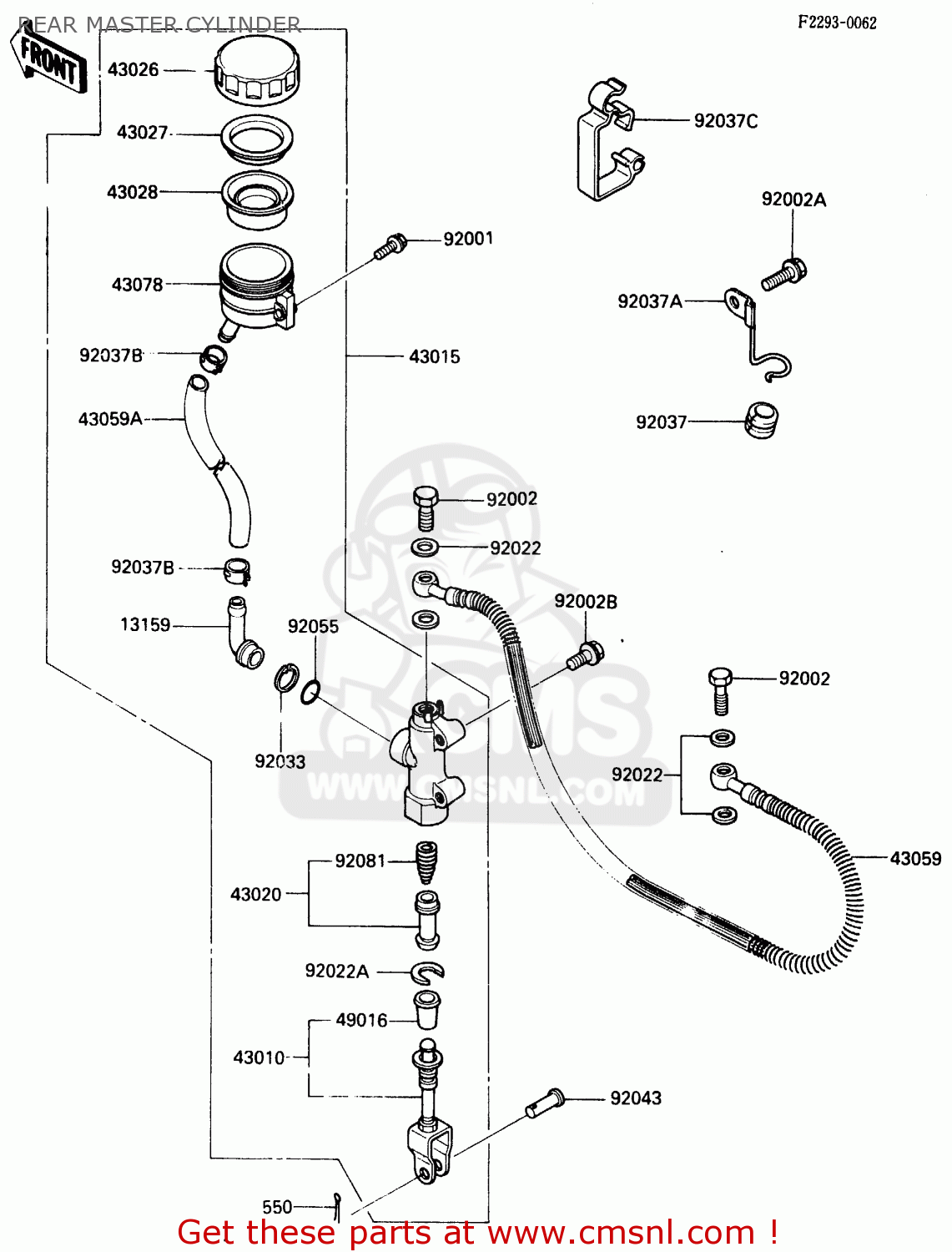

Rear master cylinder diagram ZX500A1 1985 EUROPE NR / KPH
REAR MASTER CYLINDER ZX500A1 1985 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
€ 9.50
43010
430101054
ref: 43010
ROD-ASSY-BRAKE
€ 47.50
43015
430151304
ref: 43015
CYLINDER-ASSY-MASTER,
€ 300.00
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261054
ref: 43026
CAP-BRAKE
€ 20.50
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
€ 13.00
43059
430591298
ref: 43059
HOSE-BRAKE,RR
€ 72.00
43059A
430591313
ref: 43059A
HOSE-BRAKE,RR MASTER
€ 22.50
43078
430781054
ref: 43078
RESERVOIR
€ 19.00
49016
490161103
ref: 49016
COVER-SEAL
€ 11.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
€ 2.50
92002
920011900
ref: 92002
BOLT,OIL,L=23
€ 3.50
92002A
920021311
ref: 92002A
BOLT,FLANGED,10X10
€ 3.50
92002B
920021485
ref: 92002B
BOLT,FLANGED,8X22
€ 2.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
€ 3.00
92037
43064007
ref: 92037
43064007
92037A
920371540
ref: 92037A
CLAMP,BRAKE HOSE
€ 10.00
92037B
920371547
ref: 92037B
CLAMP
€ 8.50
92037C
920371674
ref: 92037C
CLAMP,HOSE
€ 4.50
92043
920431013
ref: 92043
PIN
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
€ 2.50
92081
920811737
ref: 92081
SPRING
€ 8.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
