TAIL LAMP
ZX400H2 ZXR400 1990 EUROPE FR AR IT

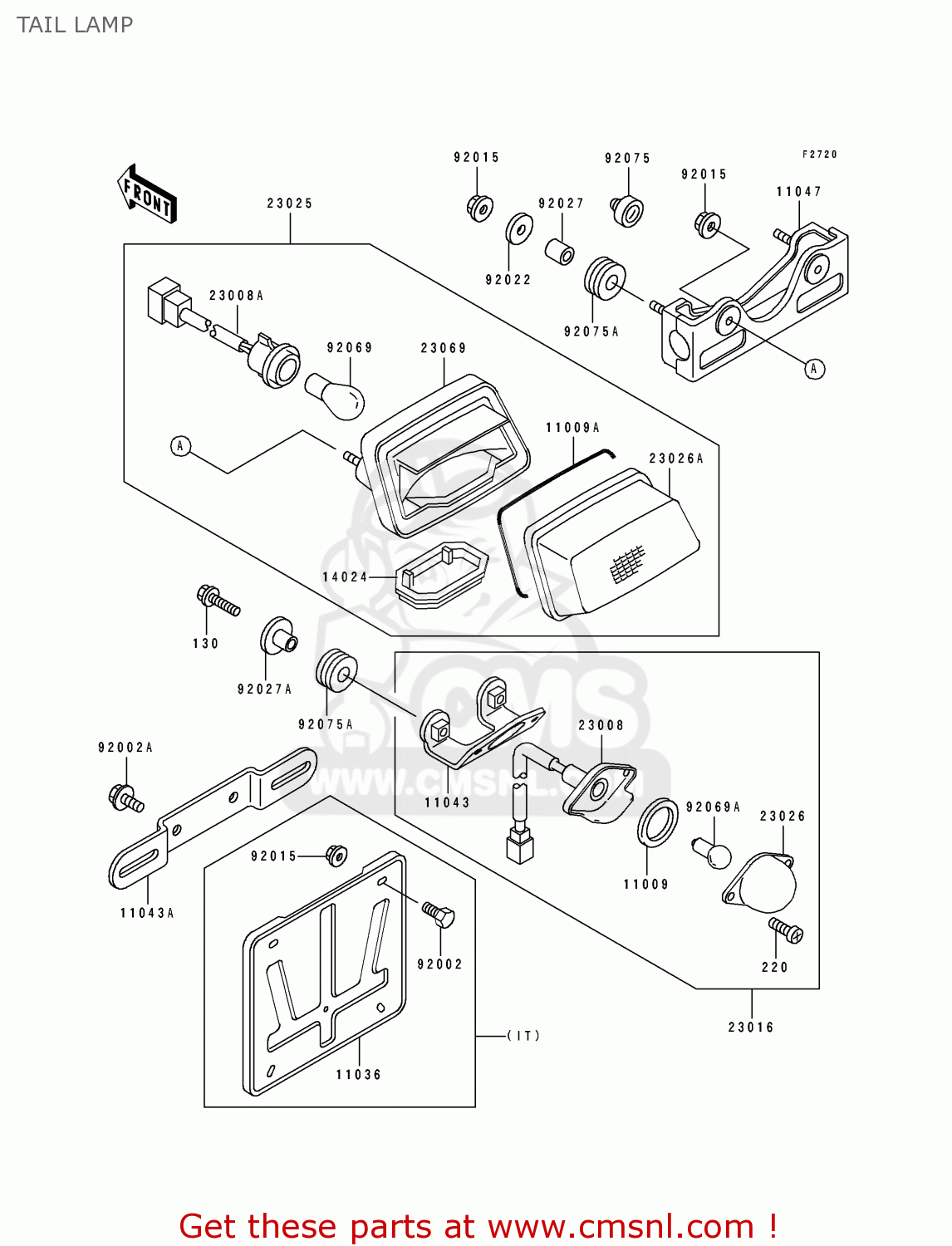

Tail lamp diagram ZX400H2 ZXR400 1990 EUROPE FR AR IT
TAIL LAMP ZX400H2 ZXR400 1990 EUROPE FR AR IT
×
prices are in EUR
ref
part #
description
quantity
130
130D0625
ref: 130
BOLT-FLANGED
€ 0.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091750
ref: 11009A
GASKET,TAIL LAMP LENS
€ 5.50
11036
110361820
ref: 11036
IT
BRACKET-A,LICENSE PLA
€ 13.50
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
€ 10.00
11043A
110431499
ref: 11043A
BRACKET,REFLECTOR
€ 12.00
11047
110471070
ref: 11047
BRACKET,TAIL LAMP
€ 17.00
14024
140241770
ref: 14024
COVER,DUMMY
€ 7.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
€ 7.50
23008A
230081414
ref: 23008A
SOCKET-ASSY,TAIL LAMP
€ 13.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 54.50
23025
230251190
ref: 23025
LAMP-TAIL
€ 101.00
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261103
ref: 23026A
LENS,TAIL LAMP
€ 20.00
23069
230691086
ref: 23069
BODY-TAIL LAMP
€ 71.50
92002
920021132
ref: 92002
IT
BOLT,6X12
€ 2.50
92002A
920021351
ref: 92002A
BOLT
€ 2.50
92015
920151193
ref: 92015
AREUFR
NUT,FLANGED,6MM
€ 0.50
92015
920151193
ref: 92015
IT
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92027A
92027251
ref: 92027A
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
92075035
ref: 92075
DAMPER
€ 3.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
€ 3.00
