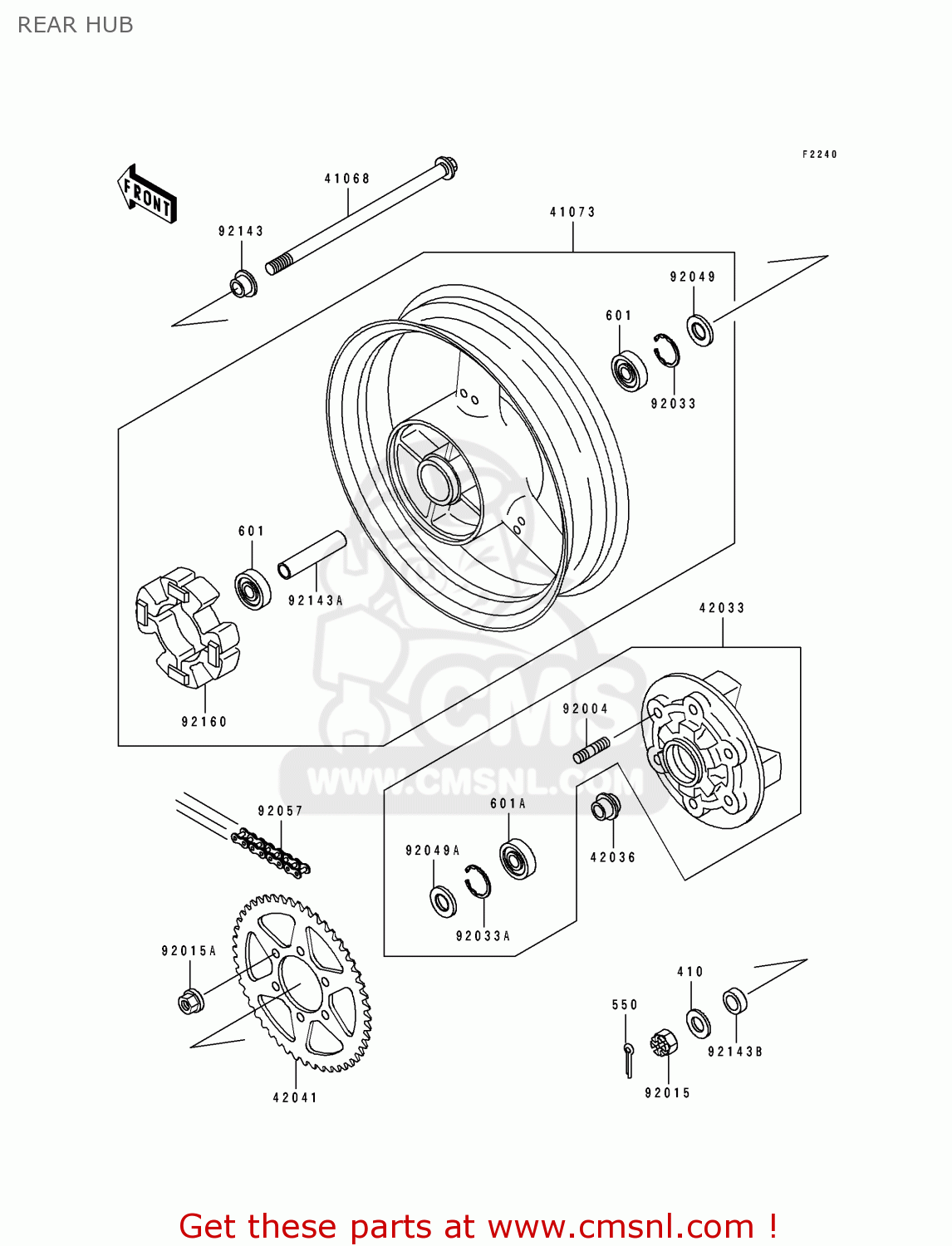

REAR HUB

ref

part #

description

quantity

410

410D1800
ref: 410

W-PLAIN-S,18MM

€ 1.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6204ZZ
ref: 601

BEARING-BALL,#6204ZZC

€ 22.00

601A

601B6205G
ref: 601A

BEARING BALL

€ 14.00

41068

410681316
ref: 41068

AXLE,RR

€ 69.00

41073

410731472CJ
ref: 41073

WHEEL-ASSY,RR,L.GREEN

€ 922.50

42033

420331139
ref: 42033

COUPLING-ASSY,RR HUB

€ 204.00

42036

420361251
ref: 42036

SLEEVE,RR HUB,L=23

€ 18.00

42041

420411356
ref: 42041

SPROCKET-HUB,45T

€ 41.00

92004

920041151
ref: 92004

STUD,10X19.5

€ 6.50

92015

42045018
ref: 92015

NUT,18MM

€ 7.50

92015A

920151720
ref: 92015A

NUT,10MM

€ 3.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92049A

92052006
ref: 92049A

OIL SEAL WTC35527

€ 6.50

92057

920571287
ref: 92057

CHAIN,DRIVE,EK520SX-O

€ 77.50

92143

921431042
ref: 92143

COLLAR,L=23

€ 19.50

92143A

921431409
ref: 92143A

COLLAR,RR HUB,L=129.5

€ 16.50

92143B

921431410
ref: 92143B

COLLAR,RR AXLE,L=14.5

€ 12.50

92160

921601203
ref: 92160

DAMPER,SHOCK,RR HUB

€ 60.00
