FRONT FORK
ZX400H2 ZXR400 1990 EUROPE FR AR IT

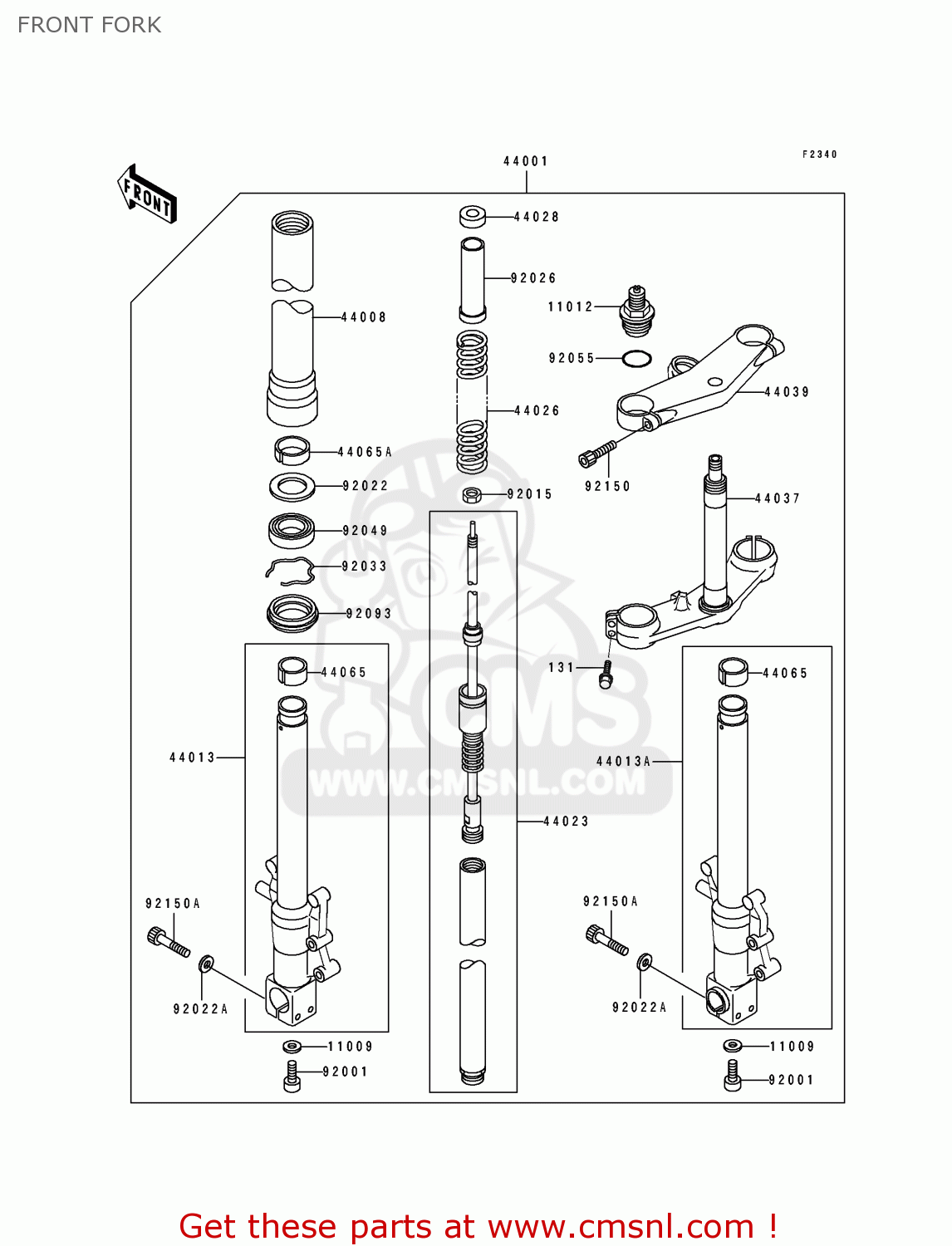

Front fork diagram ZX400H2 ZXR400 1990 EUROPE FR AR IT
FRONT FORK ZX400H2 ZXR400 1990 EUROPE FR AR IT
×
prices are in EUR
ref
part #
description
quantity
131
131G0840
ref: 131
BOLT, 8 X 40
€ 5.50
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11012
110121748
ref: 11012
CAP,FORK TOP
€ 83.50
44001
440011768ES
ref: 44001
FORK-FRONT,GOLD
€ 2,049.50
44008
440081005ES
ref: 44008
PIPE-FORK OUTER,GOLD
€ 445.50
44013
440131318CE
ref: 44013
PIPE-FORK INNER,LH,SI
€ 269.00
44013A
440131319CE
ref: 44013A
PIPE-FORK INNER,RH,SI
€ 282.50
44023
440231070
ref: 44023
CYLINDER-COMP-FORK
€ 111.50
44026
440261462
ref: 44026
SPRING-FRONT FORK
€ 40.00
44028
440281073
ref: 44028
GUIDE-FORK SPRING
€ 6.00
44037
440371258
ref: 44037
HOLDER-FORK UNDER
€ 312.50
44039
440391193
ref: 44039
HOLDER-FORK UPPER
€ 174.00
44065
440651086
ref: 44065
BUSHING-FRONT FORK,IN
€ 21.00
44065A
440651096
ref: 44065A
BUSHING-FRONT FORK,FO
€ 17.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
€ 4.50
92015
920151795
ref: 92015
NUT
€ 3.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92026
920261391
ref: 92026
SPACER
€ 6.00
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491347
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.00
92055
920551115
ref: 92055
RING-0,HOSE ASSY
€ 6.50
92093
920931306
ref: 92093
SEAL,FORK OUTER TUBE
€ 14.00
92150
921501172
ref: 92150
BOLT,SOCKET,8X25
€ 1.50
92150A
921501194
ref: 92150A
BOLT,SOCKET,8X40
€ 2.00
