Genuine ZX Kawasaki Parts delivered quickly!


FRONT MASTER CYLINDER

ZX400H2 ZXR400 1990 EUROPE FR AR IT

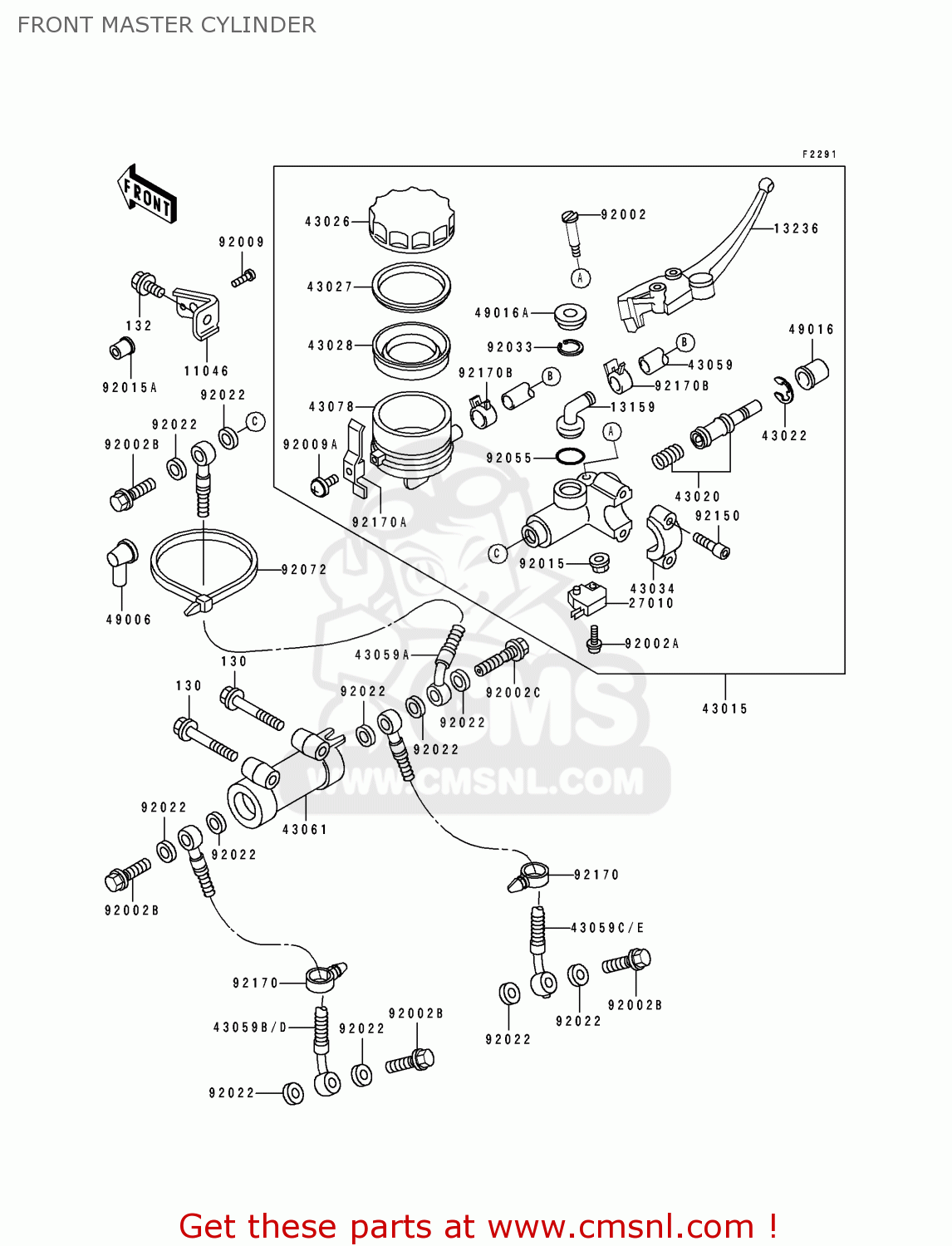

Front master cylinder diagram ZX400H2 ZXR400 1990 EUROPE FR AR IT

FRONT MASTER CYLINDER ZX400H2 ZXR400 1990 EUROPE FR AR IT
FRONT MASTER CYLINDER ZX400H2 ZXR400 1990 EUROPE FR AR IT
FRONT MASTER CYLINDER ZX400H2 ZXR400 1990 EUROPE FR AR IT
prices are in EUR
ref
part #
description
quantity
11046
110461691
ref: 11046
BRACKET,RESERVOIR TAN
110461691
€ 6.50
13159
131591061
ref: 13159
CONNECTOR
131591061
€ 9.00
13236
132361185
ref: 13236
LEVER-COMP,FRONT BRAK
132361185
€ 51.00
27010
270101170
ref: 27010
SWITCH,BRAKE
270101170
€ 26.00
43015
430151401
ref: 43015
CYLINDER-ASSY-MASTER,
€ 318.00
43020
430201054
ref: 43020
PISTON-COMP-BRAKE,FR
430201054
€ 47.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
430221010
€ 3.00
43026
430261071
ref: 43026
CAP-BRAKE
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43034
430341016
ref: 43034
HOLDER-BRAKE,MASTER C
430341016
€ 13.50
43059
430591547
ref: 43059
HOSE-BRAKE,FR MASTER
430591547
€ 14.50
43059A
430591585
ref: 43059A
HOSE-BRAKE,FR
€ 39.00
43059B
430591593
ref: 43059B
AREUFR
HOSE-BRAKE,FR
€ 52.50
43059C
430591594
ref: 43059C
AREUFR
HOSE-BRAKE,FR
€ 52.50
43059D
430591658
ref: 43059D
IT
HOSE-BRAKE,FR
€ 47.50
43059E
430591659
ref: 43059E
IT
HOSE-BRAKE,FR
€ 48.00
43061
430611002
ref: 43061
JOINT-BRAKE
430611002
€ 48.00
43078
430781099
ref: 43078
RESERVOIR
430781099
€ 23.50
49006
490061040
ref: 49006
BOOT,DUST
490061040
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
49016A
490161147
ref: 49016A
COVER-SEAL
490161147
€ 5.00
92002
920021322
ref: 92002
BOLT,LEVER SET
920021322
€ 8.00
92002A
920021323
ref: 92002A
BOLT
920021323
€ 2.50
92002B
920021888
ref: 92002B
BOLT,OIL,L=23
920021888
€ 3.50
92002C
920021909
ref: 92002C
BOLT
920021909
€ 8.50
92009
920091445
ref: 92009
SCREW
€ 2.50
92009A
920091570
ref: 92009A
SCREW
920091570
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92015A
920151757A
ref: 92015A
NUT,5MM
920151757A
€ 5.00
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
92150
921501328
ref: 92150
BOLT
921501328
€ 3.00
92170
921701067
ref: 92170
CLAMP,HOSE
921701067
€ 5.00
130
130G0635
ref: 130
BOLT, FLANGED, 6X35
130G0635
€ 0.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
92170A
921701090
ref: 92170A
CLAMP
921701090
€ 10.00
92170B
921701091
ref: 92170B
CLAMP,HOSE
921701091
€ 3.00
