RADIATOR
ZX400H2 ZXR400 1990 EUROPE FR AR IT

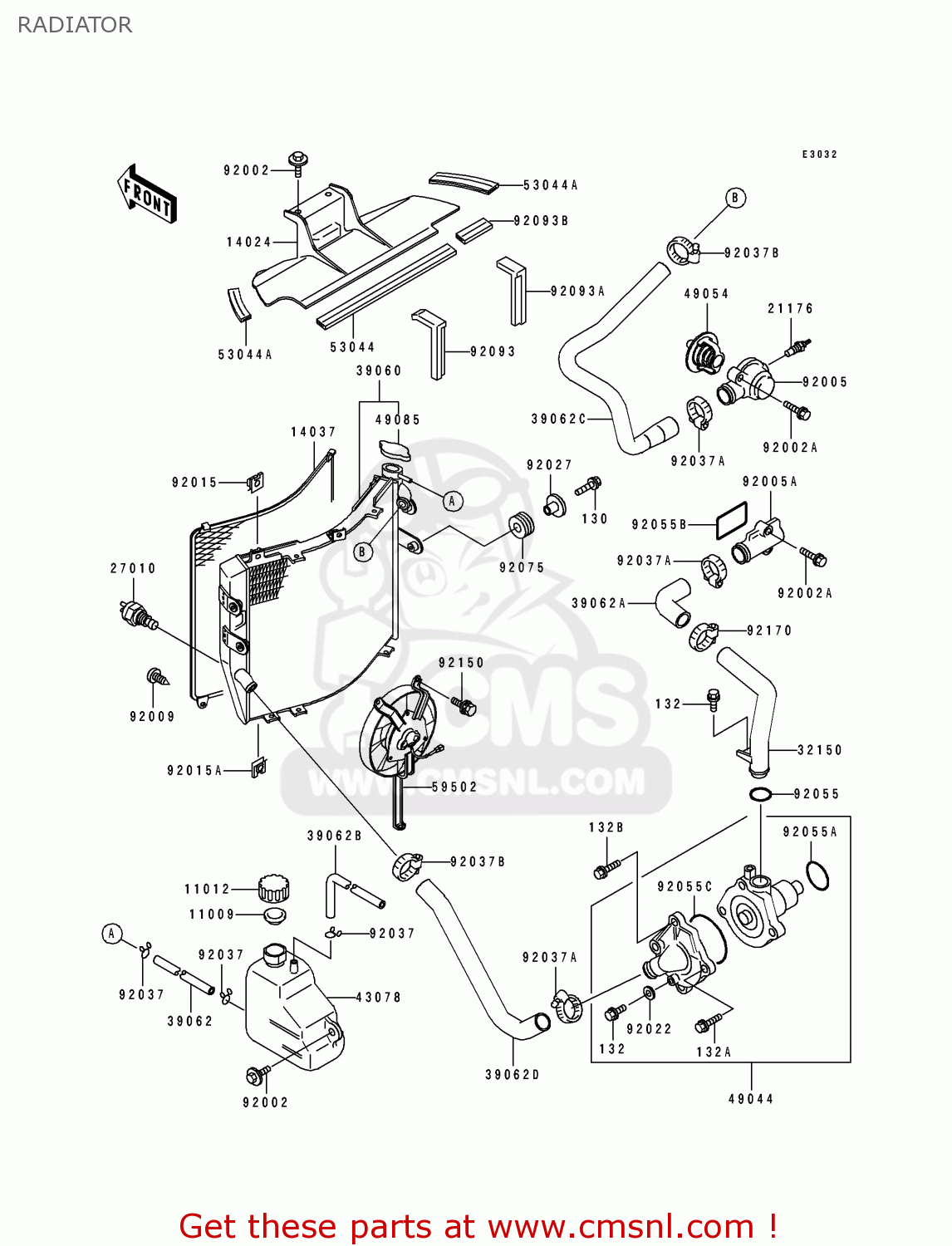

Radiator diagram ZX400H2 ZXR400 1990 EUROPE FR AR IT
RADIATOR ZX400H2 ZXR400 1990 EUROPE FR AR IT
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140241924
ref: 14024
COVER,HEAT
€ 30.50
14037
140371134
ref: 14037
SCREEN,RADIATOR
€ 61.50
21176
211761054
ref: 21176
SENSOR,WATER
€ 49.50
27010
270101249
ref: 27010
SWITCH,THERMOSTAT
€ 63.00
32150
321021927
ref: 32150
PIPE
€ 21.00
39060
390601099
ref: 39060
RADIATOR
€ 548.00
39062
390621007
ref: 39062
HOSE-COOLING,RESERVIR
€ 25.00
39062A
390621282
ref: 39062A
HOSE-COOLING,PUMP-CYL
€ 10.00
39062B
390621341
ref: 39062B
HOSE-COOLING,OVERFLOW
€ 20.00
39062C
390621408
ref: 39062C
HOSE-COOLING,HEAD-RAD
€ 26.00
39062D
390621409
ref: 39062D
HOSE-COOLING,RADIATOR
€ 25.50
43078
430781100
ref: 43078
RESERVOIR
€ 32.50
49044
490441063
ref: 49044
PUMP-WATER
€ 238.00
49054
490541058
ref: 49054
THERMOSTAT
€ 41.00
49085
490851062
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
53044
530441215
ref: 53044
TRIM,INNER COVER,LH,L
€ 8.50
53044A
530441235
ref: 53044A
TRIM
€ 4.50
59502
595021091
ref: 59502
FAN-ASSY
€ 509.00
92002
920011950
ref: 92002
BOLT,6X16
€ 2.50
92002A
920021622
ref: 92002A
BOLT,6X30
€ 3.50
92005
920051169
ref: 92005
FITTING
€ 22.00
92005A
920051170
ref: 92005A
FITTING
€ 23.50
92009
920091436
ref: 92009
SCREW
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
920221627
ref: 92022
WASHER,6MM
€ 4.00
92027
920271062
ref: 92027
COLLAR,SEAT
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371985
ref: 92037A
CLAMP,COOLING HOSE
€ 7.50
92037B
920371986
ref: 92037B
CLAMP,COOLING HOSE
€ 13.00
92055
92055051
ref: 92055
RING-O,20MM
€ 3.00
92055A
920551378
ref: 92055A
RING-O,WATER PUMP
€ 5.00
92055B
920551402
ref: 92055B
RING-O
€ 5.00
92055C
920551446
ref: 92055C
RING-O,WATER PUMP
€ 8.00
92075
920751901
ref: 92075
DAMPER
€ 2.00
92093
920931265
ref: 92093
SEAL,HEAD COVER,LH
€ 10.00
92093A
920931266
ref: 92093A
SEAL,HEAD COVER,RH
€ 6.00
92093B
920931267
ref: 92093B
SEAL
€ 5.50
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0625
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0650
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92170
920371989
ref: 92170
CLAMP
€ 13.00
