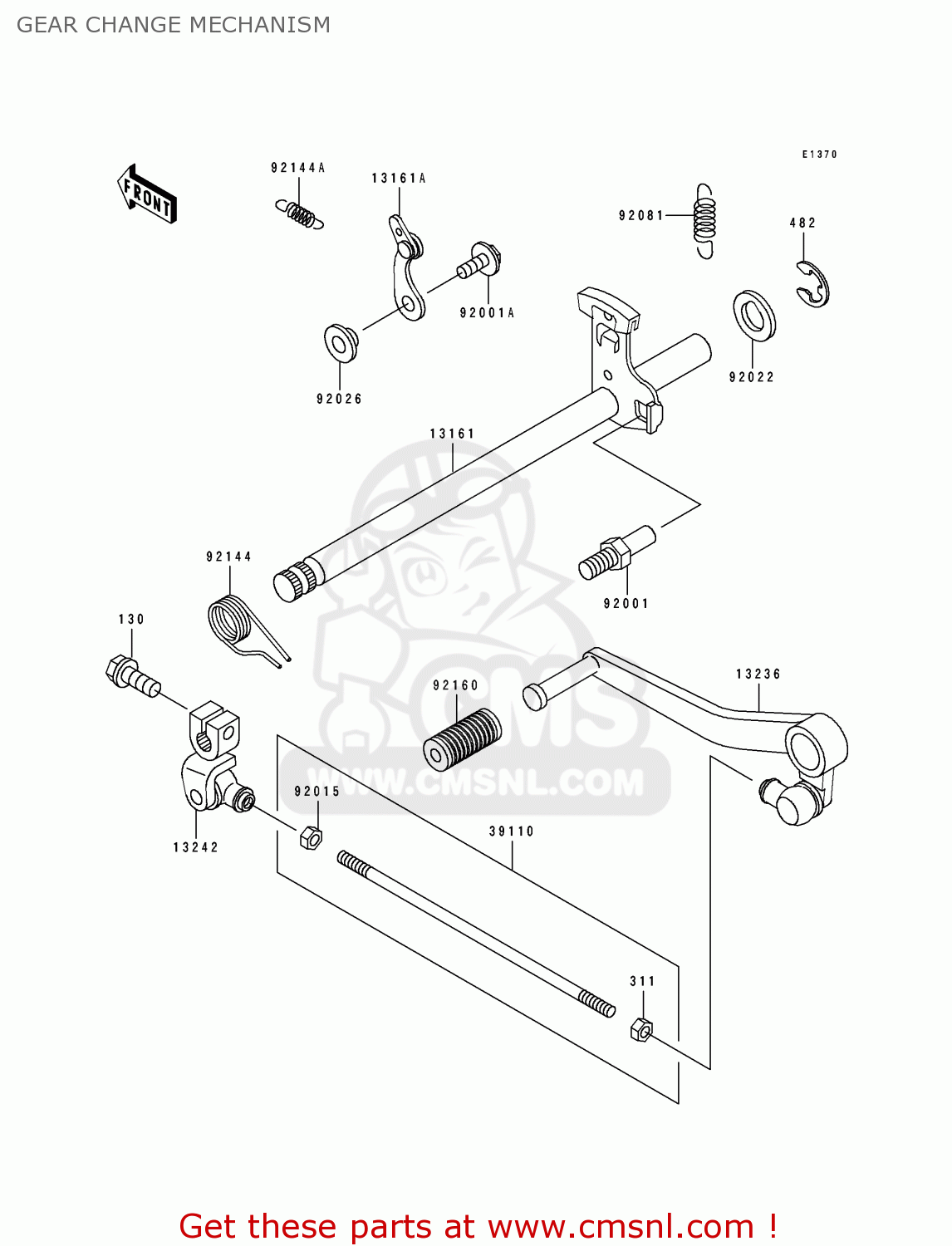

GEAR CHANGE MECHANISM

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

311

311J0600
ref: 311

NUT-HEX

€ 1.00

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

13161

131611156
ref: 13161

LEVER-COMP-CHANGE SHA

€ 63.00

13161A

131611157
ref: 13161A

LEVER-COMP-CHANGE SHA

€ 7.50

13236

132361204
ref: 13236

LEVER-COMP,CHANGE PED

€ 47.00

13242

132421244
ref: 13242

LEVER-ASSY-CHANGE,LIN

€ 24.50

39110

391101091
ref: 39110

ROD-ASSY-TIE

€ 9.50

92001

920011455
ref: 92001

BOLT

€ 3.00

92001A

920011516
ref: 92001A

BOLT,W/WASHER,6X12

€ 3.00

92015

920151178
ref: 92015

NUT

€ 2.50

92022

920221628
ref: 92022

WASHER,CHANGE SHAFT

€ 4.50

92026

920261217
ref: 92026

SPACER

€ 3.50

92081

920811708
ref: 92081

SPRING,PAWL RETURN

€ 4.00

92144

921441074
ref: 92144

SPRING,CHANGE PEDAL R

€ 6.50

92144A

921441450
ref: 92144A

SPRING,GEAR POSITION

€ 2.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
