COWLING
ZX400H2 ZXR400 1990 EUROPE FR AR IT

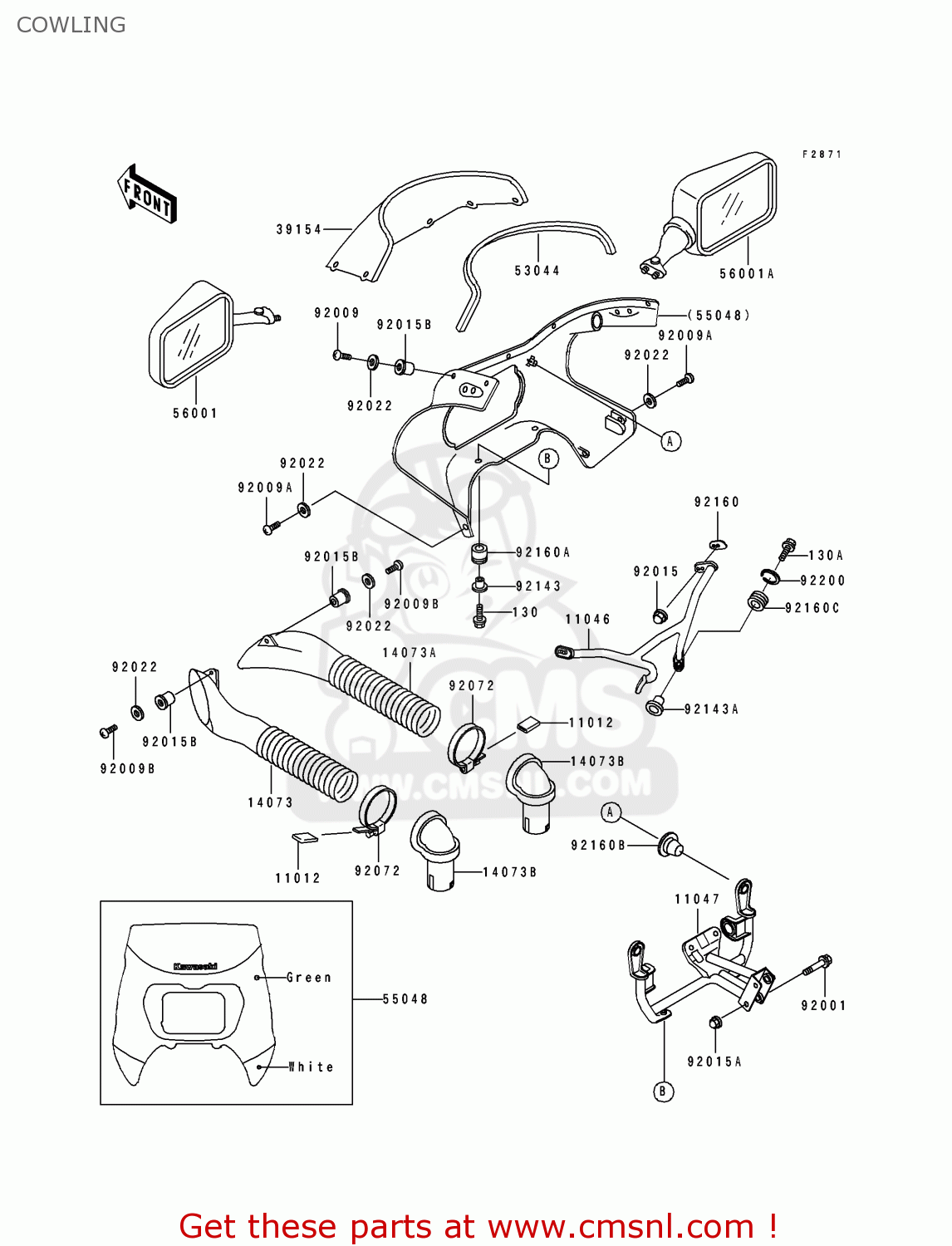

Cowling diagram ZX400H2 ZXR400 1990 EUROPE FR AR IT
COWLING ZX400H2 ZXR400 1990 EUROPE FR AR IT
×
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
130A
130J0630
ref: 130A
BOLT FLANGED,6X30,BLC
€ 2.50
11012
110121725
ref: 11012
CAP
€ 2.00
11046
110461649
ref: 11046
BRACKET,MIRROR
€ 77.00
11047
110471071
ref: 11047
BRACKET,UPP COWLING
€ 184.50
14073
140731390
ref: 14073
DUCT,FRESH AIR INTAKE
€ 45.50
14073A
140731391
ref: 14073A
DUCT,FRESH AIR INTAKE
€ 48.50
14073B
140731392
ref: 14073B
DUCT,FRESH AIR INTAKE
€ 12.50
39154
391541089
ref: 39154
WINDSHIELD
€ 271.50
53044
530441230
ref: 53044
TRIM,WINDSHIELD
€ 8.50
55048
5504854517F
ref: 55048
COWLING.,UPP,L.GREEN
€ 603.50
56001
5600113766W
ref: 56001
MIRROR-ASSY,LH,L.GREE
€ 61.50
56001A
5600113776W
ref: 56001A
MIRROR-ASSY,RH,L.GREE
€ 61.50
92001
920011613
ref: 92001
BOLT,FLANGED,8X45
€ 3.00
92009
920091301
ref: 92009
SCREW,5X16
€ 0.50
92009A
920091445
ref: 92009A
SCREW
€ 2.50
92009B
920091453
ref: 92009B
SCREW,5X20
€ 2.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92015A
920151174
ref: 92015A
NUT,CAP,8MM,BLACK
€ 3.00
92015B
920151757A
ref: 92015B
NUT,5MM
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92072
920721091
ref: 92072
BAND
€ 14.50
92143
921431026
ref: 92143
COLLAR
€ 4.00
92143A
921431353
ref: 92143A
COLLAR
€ 5.50
92160
921601140
ref: 92160
DAMPER,MIRROR
€ 2.50
92160A
921601141
ref: 92160A
DAMPER
€ 3.00
92160B
921601166
ref: 92160B
DAMPER
€ 2.00
92160C
921601167
ref: 92160C
DAMPER,10X20X12
€ 3.00
92200
922001025
ref: 92200
WASHER
€ 2.50
