CARBURETOR PARTS
ZX400H2 ZXR400 1990 EUROPE FR AR IT

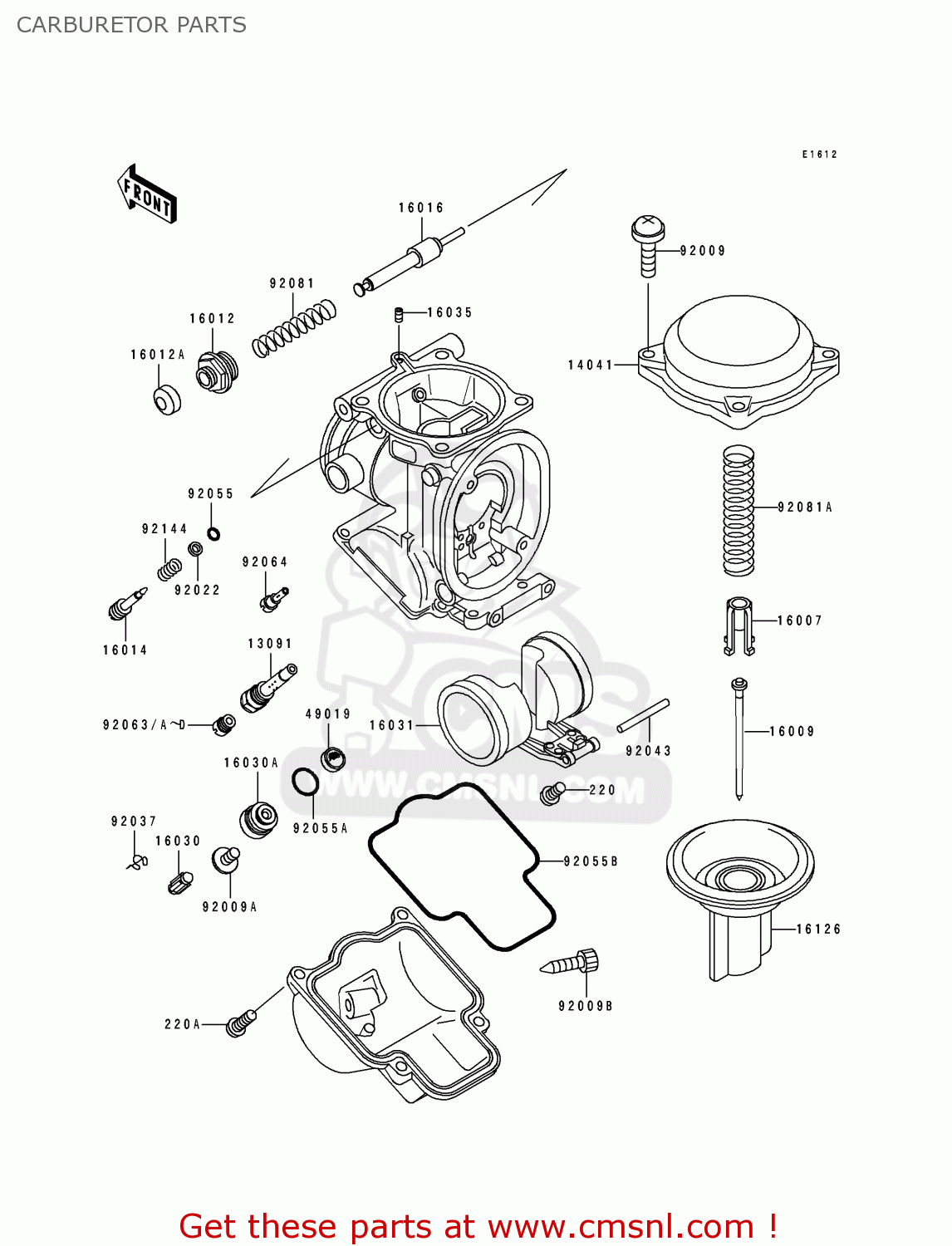

Carburetor parts diagram ZX400H2 ZXR400 1990 EUROPE FR AR IT
CARBURETOR PARTS ZX400H2 ZXR400 1990 EUROPE FR AR IT
×
prices are in EUR
ref
part #
description
quantity
220
220D0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0410
ref: 220A
SCREW-PAN-CROS
€ 2.00
13091
130911705
ref: 13091
HOLDER,NEEDLE JET
€ 12.50
14041
140411090
ref: 14041
CAP-CHAMBER,MIXING
€ 46.00
16007
160071120
ref: 16007
SEAT-SPRING
€ 16.50
16009
160091317
ref: 16009
NEEDLE-JET,N36H
€ 20.50
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141062
ref: 16014
SCREW-PILOT AIR
€ 12.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16030A
160301071
ref: 16030A
SEAT, VALVE FLOAT
€ 28.00
16031
160311070
ref: 16031
FLOAT
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
€ 10.00
16126
161261226
ref: 16126
VALVE,VACUUM
€ 152.00
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
€ 7.00
92009
920091549
ref: 92009
SCREW,4X4.4
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551425
ref: 92055A
RING-O,VALVE SEAT
€ 4.50
92055B
920551426
ref: 92055B
RING-O,FLOAT CHAMBER
€ 13.00
92063
920631001
ref: 92063
JET-MAIN,#95
€ 10.00
92063A
920631004
ref: 92063A
JET-MAIN,#92
€ 10.00
92063B
920631005
ref: 92063B
JET-MAIN,#98
€ 10.00
92063C
920631008
ref: 92063C
JET-MAIN,#100
€ 9.00
92063D
920631115
ref: 92063D
JET-MAIN,#102
€ 10.00
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92081
920811761
ref: 92081
SPRING,STARTER PLUNGE
€ 6.00
92081A
920811925
ref: 92081A
SPRING,VACUUM VALVE
€ 16.00
92144
921441349
ref: 92144
SPRING,PILOT AIR SCRE
€ 6.00
