CYLINDER HEAD
ZX400H2 ZXR400 1990 EUROPE FR AR IT

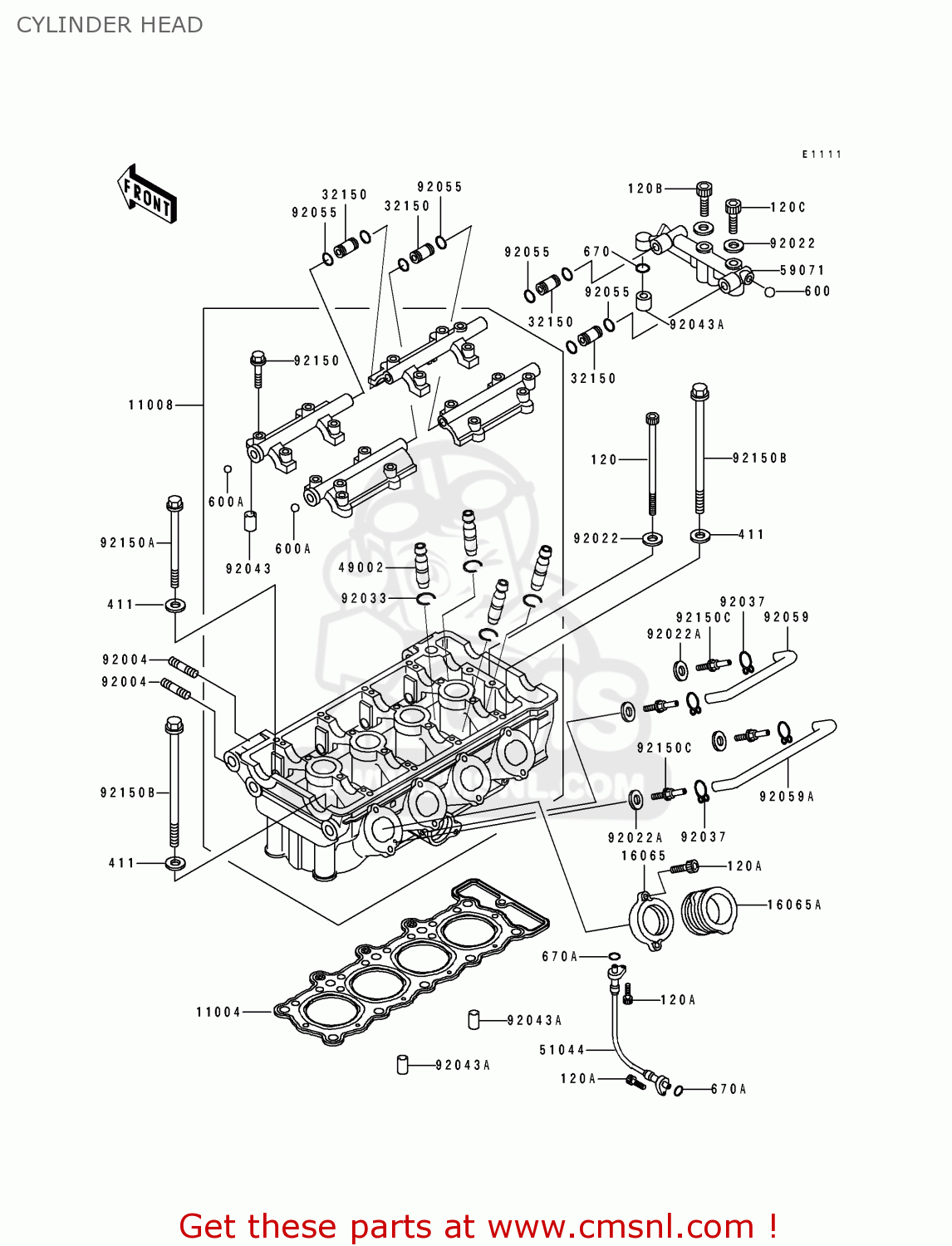

Cylinder head diagram ZX400H2 ZXR400 1990 EUROPE FR AR IT
CYLINDER HEAD ZX400H2 ZXR400 1990 EUROPE FR AR IT
×
prices are in EUR
ref
part #
description
quantity
120
120P06100
ref: 120
BOLT-SOCKET
€ 6.50
120A
120P0620
ref: 120A
BOLT-HEX HEAD,6X20
€ 0.50
120B
120P0655
ref: 120B
BOLT,6X55
€ 3.00
120C
120P0665
ref: 120C
BOLT-SOCKET,6X65
€ 3.00
411
411B0800
ref: 411
WASHER-PLAIN,8MM
€ 0.50
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
600A
600A0800
ref: 600A
BALL-STEEL,1/4
€ 0.50
670
670D1510
ref: 670
O RING,10MM
€ 3.00
670A
670D2010
ref: 670A
O RING,10MM
€ 1.00
11004
110041182
ref: 11004
GASKET-HEAD (NAS)
€ 42.00
11008
110081221
ref: 11008
HEAD-COMP-CYLINDER
€ 1,803.50
16065
160651176
ref: 16065
HOLDER-CARBURETOR
€ 10.00
16065A
160651195
ref: 16065A
HOLDER-CARBURETOR
€ 15.00
32150
321021928
ref: 32150
PIPE,JOINT
€ 4.00
49002
490021091
ref: 49002
GUIDE-VALVE
€ 19.00
51044
510441095
ref: 51044
TUBE-ASSY
€ 98.00
59071
590711130
ref: 59071
JOINT
€ 48.50
92004
92004059
ref: 92004
STUD
€ 4.00
92022
920221827
ref: 92022
WASHER,6X12.8X1.2
€ 3.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92033
920331247
ref: 92033
RING-SNAP
€ 2.00
92037
920371712
ref: 92037
CLAMP
€ 3.00
92043
920431262
ref: 92043
PIN,DOWEL,4.2X6X12
€ 2.50
92043A
920431264
ref: 92043A
PIN,DOWEL,8.2X10X14
€ 0.50
92055
920551339
ref: 92055
RING-O,5.5X1.5
€ 3.00
92059
920591955
ref: 92059
TUBE,4X9X218
€ 6.00
92059A
920591956
ref: 92059A
TUBE,4X9X136
€ 8.00
92150
921501083
ref: 92150
BOLT,6X35
€ 2.50
92150A
921501084
ref: 92150A
BOLT,8X133
€ 4.50
92150B
921501085
ref: 92150B
BOLT,8X139
€ 5.50
92150C
921501161
ref: 92150C
BOLT
€ 6.00
