STEP

ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

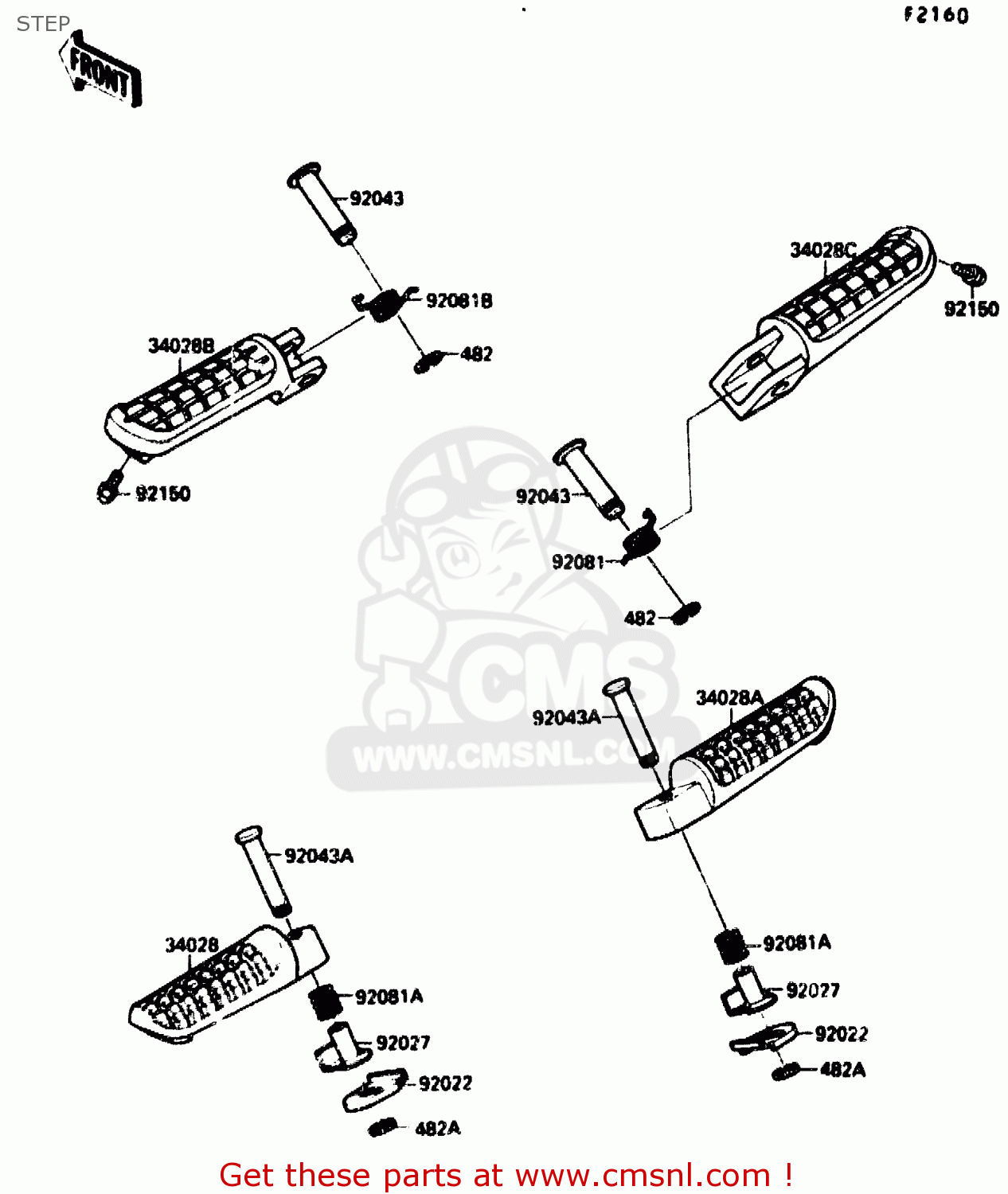

Step diagram ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

34028

340281191
ref: 34028

STEP,RR,LH

€ 65.00

34028A

340281192
ref: 34028A

STEP,RR,RH

€ 65.00

34028B

340281208
ref: 34028B

STEP,FR,LH

€ 71.50

34028C

340281209
ref: 34028C

STEP,FR,RH

€ 76.50

92022

920221507
ref: 92022

WASHER,STEP,RR

€ 3.50

92027

920271732
ref: 92027

COLLAR,STEP

€ 7.00

92043

920431145
ref: 92043

PIN,12X42.5

€ 6.00

92043A

920431238
ref: 92043A

PIN,6X38.5

€ 3.50

92081

920811587
ref: 92081

SPRING,STEP,FR

€ 4.00

92081A

920811612
ref: 92081A

SPRING,STEP,RR

€ 2.50

92081B

920811733
ref: 92081B

SPRING,STEP,FR

€ 4.00

92150

921501114
ref: 92150

BOLT,BANK SENSOR

€ 7.50

482

482L0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

482A

482L5000
ref: 482A

CIRCLIP-TYPE-E,5MM

€ 1.00

STEP

all assemblies
