FRAME FITTING

ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

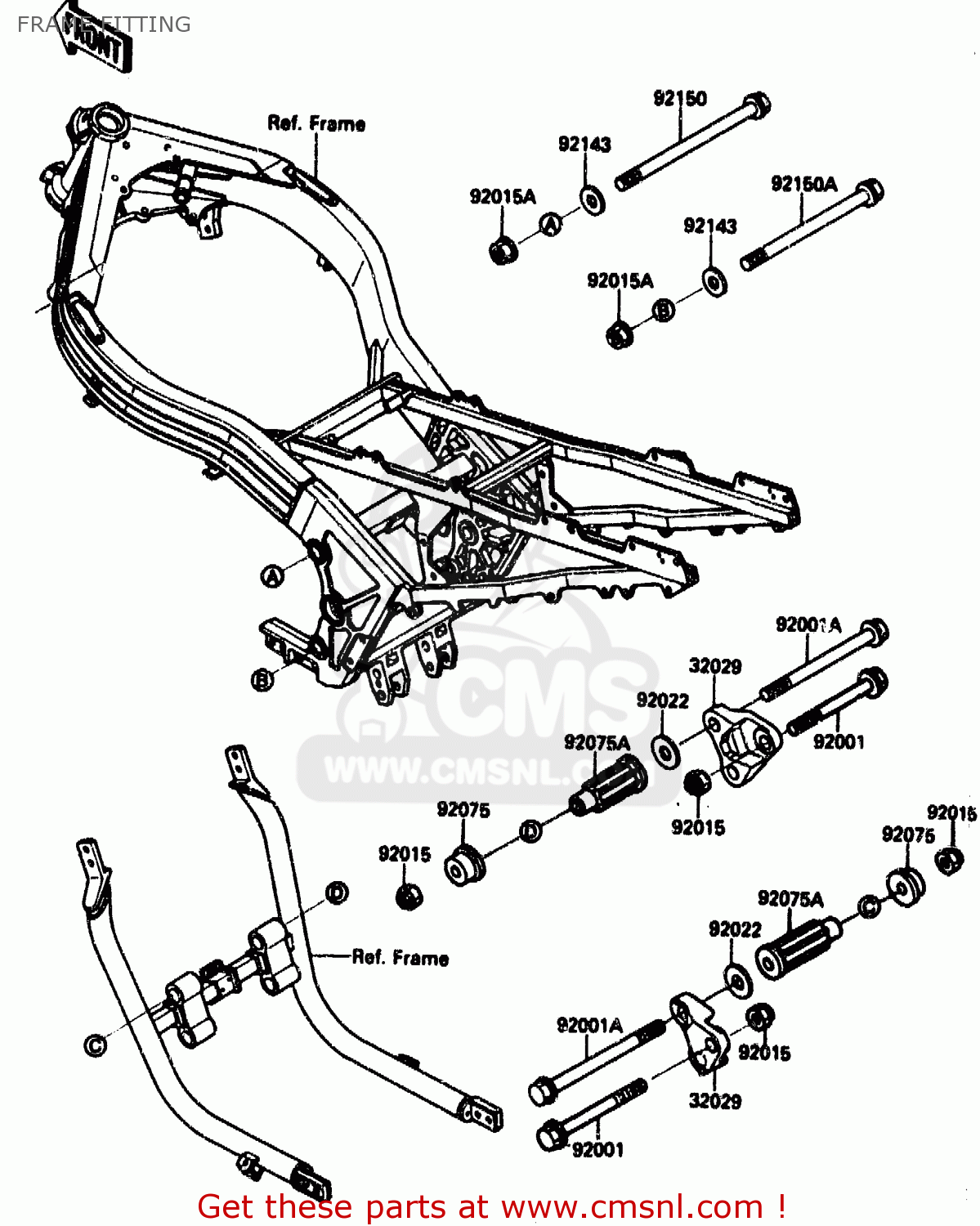

Frame fitting diagram ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

32029

320291615
ref: 32029

BRACKET-ENGINE

€ 43.50

92001

920011617
ref: 92001

BOLT,FLANGED,10X60

€ 6.50

92001A

920011619
ref: 92001A

BOLT,FLANGED,10X85

€ 5.50

92015

920151429
ref: 92015

NUT,10MM

€ 4.50

92015A

920151522
ref: 92015A

NUT,LOCK,10MM

€ 4.50

92022

920221246
ref: 92022

WASHER,10.5X37X1.6

€ 3.50

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751377
ref: 92075A

DAMPER,ENGINE BRACKET

€ 19.50

92143

921431233
ref: 92143

COLLAR,10.5X23X5

€ 5.50

92150

921501117
ref: 92150

BOLT,FLANGED,10X215

€ 13.00

92150A

921501189
ref: 92150A

BOLT,FLANGED,10X220

€ 11.50
