OIL COOLER

ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

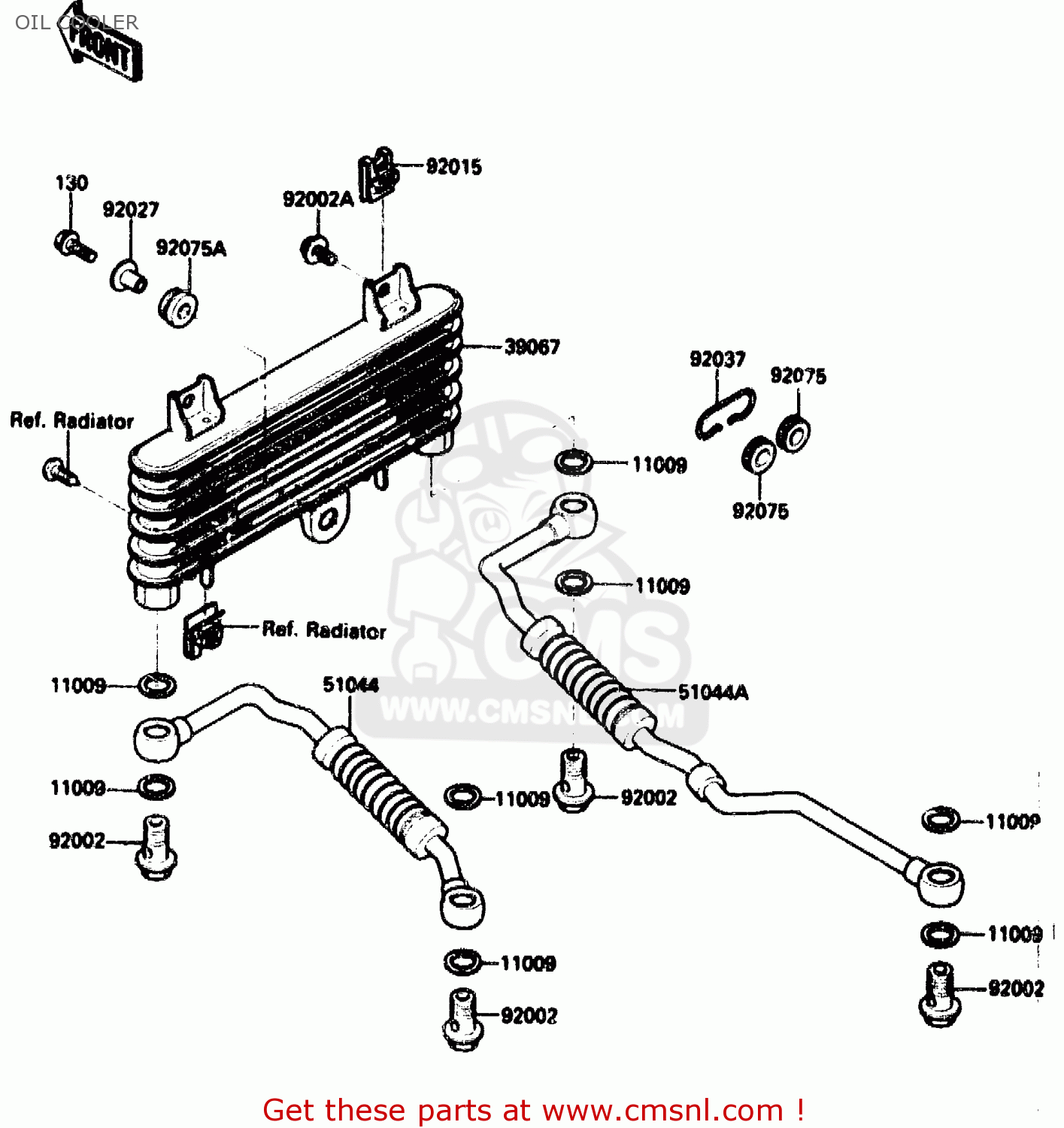

Oil cooler diagram ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

11009

110091461
ref: 11009

GASKET,14X19.5X1.4 (NAS)

€ 3.50

39067

390671051
ref: 39067

COOLER-OIL

€ 395.00

51044

510441091
ref: 51044

TUBE-ASSY,LH

€ 172.50

51044A

510441092
ref: 51044A

TUBE-ASSY,RH

€ 172.50

92002

920011930
ref: 92002

BOLT,14X28.5

€ 6.50

92002A

920021884
ref: 92002A

BOLT,6X12

€ 2.50

92015

920151487
ref: 92015

NUT

€ 3.00

92027

920271651
ref: 92027

COLLAR

€ 2.50

92037

920371905
ref: 92037

CLAMP,OIL COOLER

€ 4.50

92075

920751942
ref: 92075

DAMPER,OIL COOLER

€ 3.50

92075A

92075277
ref: 92075A

DAMPER

€ 1.00

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00
