HEAD LAMP

ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

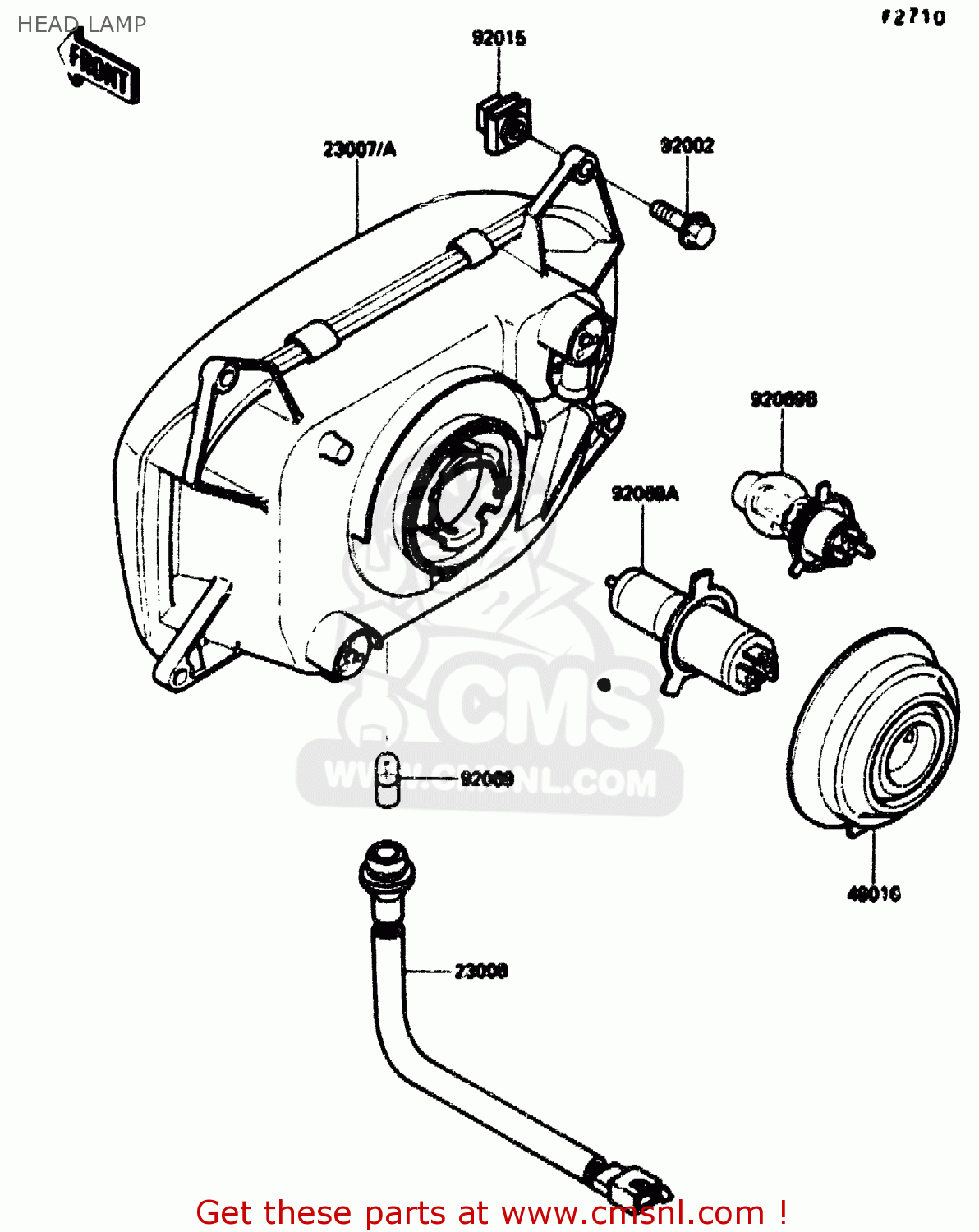

Head lamp diagram ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

23007

230071186
ref: 23007
AR, EU, FR, GR, IT,

LENS-COMP,HEAD LAMP

€ 172.00

23007A

230071187
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 325.00

23008

230081362
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161108
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.00

92002

920021335
ref: 92002

BOLT,6X30

€ 2.50

92015

920151788
ref: 92015

NUT,CLIP,6MM

€ 5.00

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A
AR, EU, GR, IT, NR,

BULB,12V-60155W

€ 15.00

92069B

920691004
ref: 92069B
FR

BULB,12V 60/55W,H4,YE

€ 15.00

all assemblies
