Genuine ZX Kawasaki Parts delivered quickly!


RADIATOR (RESERVOIR)

ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

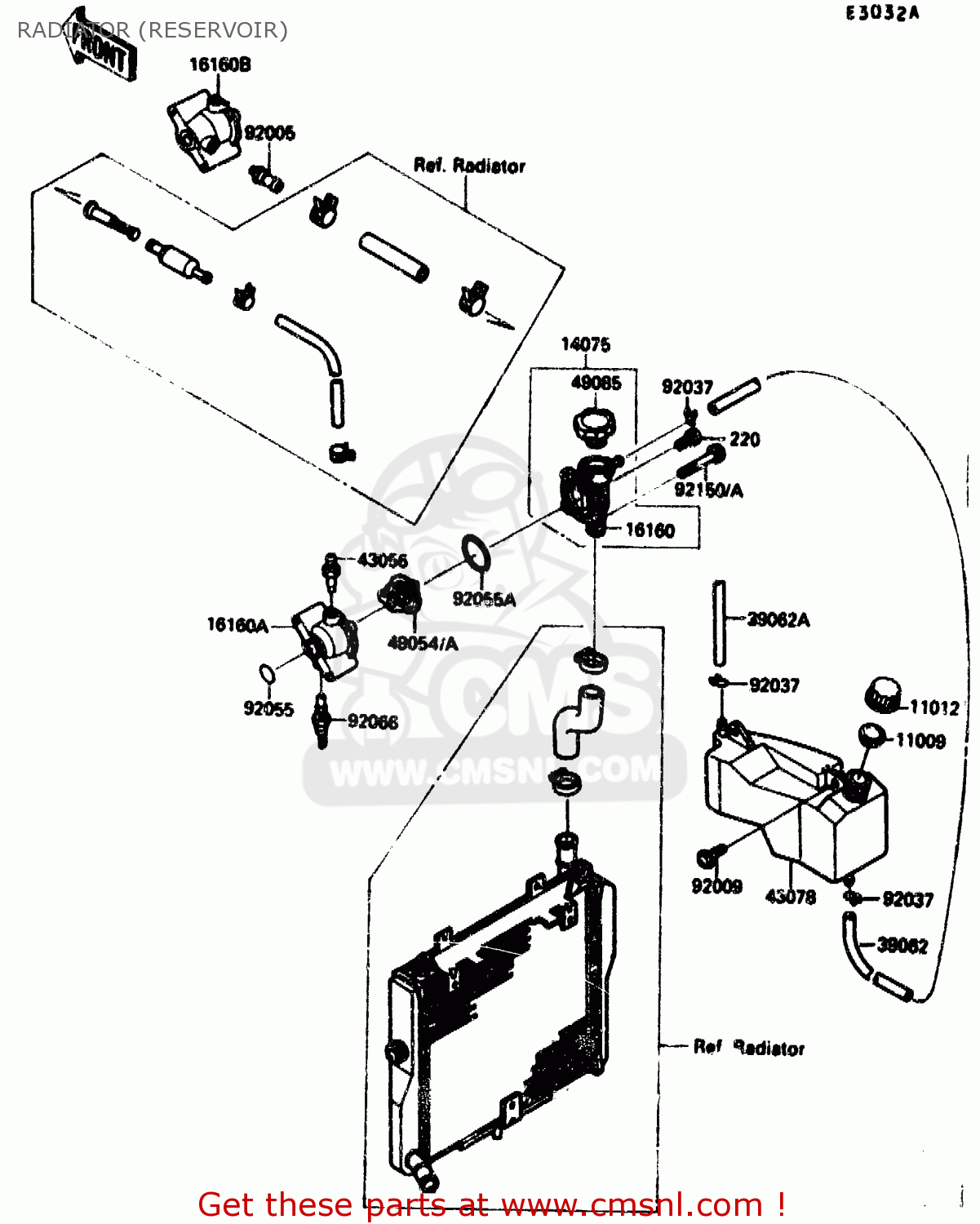

Radiator (reservoir) diagram ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

RADIATOR (RESERVOIR) ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD
RADIATOR (RESERVOIR) ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD
RADIATOR (RESERVOIR) ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14075
140751068
ref: 14075
AR, EU, FR, GR, IT,
CAP-ASSY
140751068
€ 134.00
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
161601116
€ 134.00
16160A
161601147
ref: 16160A
AR, EU, FR, GR, IT,
BODY,THERMOSTAT
161601147
€ 22.00
16160B
161601149
ref: 16160B
UK
BODY,THERMOSTAT,LWR
€ 46.00
39062
390621280
ref: 39062
HOSE-COOLING,5.5X10.5
390621280
€ 25.00
39062A
390621291
ref: 39062A
HOSE-COOLING,5.5X10.5
390621291
€ 11.50
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781090
ref: 43078
RESERVOIR
430781090
€ 40.00
49054
490541051
ref: 49054
AR, EU, FR, GR, IT,
THERMOSTAT
490541051
€ 44.50
49054A
490541060
ref: 49054A
UK
THERMOSTAT
490541060
€ 33.00
49085
490851054
ref: 49085
CAP-ASSY-PRESSURE
490851054
€ 39.50
92005
920051176
ref: 92005
UK
FITTING
€ 7.00
92009
920091308
ref: 92009
SCREW,6X14
€ 2.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055091
ref: 92055
0 RING
92055091
€ 4.00
92055A
92055112
ref: 92055A
O RING, 53.5 M/M
92055112
€ 4.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
920661183
€ 38.00
92150
921501071
ref: 92150
AR, EU, FR, GR, IT,
BOLT,SOCKET,5X55
€ 1.00
92150A
921501179
ref: 92150A
UK
BOLT,SOCKET,5X30
€ 2.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
