FRAME

ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

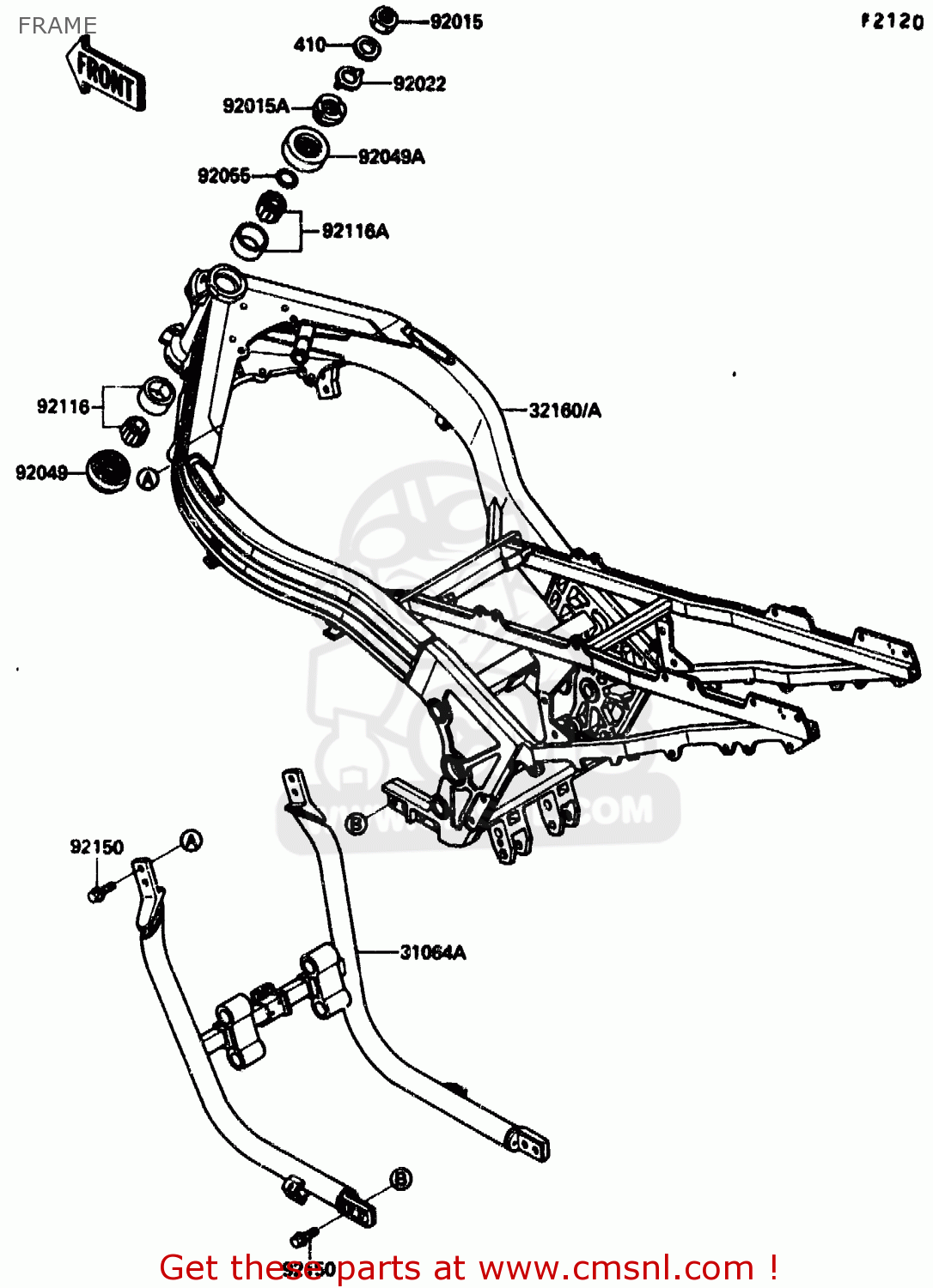

Frame diagram ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

31064A

310641100CE
ref: 31064A

PIPE-COMP,SIDE FRAME,

€ 424.00

32160

320021994CE
ref: 32160
AR, EU, FR, GR, IT,

FRAME-COMP,SILVER NO.

€ 1,443.50

32160A

321601022CE
ref: 32160A
SP

FRAME-COMP,SILVER

€ 1,443.50

92015

920151404
ref: 92015

NUT,18MM

€ 15.50

92015A

920151546
ref: 92015A

NUT,25MM,T=12

€ 14.50

92022

920221555
ref: 92022

WASHER,CLAW,18.5X30X2

€ 4.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491313
ref: 92049A

SEAL-OIL,XMH33 70 6.4

€ 14.50

92055

920551459
ref: 92055

RING-O,ID=24.5

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161056
ref: 92116A

BEARING-ROLLER

€ 48.50

92150

921501174
ref: 92150

BOLT,FLANGED,10X30

€ 3.50

410

410F1800
ref: 410

W-PLAIN-S

€ 3.00

FRAME

all assemblies
