MUFFLER
ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD

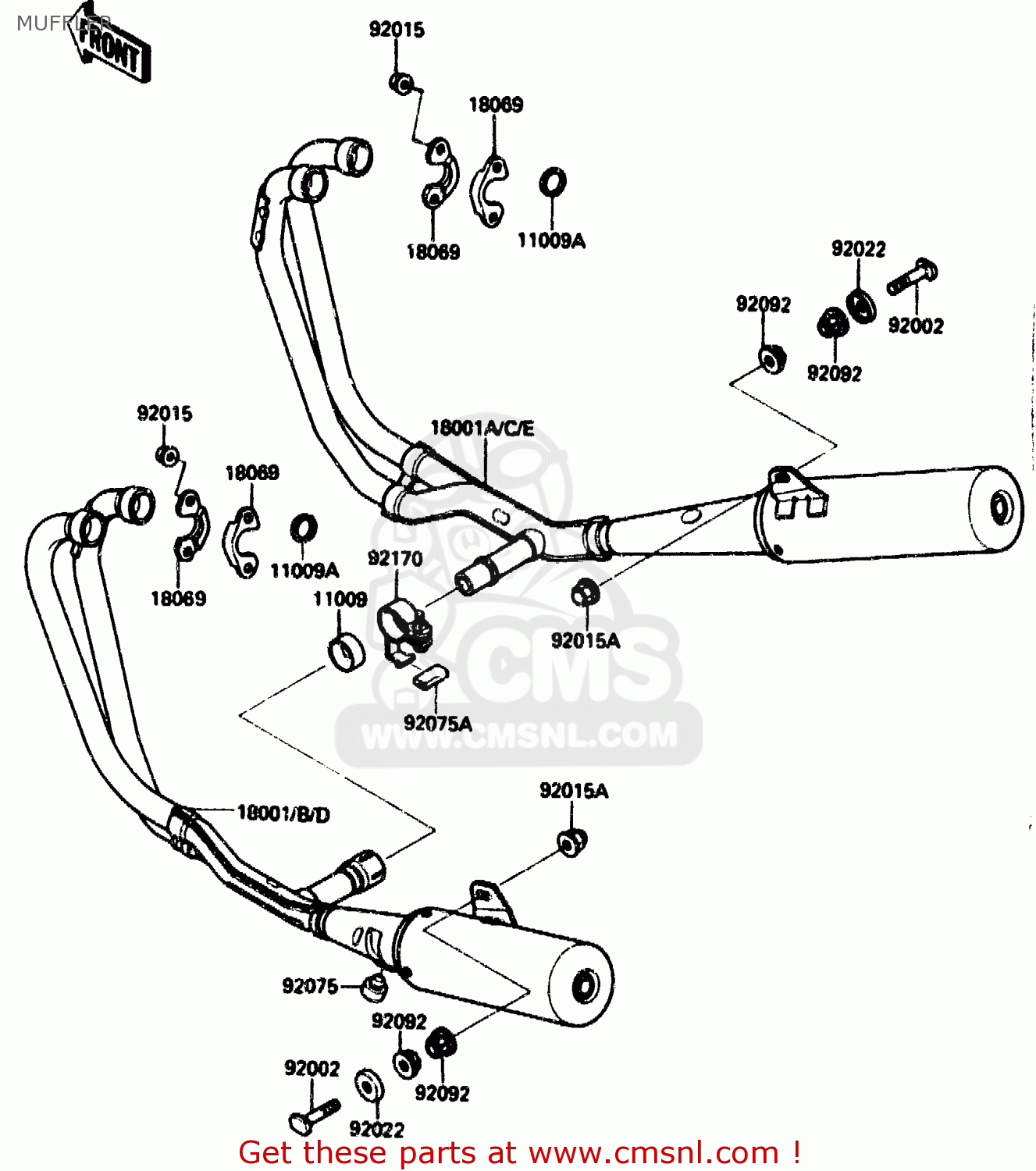

Muffler diagram ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD
MUFFLER ZX1000B1 1988 EUROPE UK FR AR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091751
ref: 11009
GASKET (NAS)
€ 22.00
11009A
18067013
ref: 11009A
GASKET-EXHAUST PIPE (NAS)
€ 7.00
18001
180011768
ref: 18001
EU, FR, GR, IT, NR,
MUFFLER,LH
€ 611.50
18001A
180011769
ref: 18001A
EU, FR, GR, IT, NR,
MUFFLER,RH
€ 572.00
18001B
180011772
ref: 18001B
AR, ST
MUFFLER,LH
€ 572.00
18001C
180011773
ref: 18001C
AR, ST
MUFFLER,RH
€ 572.00
18001D
180011774
ref: 18001D
SD
MUFFLER,LH
€ 587.50
18001E
180011775
ref: 18001E
SD
MUFFLER,RH
€ 587.50
18069
180691054
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.50
92002
920021939
ref: 92002
BOLT,10X55
€ 5.50
92015
920151380
ref: 92015
NUT,LOCK,8MM
€ 3.00
92015A
920151749
ref: 92015A
NUT,CAP,10MM
€ 2.50
92022
920221355
ref: 92022
WASHER
€ 3.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
920751446
ref: 92075A
DAMPER,SIDE COVER
€ 3.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
92170
921701053
ref: 92170
CLAMP,MUFFLER
€ 16.00
